ClearWater Lights Glenda Installation Manual

Led light kit dimmable for victory kingpin, vegas, hammer & jackpot
Hide thumbs Also See for Glenda:

Advertisement

Quick Links

Download this manual

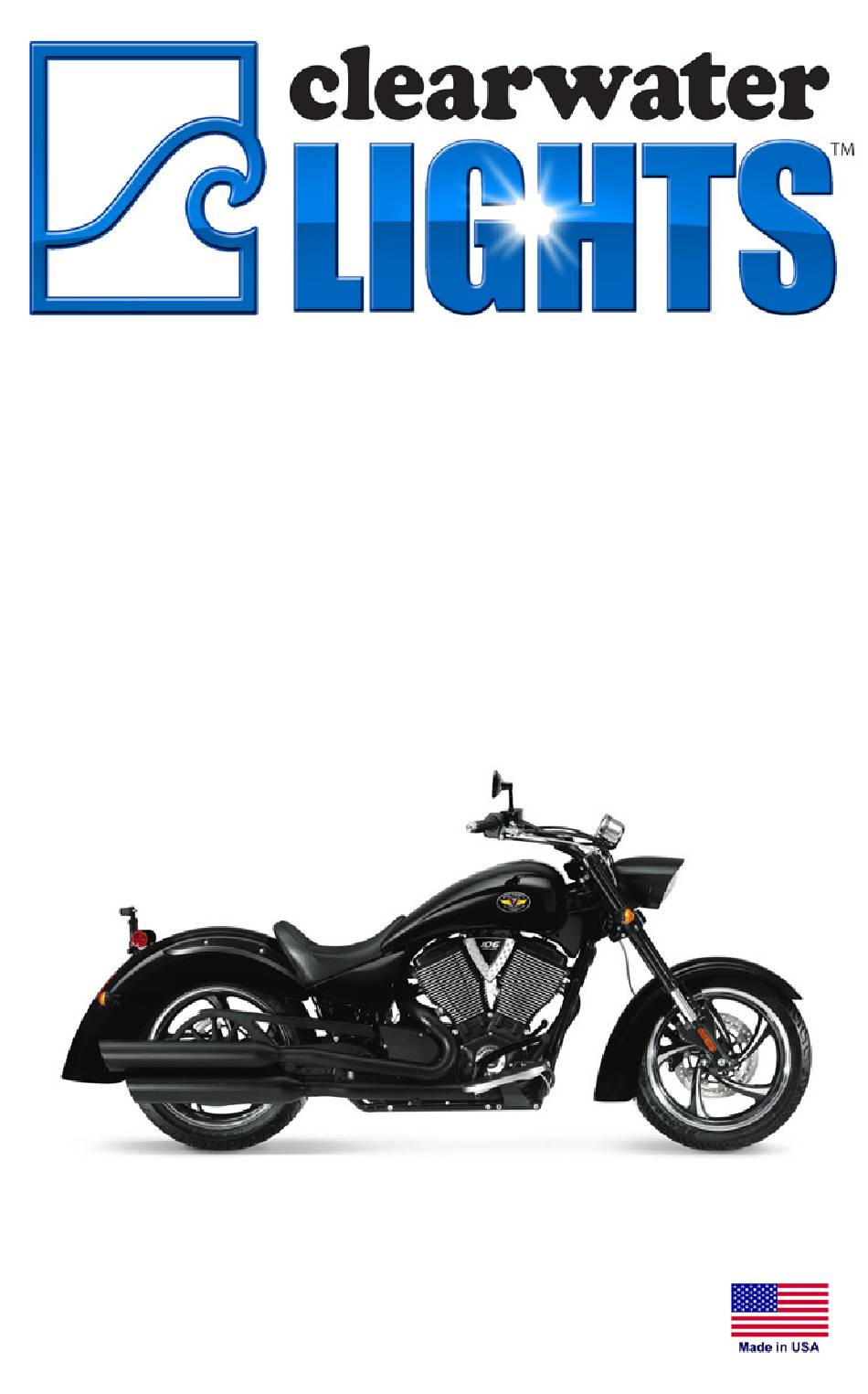

Installation Manual
Victory Kingpin, Vegas, Hammer & Jackpot
Glenda LED Light Kit
Dimmable
Patent Pending

Advertisement

loading
Need help?

Need help?

Do you have a question about the Glenda and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearWater Lights Glenda

Summary of Contents for ClearWater Lights Glenda

  • Page 1 Installation Manual Victory Kingpin, Vegas, Hammer & Jackpot Glenda LED Light Kit Dimmable Patent Pending...
  • Page 2 Otherwise, you will end up with a dead battery. Nobody likes that. Clearwater lights include a simple and high quality means of connecting to the motorcycle’s electrical system. “Posi” devices made by Posi-Products are used to securely and safely make electrical connections on the bike.
  • Page 3 Step 2: Mounting The Lights Different Mounting Options: • There are two different mounting options that can be used on the Victory Kingpin, Vegas, Hammer and Jackpot bikes. The options are dependant on user preference and available mounting space. Fork Mount Crash Bar Mount Page 3...
  • Page 4 Step 2: Mounting The Lights Crash Bar Mount: • Attach the lights to the crash bars using the provided crash bar mounting clamps as shown in the exploded view and picture below. • Do not mount in a position that interferes with your legs or feet while riding. •...
  • Page 5 Step 2: Mounting The Lights Fork Mount: • Pre-assemble the lights, mounting bracket and spacers with new bolts. • Remove the front fender bolt and mount included bracket with new hardware. See image below. • Gently screw all bolts in hand tight. Inspect the bolt length and spacer alignment before tightening the bolts.
  • Page 6 Step 3: Mounting The Volume Control Knob Mounting The Volume Control Knob: (Handlebar Mount) • Mount the volume control knob to handlebar by using supplied bracket, bolt and clamp. • Route wires from lights and volume control knob bracket to area under left side of forks.
  • Page 7 Step 4: Wiring Wire Routing: • Be sure to route wires so that they cannot become tangled or caught in either a suspension part or steering part. Check movement of both steering and suspension before riding the bike. • It is sometimes helpful to follow existing wire routing. •...

  • Page 8: Electrical Connections

    Step 4: Wiring Electrical Connections: • Connect to power, refer to image below & diagram on next page. (A) Connect the fuse holder to the low beam (yellow / green stripe wire) using either a Posi-tap or male quick connector. (B) Connect the ground (black wires) to black wire B using a posi-tap or a male quick connector.
  • Page 9 Step 4:Wiring Page 9...
  • Page 10 Step 5: Alignment Aligning the Lights: (Fork mount shown) Ask an assistant to help you with this procedure. Make sure the bike is on level ground and have an assistant sit on the bike. With a right angle board or object, position the board on the floor and slide it up to the light. The goal is to adjust the lights so that the light is level with the ground.

  • Page 11: Helpful Hints

    Helpful Hints: Using a Drip Loop: • Though our lights are sealed for ultimate all weather use, sometimes water sneaks by. To make sure this doesn’t happen, we highly suggest using a drip loop. When installing the wiring to your lights, use a drip loop as shown below.
  • Page 12 Thank you for purchasing your Clearwater lights. We hope this product will help make you a safer rider. Please feel free to send us comments or suggestions at any time. We learn from you. Visit our website for more exciting products such as our flashlights and our 36W LED Krista light to help you see better at night.
