ClearWater Lights Glenda Installation Manual

Led light kit for bmw k1600gt
Hide thumbs Also See for Glenda:

Advertisement

Quick Links

Download this manual
Installation Manual
BMW K1600GT
Glenda / Darla
LED Light Kit
Dimmable

Advertisement

loading
Need help?

Need help?

Do you have a question about the Glenda and is the answer not in the manual?

Questions and answers

Related Manuals for ClearWater Lights Glenda

Summary of Contents for ClearWater Lights Glenda

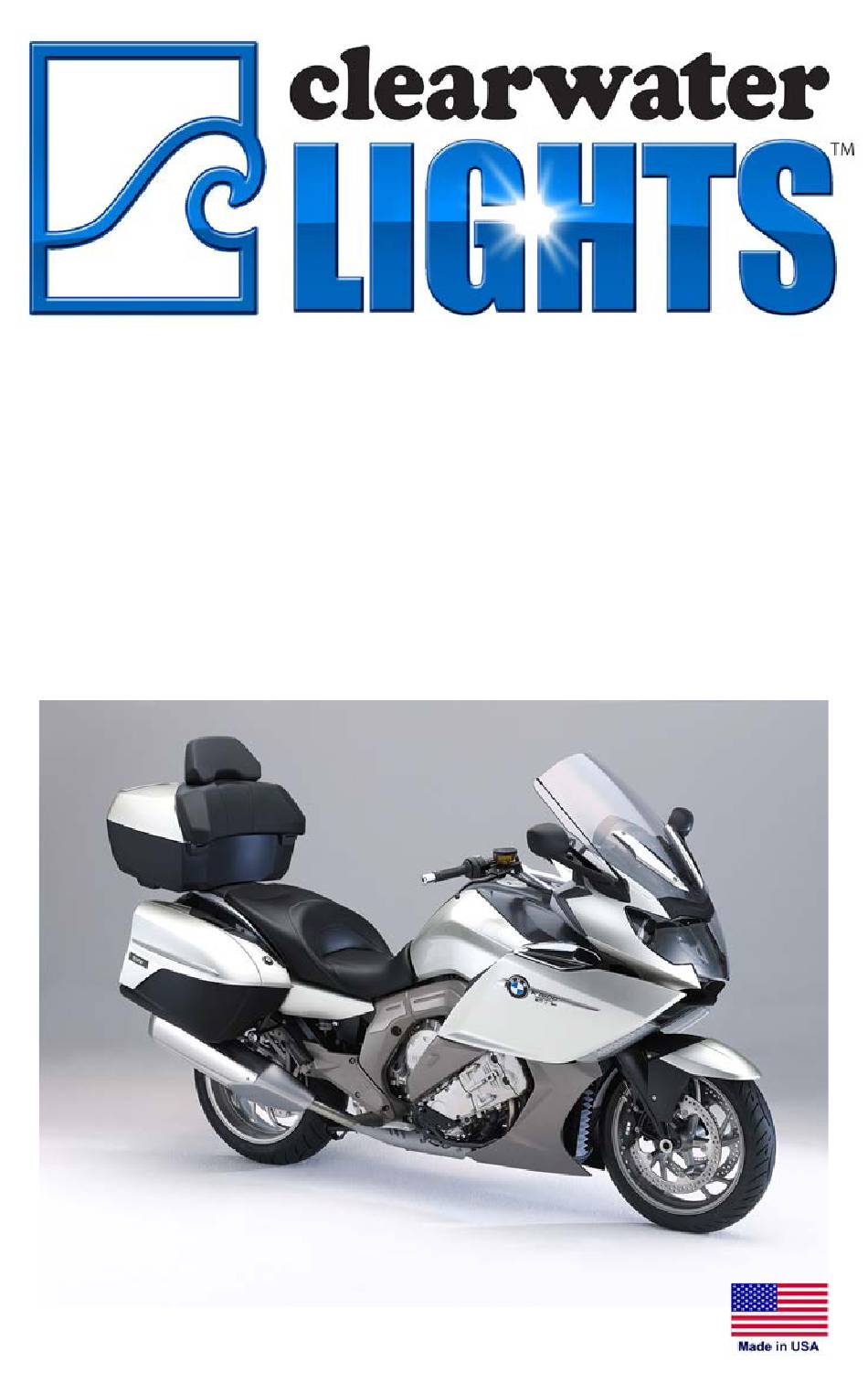

  • Page 1 Installation Manual BMW K1600GT Glenda / Darla LED Light Kit Dimmable...
  • Page 2 (916) 852-7029. Please take the time to review the included instructions. Installation of the new Clearwater Lights is straightforward. But, be sure to follow some of the suggestions to keep the installation safe and reliable. If you have any questions or comments, please feel free to contact us.

  • Page 3: Important Things To Remember

    Open body panels Mount the lights and brackets. Disassamble the side panel. Remove fuse from Clearwater Lights wiring harness Mount the wiring harness to a secure location. Connect the CANopener Connect the lights and CANopener to their corresponding plugs on the wiring harness.
  • Page 4 Function Command Modes Darla/ Press(TSC), then Rotate WonderWheel to select 10 Glenda dim- hold control wheel brightness levels (10% to 100%) left for 2 seconds To adjust brightness on High Beam and rotate to adjust Mode, turn on high beam first...
  • Page 5 Mouting CANopener • Remove the seat from the bike and set aside. • Locate the module under the seat, unplug the wiring harness from it and plug your Clearwater CANopener in it’s place. Then plug the wiring harness into the CANopener. •...
  • Page 6 Step 1: Disassembly Gas Tank Shroud: In order to remove the gas tank shroud plastics you must flip the plastic back as shown to get to the bolts. Follow images continued on the next page. Page 6...
  • Page 7 Step 1: Disassembly Your bike should look like this after removing the gas tank shroud plastics. Re-Assembly: • Follow the directions in reverse order to reassemble your bike. Page 7...
  • Page 8 Step 2: Mounting The Lights Fender Mount Overview: (detailed diagrams on next page) • One side at a time, remove both fender bolts. Be sure to keep fender from hanging in a fashion that damages it. Use a wire tie or piece of wire to hold the fender until you are ready to install the new bolts.
  • Page 9 BLACK wire from the lights (3 wires). • Use a Posi-twist to connect RED wire from the harness relay to the two RED in Glenda, WHITE in Darla wires from lights (3 wires). • Plug the Trident Adapter into the Data Cable •...
  • Page 10 Step 4: Wiring Using a Drip Loop • Though our lights are sealed for ultimate all weather use, sometimes water sneaks by. To make sure this doesn’t happen, we highly suggest using a drip loop. When installing the wiring to your lights, use a drip loop as shown below. This will keep water from dripping directly into the light and instead fall off before it can reach the back of the body.
  • Page 11 Step 5: Aligning the Lights Alignment: • Ask an assistant to help you with this procedure. Make sure the bike is on level ground and have an assistant sit on the bike. With a right angle board or object, position the board on the floor and slide it up to the light.
  • Page 12 Clearwater CANopener operation and features Summary of features Clearwater Lights dimming feature • Independent dimming of two sets of Clearwater lights using BMW WonderWheel (handlebar mounted rotary dimmer included for non- WonderWheel bikes) • Brightness adjustable in 10 steps from 10-100% Automatic Dimmer •...
  • Page 13 Cancel (TSC) switch once before tilting the Wonderwheel Left or Right for dimming. Press the WonderWheel to the LEFT for two seconds to engage the Darla/Glenda channel dimmer, or press it to the RIGHT for two seconds to engage the Erica/Krista channel dimmer.
  • Page 14 • Mode 1 – all Clearwater lights turn on 100% when high beam or flash- to-pass is pressed. Erica/Krista use the day/night dimmed setting on low beam. Erica/Krista lights must be turned on. (default on ver 1.5 or greater) •...

  • Page 15: Factory Default Reset

    To reset the CANopener to the factory settings, hold the left turn signal switch and press the flash-to-pass button six times within six seconds. All factory preset dimmer levels and modes will be selected. A successful reset is indicated by five flashes of the Clearwater lights. Page 15...
  • Page 16 Thank you for purchasing our Clearwater lights. We hope this product will help make you a safer rider. Please feel free to send us comments or suggestions at any time. We learn from you. Visit our website for more exciting products. Ride safe! Sincerely, Glenn and the team at Clearwater.

This manual is also suitable for:

Darla
