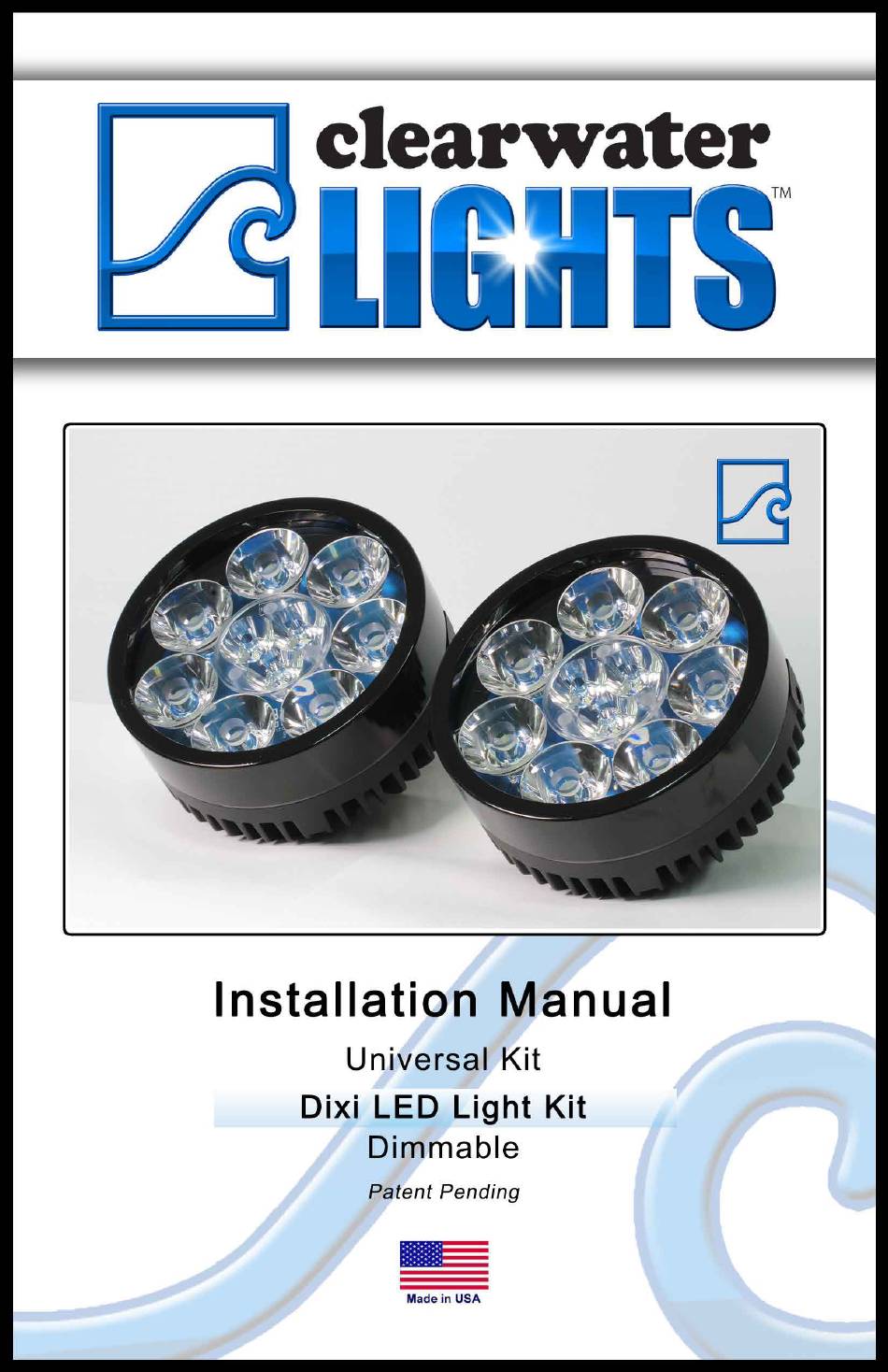

- Page 2 Step 1: Parts List and Bike Preparation Please be sure to read our instructions thoroughly before attempting installation. • Check Parts list below with your kit to be sure all parts are handy. If something is missing, please call us at (916) 852-7029. Please take the time to review the included instructions.
- Page 3 Step 1: Parts List & Bike Preparation Introducing the new Dixi, Clearwater Lights’ most powerful (consumer) light yet! This light consists of two separate light sets built into one housing. They are avail- able in single unit sets or as a pair.
- Page 4 Step 2: Mounting The Lights / Crash Bar Mount Mounting The Lights: (Crash Bar) Mounting the Lights to the Crash Bar is very simple. Mount bracket loosely with the supplied parts. Locate where you would like the light to be pointing and the orientation of either on top or hanging below the bar.
- Page 5 Step 3: Mounting The Volume Control Knob There are three ways to mount the volume control knob: 1) attaching it to the handlebars with the provided M5x30mm screw and #7 spacer (most BMW’s), 2) drilling a hole in the fairing, or 3) mounting to a handlebar clamp. *NOTE* The hardware for options 2 &...
- Page 6 Step 4: Wiring Wire Routing: (Please consult owners manual for wiring diagram and color codes) • Be sure to route wires so that they cannot become tangled or caught in either a suspension part or steering part. Check movement of both steering and suspension before riding the bike.
- Page 7 Step 4: Wiring Page 7 Page 6...
- Page 8 Do Not Kink The Grommet Do Not Kink The Grommet To maintain the integrity of the water sealling grommet, do not kink, deform or put pressure on the grommet when dressing the wires during install of Clearwater Lights. Page 8 Page 7...
- Page 9 Posi-Products Installation Instructions: ...
- Page 10 Dixi Operation Controlling the Lights: The Dixi has (2) groups of lights. Depending on the 3-way switch position, optic group “A” and “B” can be controlled independently or together. See Fig. 1 below. Fig. 1 Fig. 1 For the 3-way switch, it is important to realize that Positions “1” and “3” from Fig.
- Page 11 Notes: Page 11 Page 10...
- Page 12 As of 8/21/20...
