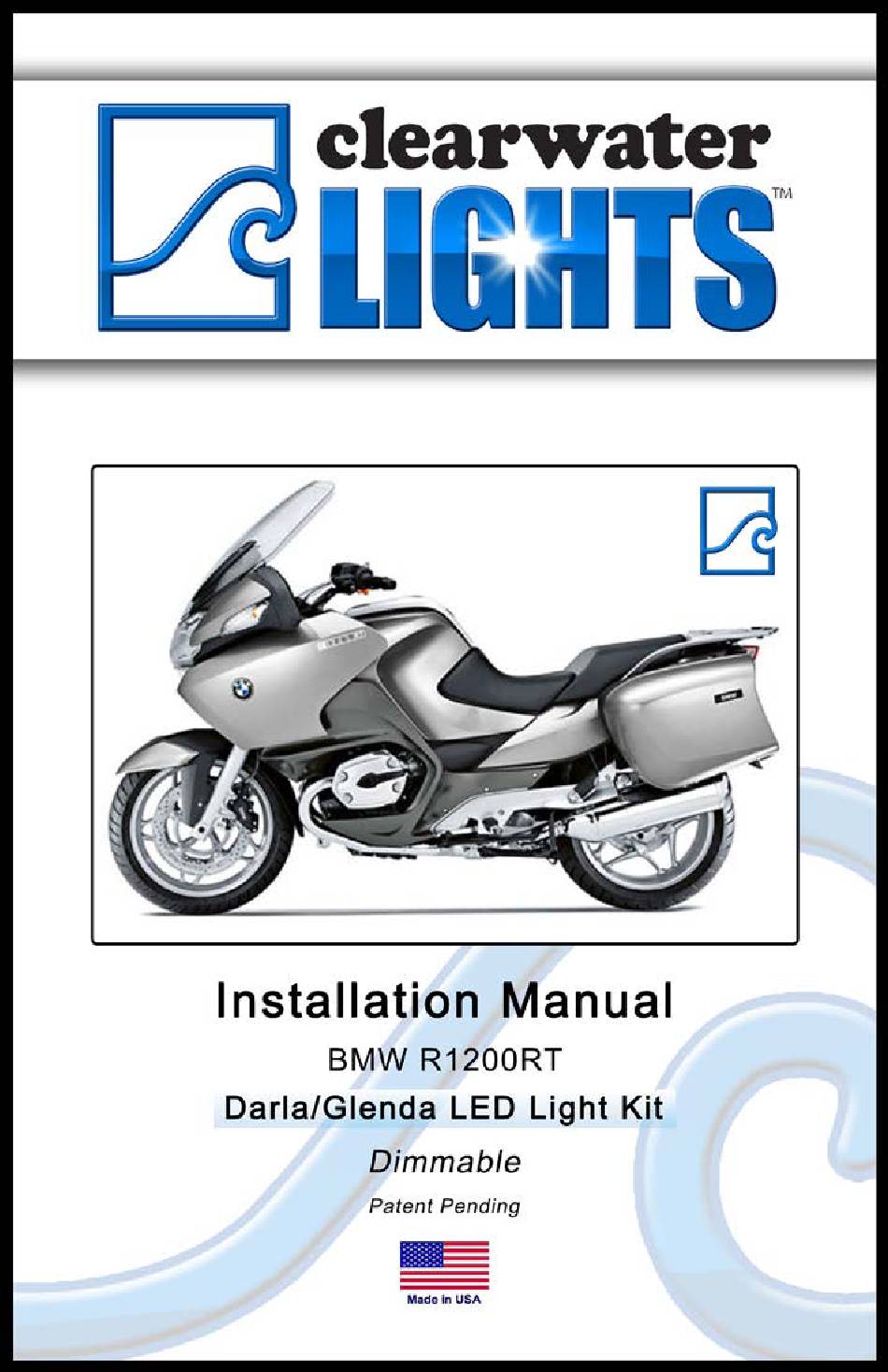

ClearWater Lights Glenda Installation Manual

Led light kit dimmable
Hide thumbs Also See for Glenda:

Advertisement

Quick Links

Download this manual See also: Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Glenda and is the answer not in the manual?

Questions and answers

Related Manuals for ClearWater Lights Glenda

Summary of Contents for ClearWater Lights Glenda

  • Page 2 Otherwise, you will end up with a dead battery. Nobody likes that. Clearwater lights include a simple and high quality means of connecting to the motorcycle’s electrical system. “Posi” devices made by Posi-Products are used to securely and safely make electrical connections on the bike.
  • Page 3 • Pre-assemble the lights and mounting bracket with new bolts. Use the M6 x 12 mm bolts and M6 washers to secure Glenda/Darla to the bracket, and the factory fender bolts to attach the bracket assembly to the fender.
  • Page 4 Bike Dissassembly Removing Body Panels: • 1 Torx near speaker (A), 1 Torx at knee position (B), 2 Torx inside front wheel cowl (C) • After screws are removed from both left and right side body panels as pictures show, with fingers lift out the speaker cover while rotating panel to the left.

  • Page 5: Wiring Overview

    Wiring (Overview) Wire Routing: • Leave body panels off until the wiring is complete. • Be sure to route wires so that they cannot become tangled or caught in either a suspension part or steering part. Check movement of both steering and suspension before riding the bike.

  • Page 6: Wiring Procedure

    Wiring Wiring Procedure: Locate the Headlight wiring harness under the dash, right side, this is where you will be tapping in for high beam trigger and switched power. Depress tab on top of connector and pull straight back to disconnect. Body Panel Removal: Start by removing the passenger and driver seat.
  • Page 7 Wiring Feed the CANbus power cable harness in the space between the side panel and the tank. Image to the left shows the cable exiting the front of the side panel by the handlebars. This shows the cable harness exiting the bottom of the side panel by the battery.
  • Page 8 Wiring Connect the CANbus ring connectors to the battery and complete the wiring to the Canbus relay as shown in the schematic on page 8. Tuck the completed wiring under the left hand side of the dash and tie-wrap to the support bar as shown below.
  • Page 9 Wiring Page 9 Page 8...
  • Page 10 Mounting The Volume Control Knob Mounting The Volume Control Knob: (Fairing Mount) We recommend that you mount the volume control knob in the side fairing as shown below, but you can mount the volume control knob wherever is most convenient. To mount volume control knob in left side faring location, follow these instructions.
  • Page 11 Alignment / Using a Drip Loop Aligning the Lights: Ask an assistant to help you with this procedure. Make sure the bike is on level ground and have an assistant sit on the bike. With a right angle board or object, position the board on the floor and slide it up to the light. The goal is to adjust the lights so that the light is level with the ground.

This manual is also suitable for:

Darla
