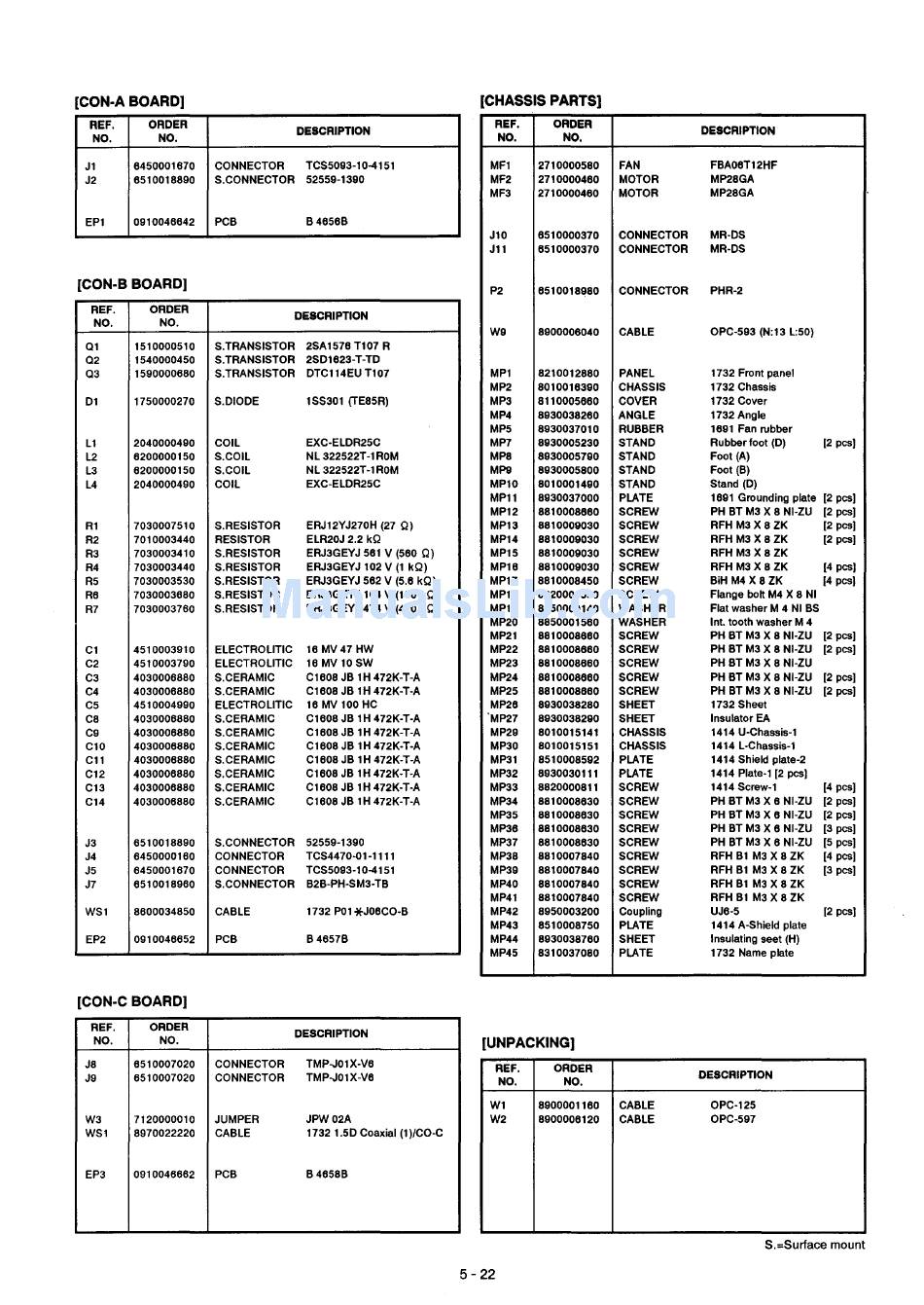

[CON-A BOARD]
REF.
ORDER
DESCRIPTION
NO.
NO.
Jl 6450001670 CONNECTOR
TCS5093-10-4151
J2
6510018890 S.CONNECTOR
52559-1390
EPl
0910046642 PCB B4656B
[CON-B BOARD]
REF. ORDER
DESCRIPTION
NO. NO.
01 1510000510 S.TRANSISTOR
2SA1576 Tl07 R
02 1540000450 S.TRANSISTOR
2SD1623-T-TD
03 1590000680 S.TRANSISTOR DTCl14EU Tl07
Dl
1750000270 S.DIODE lSS301 (TE85R)
11 2040000490 COIL EXC-ELDR25C
L2
6200000150 S.COIL NL322522T-1ROM
L3
6200000150 S.COIL NL322522T-1ROM
L4
2040000490 COIL EXC-ELDR25C
Rl 7030007510 S.RESISTOR
ERJ12YJ270H (27 Q)
R2
7010003440 RESISTOR ELR20J 2.2 kQ
R3
7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Q)
R4 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R5 7030003530 S.RESISTOR
ERJ3GEYJ 562 V (5.6 kQ)
R6 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R7
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
Cl
4510003910 ELECTROLITIC 16 MV47 HW
C2
4510003790 ELECTROLITIC 16 MV 10SW
C3 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C4
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C5 4510004990 ELECTROLITIC 16 MV 100 HC
C8
4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C9
4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
Cl0
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cll
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C12 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C13 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C14
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
J3
6510018890 S.CONNECTOR 52559-1390
J4
6450000160 CONNECTOR TCS4470-o1-1111
J5 6450001670 CONNECTOR
TCS5093-10-4151
J7 6510018960 S.CONNECTOR B2B-PH-SM3-TB
WSl
8600034850 CABLE 1732 POl *J06CO-B
EP2
0910046652 PCB B 4657B
[CON-C BOARD]
REF. ORDER
DESCRIPTION
NO.
NO.
J8 6510007020 CONNECTOR
TMP.J01X-V6
J9 6510007020 CONNECTOR
TMP.J01X-V6
W3
7120000010
JUMPER
JPW02A
WSl
8970022220
CABLE
1732 1.5D Coaxial (l)/CO-C
EP3 0910046662 PCB B 4658B
[CHASSIS PARTS]
REF. ORDER
DESCRIPTION
NO. NO.
MFl 2710000580 FAN FBA06T12HF
MF2
2710000460
MOTOR
MP28GA
MF3
2710000460
MOTOR
MP28GA
Jl0 6510000370 CONNECTOR MR-DS
Jl1 6510000370 CONNECTOR MR-DS
P2 6510018980 CONNECTOR PHR-2
W9 8900006040 CABLE OPC-593 (N:13 L:50)
MPl
8210012880
PANEL
1732 Front panel
MP2 8010016390 CHASSIS
1732 Chassis
MP3 8110005660 COVER 1732 Cover
MP4
8930038260
ANGLE
1732 Angle
MP5 8930037010 RUBBER 1691 Fan rubber
MP7 8930005230 STAND Rubber foot (D) [2 pes)
MP8 8930005790 STAND
Foot (A)
MPO 8930005800 STAND Foot (B)
MP10 8010001490 STAND Stand (D)
MP11
8930037000
PLATE
1691 Grounding plate [2 pes)
MP12 8810008660 SCREW
PH BT M3 X 8 NI-ZU [2
pes)
MP13
8810009030
SCREW
RFH M3 X 8 ZK [2 pes)
MP14 8810009030 SCREW RFH M3 X8ZK [2 pes)
MP15 8810009030 SCREW RFH M3 X 8 ZK
MP16 8810009030 SCREW RFH M3 X 8 ZK [4 pes)
MP17
8810008450
SCREW
BiH M4 X 8 ZK [4 pes)
MP18
8820000530
SCREW
Flange bolt M4 X 8 NI
MP19 8850000140 WASHER Flat washer M 4 NI BS
MP20 8850001560 WASHER Int. tooth washer M 4
MP21 8810008660 SCREW
PH BT M3 X 8 NI-ZU [2 pes)
MP22 8810008660 SCREW PH BT M3 X 8 NI-ZU [2 pes)
MP23 8810008660 SCREW PH BT M3 X 8 NI-ZU
MP24 8810008660 SCREW
PH BT M3 X 8 NI-ZU [2
pes)
MP25 8810008660 SCREW
PH BT M3 X 8 NI-ZU [2
pes)
MP26 8930038280 SHEET 1732 Sheet
'MP27
8930038290 SHEET Insulator EA
MP29 8010015141 CHASSIS 1414 U-Chassis-l
MP30 8010015151 CHASSIS 1414 L-Chassis-l
MP31 8510008592 PLATE 1414 Shield plate-2
MP32
8930030111
PLATE
1414 Plate-l [2 pes)
MP33
8820000811
SCREW
1414 Screw-l [4 pes)
MP34 8810008630 SCREW PH BT M3 X 6 NI-ZU [2 pes)
MP35 8810008630 SCREW PH BT M3 X 6 NI-ZU [2 pes)
MP36 8810008630 SCREW PH BT M3 X 6 NI-ZU [3 pes)
MP37 8810008630 SCREW PH BT M3 X 6 NI-ZU [5 pes)
MP38 8810007840 SCREW RFH B1 M3 X 8 ZK [4 pes)
MP39
8810007840
SCREW
RFH Bl M3 X 8 ZK [3 pes)
MP40 8810007840 SCREW RFH Bl M3 X 8 ZK
MP41 8810007840 SCREW RFHBl M3X8ZK
MP42 8950003200 Coupling UJ6-5 [2 pes]
MP43 8510008750 PLATE 1414 A-Shield plate
MP44 8930038760 SHEET Insulating seet (H)
MP45 8310037080 PLATE
1732 Name plate
[UNPACKING]
REF. ORDER
DESCRIPTION
NO. NO.
Wl 8900001160 CABLE OPC-125
W2
8900006120
CABLE
OPC-597
S.=Surface mount
5 - 22
