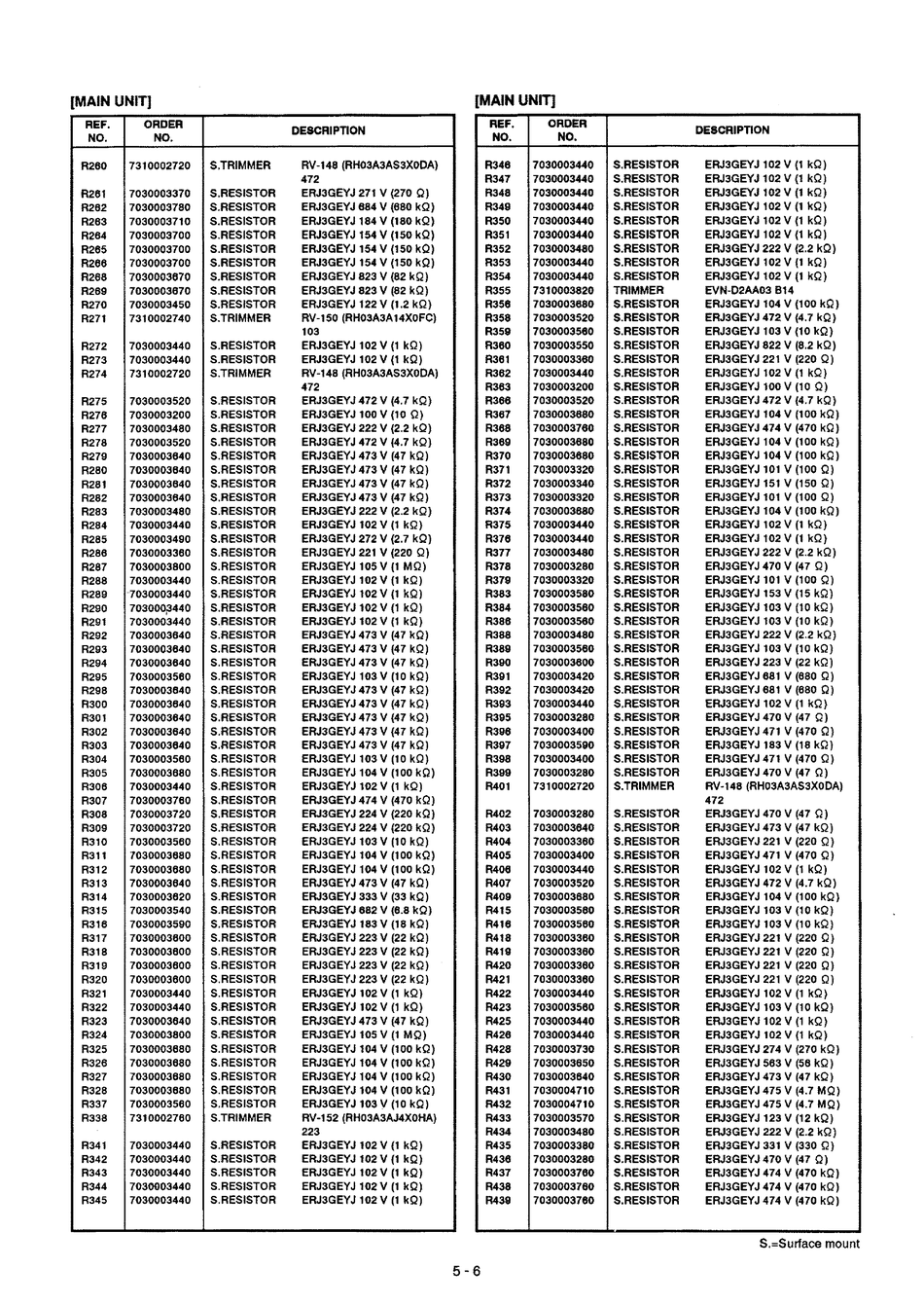

Icom IC-706 Service Manual page 29

[MAIN UNIT]
REF.
ORDER
DESCRIPTION
NO.
NO.
R260 7310002720
S.TRIMMER RV-148 (RH03A3AS3XODA)
472
R261 7030003370
S.RESISTOR ERJ3GEYJ 271 V (270 Q)
R262 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kQ)
R263 7030003710 S.RESISTOR
ERJ3GEYJ 184 V (180 kQ)
R264 7030003700
S.RESISTOR ERJ3GEYJ 154 V (150 kQ)
R265 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kQ)
R266
7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kQ)
R268 7030003670 S.RESISTOR
ERJ3GEYJ 823 V (82 kQ)
R269 7030003670 S.RESISTOR
ERJ3GEYJ 823 V (82 kQ)
R270 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kQ)
R271
7310002740 S.TRIMMER
RV-150 (RH03A3AI4XOFC)
103
R272 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R273 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R274 7310002720 S.TRIMMER
RV-148 (RH03A3AS3XODA)
472
R275 7030003520 S.RESISTOR
ERJ3GEYJ 472 V (4.7 kQ)
R276
7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Q)
R277 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R278 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R279
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R280 7030003640 S.RESISTOR
ERJ3GEYJ 473 V (47 kQ)
R281 7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R282 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R283 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R284
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R285 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kQ)
R286 7030003360
S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R287
7030003800 S.RESISTOR ERJ3GEYJ 105 V (I MQ)
R288 7030003440
S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R289 -7030003440 S.RESISTOR
ERJ3GEYJ 102V (1 kQ)
R290
70300~440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R291 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R292 7030003640 S.RESISTOR
ERJ3GEYJ 473 V (47 kQ)
R293 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R294
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R295 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R298
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R300 7030003640 S.RESISTOR
ERJ3GEYJ473 V (47 kQ)
R30I 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R302 7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R303 7030003640 S.RESISTOR
ERJ3GEYJ 473 V (47 kQ)
R304 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R305 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R306 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R307 7030003760
S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R308 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R309
7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R310 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R311 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R312 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R313 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R314 7030003620
S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R315 7030003540
S.RESISTOR ERJ3GEYJ 682 V (6.8 kQ)
R316 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kQ)
R317
7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R318 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R319 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R320 7030003600
S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R321 7030003440
S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R322 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R323 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R324 7030003800
S.RESISTOR ERJ3GEYJ 105 V (1 MQ)
R325 7030003880 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R326 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R327
7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R328 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R337 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R338 7310002760
S.TRIMMER RV-152 (RH03A3AJ4XOHA)
223
R341 7030003440
S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R342 7030003440 S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R343 7030003440 S.RESISTOR ERJ3GEYJ 102V (I kQ)
R344 7030003440 S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R345 7030003440 S.RESISTOR ERJ3GEYJ 102 V (I kQ)
[MAIN UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
R346 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R347
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
A348 7030003440 S.AESISTOA ERJ3GEYJ102V(lkQ)
R349
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R350 7030003440 S.AESISTOR EAJ3GEYJ 102 V (1 kQ)
A351 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R352
7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R353 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R354
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R355 7310003820 TRIMMER EVN-D2AA03614
A356
7030003680 S.AESISTOR ERJ3GEYJ 104 V (100 kQ)
R358 7030003520 S.AESISTOR
ERJ3GEYJ 472 V (4.7 kQ)
R359 7030003560 S.AESISTOA
EAJ3GEYJ 103 V (10 kQ)
R360 7030003550 S.RESISTOR
ERJ3GEYJ 822 V (8.2 kQ)
R361 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R362
7030003440 S.RES1STOR ERJ3GEYJ 102 V (1 kQ)
A363 7030003200 S.RESISTOR
ERJ3GEYJ 100 V (10 Q)
A366
7030003520 S.AESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R367 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R368 7030003760 S.AESISTOR EAJ3GEYJ 474 V (470 kQ)
R369 7030003680 S.RESISTOA
ERJ3GEYJ 104 V (100 kQ)
R370 7030003680 S.RESISTOA ERJ3GEYJ 104 V (100 kQ)
R371 7030003320 S.RESISTOA EAJ3GEYJ 101 V (100 Q)
R372 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Q)
R373 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q)
R374 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R375 7030003440 S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R376 7030003440 S.AESISTOR
ERJ3GEYJ 102 V (I kQ)
R377 7030003480 S.RESISTOR EAJ3GEYJ 222 V (2.2 kQ)
R378 7030003280
S.RESISTOA ERJ3GEYJ 470 V (47 Q)
R379 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
R383
7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kQ)
R384 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R386 7030003560 S.RESISTOA ERJ3GEYJ 103 V (10 kQ)
R388 7030003480 S.RESISTOR EAJ3GEYJ 222 V (2.2 kQ)
R389 7030003560 S.AESISTOR EAJ3GEYJ 103 V (10 kQ)
R390 7030003600 S.AESISTOA EAJ3GEYJ 223 V (22 kQ)
R391 7030003420
S.RESISTOR EAJ3GEYJ 681 V (680 Q)
R392 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Q)
R393
7030003440 S.RESISTOR ERJ3GEYJ 102 V (I kQ)
R395 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
R396 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q)
R397 7030003590
S.RESISTOR ERJ3GEYJ 183 V (18 kQ)
R398 7030003400 S.RESISTOR EAJ3GEYJ 471 V (470 Q)
R399 7030003280 S.AESISTOR ERJ3GEYJ 470 V (47 Q)
R401
7310002720 S.TRIMMER RV-148 (RH03A3AS3XODA)
472
A402 7030003280 S.AESISTOR
ERJ3GEYJ 470 V (47 Q)
A403 7030003640 S.AESISTOR ERJ3GEYJ 473 V (47 kQ)
A404
7030003360 S.AESISTOA ERJ3GEYJ 221 V (220 Q)
R405 7030003400 S.AESISTOA ERJ3GEYJ471 V (470 Q)
A406
7030003440 S.AESISTOA ERJ3GEYJ 102 V (1 kQ)
A407 7030003520 S.AESISTOR EAJ3GEYJ 472 V (4.7 kQ)
R409 7030003680 S.AESISTOR ERJ3GEYJ 104 V (100 kQ)
A415 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R416 7030003560 S.AESISTOR ERJ3GEYJ 103 V (10 kQ)
R418 7030003360 S.RESISTOR EAJ3GEYJ 221 V (220 Q)
R419 7030003360 S.AESISTOR EAJ3GEYJ 221 V (220 Q)
R420 7030003360 S.AESISTOR EAJ3GEYJ 221 V (220 Q)
R421
7030003360 S.AESISTOR ERJ3GEYJ 221 V (220 Q)
R422
7030003440 S.AESISTOR ERJ3GEYJ 102 V (I kQ)
R423 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R425 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R426 7030003440 S.AESISTOR ERJ3GEYJ 102 V (1 kQ)
R428 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kQ)
R429 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kQ)
R430
7030003640 S.RESISTOR EAJ3GEYJ 473 V (47 kQ)
R431 7030004710 S.AESISTOR EAJ3GEYJ 475 V (4.7 MQ)
R432 7030004710 S.RESISTOR ERJ3GEYJ 475 V (4.7 MQ)
R433 7030003570 S.AESISTOR ERJ3GEYJ 123 V (12 kQ)
R434 7030003480 S.AES1STOR ERJ3GEYJ 222 V (2.2 kQ)
R435 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Q)
R436 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
R437 7030003760 S.AESISTOR ERJ3GEYJ 474 V (470 kQ)
R438 7030003760 S.AESISTOR EAJ3GEYJ 474 V (470 kQ)
R439 7030003760 S.AESISTOR EAJ3GEYJ 474 V (470 kQ)
