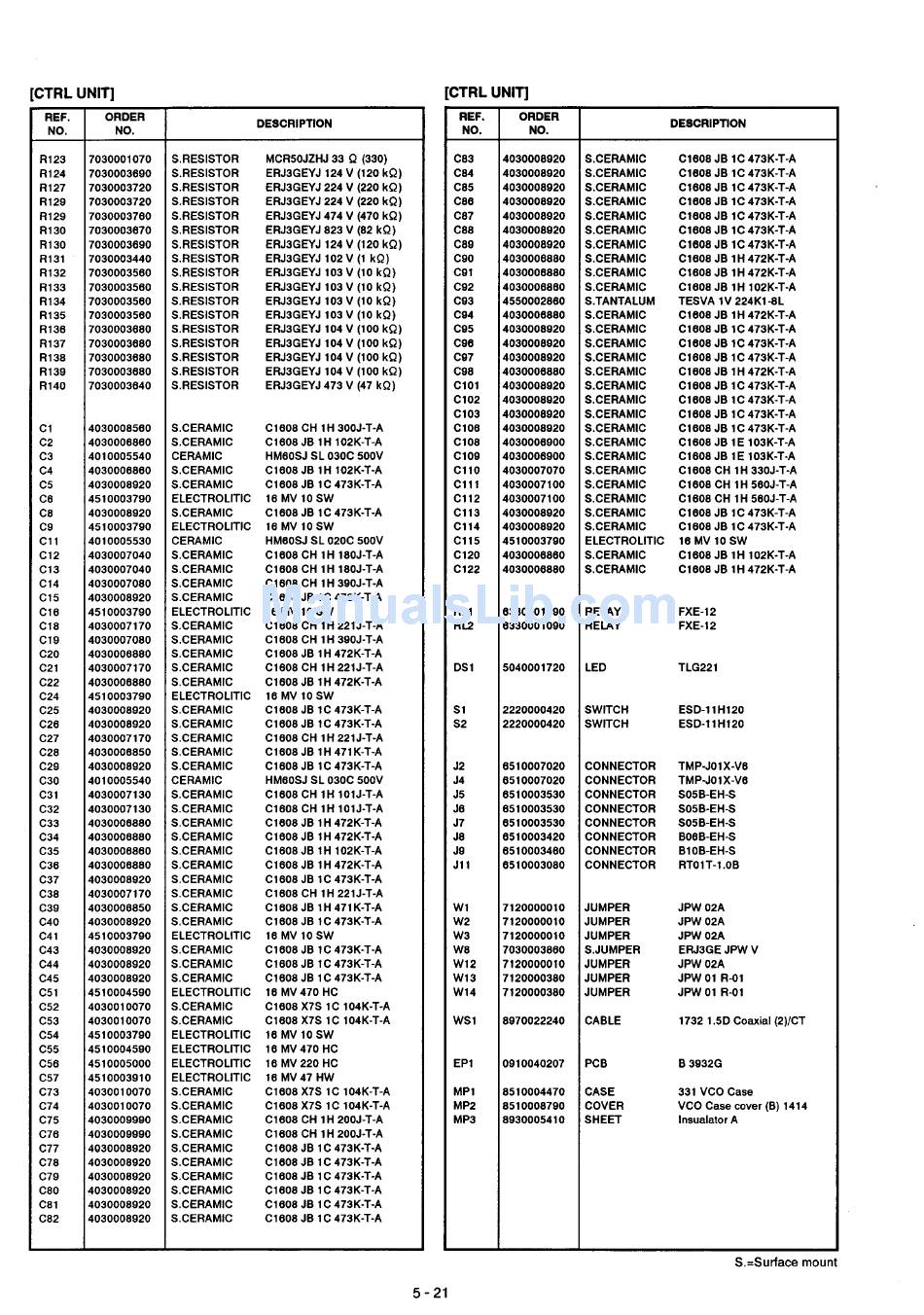

Icom IC-706 Service Manual page 44

[CTRL UNIT]
REF. ORDER
DESCRIPTION
NO.
NO.
R123 7030001070 S.RESISTOR
MCR50JZHJ 33 Q (330)
R124 7030003690
S.RESISTOR ERJ3GEYJ 124 V (120 kQ)
R127 7030003720 S.RESISTOR
ERJ3GEYJ 224 V (220 kQ)
R129 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R129 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R130 7030003670
S.RESISTOR ERJ3GEYJ 823 V (82 kQ)
R130 7030003690
S.RESISTOR ERJ3GEYJ 124 V (120 kQ)
R131 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R132 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R133 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R134
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R135 7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R136 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R137 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R138 7030003680
S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R139 7030003680 S.RESISTOR
ERJ3GEYJ 104 V (100 kQ)
R140
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
Cl 4030008560 S.CERAMIC
C1608 CH lH 300J-T-A
C2
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C3 4010005540 CERAMIC
HM60SJ SL 030C 500V
C4
4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C5 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C6 4510003790
ELECTROLITIC 16 MV 10SW
C8 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C9 4510003790 ELECTROLITIC 16 MV 10SW
Cll 4010005530
CERAMIC HM60SJ SL 020C 500V
C12
4030007040 S.CERAMIC C1608 CH lH 180J-T-A
C13 4030007040 S.CERAMIC C1608 CH lH 180J-T-A
C14 4030007080
S.CERAMIC C1608 CH lH 390J-T-A
C15 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C16 4510003790 ELECTROLITIC 16 MV 10SW
C18 4030007170 S.CERAMIC C1608 CH lH 221J-T-A
C19 4030007080 S.CERAMIC C1608 CH lH 390J-T-A
C20 4030006880
S.CERAMIC C1608 JB lH 472K-T-A
C21 4030007170 S.CERAMIC C1608 CH lH 221J-T-A
C22 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C24
4510003790 ELECTROLITIC 16 MV 10SW
C25 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
C26 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C27 4030007170
S.CERAMIC C1608 CH lH 221J-T-A
C28 4030006850 S.CERAMIC
C1608 JB lH 471K-T-A
C29 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C30 4010005540 CERAMIC HM60SJ SL 030C 500V
C31
4030007130 S.CERAMIC C1608 CH lH 101J-T-A
C32 4030007130 S.CERAMIC C1608 CH lH 101J-T-A
C33
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C34 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C35
4030006860 S.CERAMIC C1608JB lH 102K-T-A
C36 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C37
4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C38 4030007170 S.CERAMIC C1608 CH lH 221J-T-A
C39 4030006850
S.CERAMIC C1608 JB lH 471K-T-A
C40 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C41
4510003790 ELECTROLITIC 16 MV 10SW
C43 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C44 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
C45 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C51
4510004590 ELECTROLITIC 16 MV 470 HC
C52 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C53 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C54
4510003790 ELECTROLITIC 16 MV 10SW
C55 4510004590 ELECTROLITIC 16 MV 470 HC
C56 4510005000 ELECTROLITIC 16 MV 220 HC
C57 4510003910 ELECTROLITIC 16 MV47 HW
C73 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C74 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C75
4030009990 S.CERAMIC C1608 CH lH 200J-T-A
C76 4030009990 S.CERAMIC C1608 CH lH 200J-T-A
C77 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C78 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C79 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
C80 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C81 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C82 4030008920
S.CERAMIC C1608 JB lC 473K-T-A
[CTRL UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
C83 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C84 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C85 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C86 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C87 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C88 4030008920
S.CERAMIC
C1608 JB lC 473K-T-A
C89 4030008920
S.CERAMIC
C1608 JB lC 473K-T-A
C90 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C91 4030006880
S.CERAMIC
C1608 JB 1H 472K-T-A
C92 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C93 4550002860 S.TANTALUM TESVA lV 224Kl-8L
C94 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C95 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C96 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C97 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C98 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl0l 4030008920
S.CERAMIC
C1608 JB lC 473K-T-A
Cl02 4030008920 S.CERAMIC C1608 JB lC 473K·T-A
Cl03 4030008920
S.CERAMIC
C1608 JB lC 473K-T-A
Cl06 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
Cl08 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
Cl09 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
Cll0 4030007070 S.CERAMIC C1608 CH lH 330J-T-A
Clll 4030007100 S.CERAMIC C1608 CH lH 560J-T-A
Cl12 4030007100 S.CERAMIC
C1608 CH lH 560J-T-A
Cl13 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C114 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C115 4510003790 ELECTROLITIC 16 MV 10 SW
C120 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C122 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
RLl 6330001090 RELAY
FXE-12
RL2 6330001090 RELAY FXE-12
DSl 5040001720 LED TLG221
Sl 2220000420 SWITCH ESD-l1H120
S2 2220000420 SWITCH
ESD-llH120
J2 6510007020 CONNECTOR TMP-J01X-V6
J4 6510007020 CONNECTOR TMP-J01X-V6
J5 6510003530 CONNECTOR S05B-EH-S
J6 6510003530 CONNECTOR S05B-EH-S
J7 6510003530 CONNECTOR S05B-EH-S
J8 6510003420 CONNECTOR
B06B-EH-S
J9 6510003460 CONNECTOR Bl0B-EH-S
Jl1 6510003080 CONNECTOR
RTOll-l.0B
Wl 7120000010 JUMPER JPW02A
W2 7120000010 JUMPER JPW02A
W3 7120000010 JUMPER JPW02A
W8 7030003860 S.JUMPER ERJ3GEJPWV
W12 7120000010 JUMPER JPW02A
W13 7120000380 JUMPER JPWOl R-Ol
W14 7120000380 JUMPER JPWOl R-Ol
WSl 8970022240 CABLE 1732 1.50 Coaxial (2)/CT
EPl 0910040207 PCB B 3932G
MPI
8510004470 CASE 331 VCO Case
MP2 8510008790 COVER VCO Case cover (B) 1414
MP3 8930005410 SHEET Insualator A
S.=Surface mount
5 - 21
