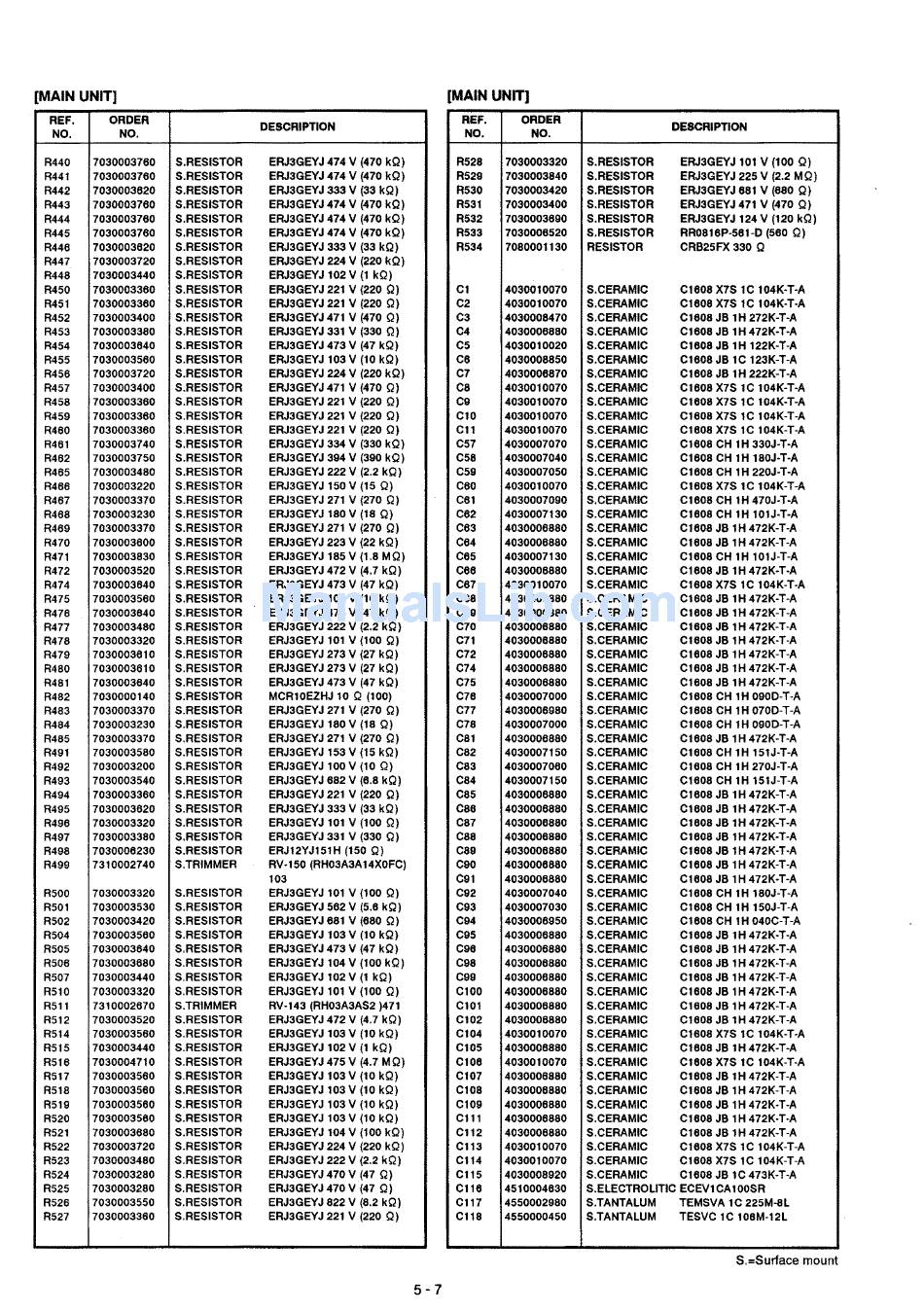

Icom IC-706 Service Manual page 30

[MAIN UNIT]
REF.
ORDER
DESCRIPTION
NO. NO.
R440 7030003760 S.RESISTOR
ERJ3GEYJ 474 V (470 kQ)
R441
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R442 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R443
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R444 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R445
7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kQ)
R446
7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R447
7030003720 S.RES1STOR ERJ3GEYJ 224 V (220 kQ)
R448 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kO)
R450
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 0)
R451 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 0)
R452
7030003400 S.RESISTOR ERJ3GEYJ471 V (4700)
R453
7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Q)
R454 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kQ)
R455 7030003560
S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R456 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kQ)
R457
7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 0)
R458 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 0)
R459
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R460 7030003360
S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R461
7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kO)
R462
7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kQ)
R465 7030003480 S.RES1STOR ERJ3GEYJ 222 V (2.2 kQ)
R466
7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 0)
R467 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 0)
R468 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 0)
R469
7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 0)
R470
7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kQ)
R471 7030003830 S.RESISTOR ERJ3GEYJ 185 V (1.8 MO)
R472 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kO)
R474 7030003640
S.RESISTOR ERJ3GEYJ 473 V (47 kO)
R475
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R476
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kO)
R477 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R478 7030003320 S.RESISTOR
ERJ3GEYJ 101 V (100 Q)
R479
7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kQ)
R480 7030003610
S.RESISTOR ERJ3GEYJ 273 V (27 kO)
R481 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kO)
R482
7030000140 S.RESISTOR MCR10EZHJ 10 0 (100)
R483 7030003370
S.RESISTOR ERJ3GEYJ 271 V (270 0)
R484
7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 0)
R485
7030003370 S.RESISTOR ERJ3GEYJ 271 V (2700)
R491 7030003580
S.RESISTOR ERJ3GEYJ 153 V (15 kO)
R492
7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 0)
R493 7030003540
S.RESISTOR ERJ3GEYJ 682 V (6.8 kO)
R494 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R495 7030003620
S.RESISTOR ERJ3GEYJ 333 V (33 kQ)
R496
7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 0)
R497 7030003380
S.RESISTOR ERJ3GEYJ 331 V (330 Q)
R498
7030006230 S.RESISTOR ERJ12YJ151H (150 Q)
R499 7310002740
S.TRIMMER
RV·150 (RH03A3A14XOFC)
103
R500 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 0)
R501
7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kO)
R502 7030003420
S.RESISTOR ERJ3GEYJ 681 V (680 0)
R504
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R505
7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kO)
R506 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kO)
R507 7030003440
S.RESISTOR
ERJ3GEYJ 102 V (1 kO)
R510 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 0)
R511 7310002670 S.TRtMMER RV·143 (RH03A3AS2 )471
R512
7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kQ)
R514 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R515 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kO)
R516 7030004710 S.RESISTOR ERJ3GEYJ 475 V (4.7 MO)
R517 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kO)
R518
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R519
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kO)
R520
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R521 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kQ)
R522
7030003720 S.RESISTOR ERJ3GEYJ 224 V {220 kQ}
R523 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R524 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 0)
R525
7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Q)
R526 7030003550 S.RESISTOR
ERJ3GEYJ 822 V (6.2 kQ)
R527
7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Q)
5-7
[MAIN UNIT)
REF.
ORDER
DESCRIPTION
NO.
NO.
R528 7030003320
S.RESISTOR
ERJ3GEYJ 101 V (100 Q)
R529 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MQ)
R530 7030003420 S.RESISTOR ERJ3GEYJ 681 V (6800)
R531 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q)
R532 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kQ)
R533 7030006520 S.RESISTOR RR0816p·561-D (560 0)
R534 7080001130 RESISTOR CRB25FX 330 Q
Cl
4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C2 4030010070 S.CERAMIC C1608 X7S lC l04K-T-A
C3 4030008470 S.CERAMIC C1608 JB lH 272K-T-A
C4 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C5 4030010020 S.CERAMIC C1608 JB lH 122K-T-A
C6 4030008850
S.CERAMIC
C1608 JB lC 123K-T-A
C7 4030006870 S.CERAMIC C1808 JB lH 222K-T-A
C8 4030010070
S.CERAMIC
C1808 X7S lC 104K-T-A
C9
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
Cl0 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
Cl1 4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C57 4030007070 S.CERAMIC C1808 CH lH 330J-T-A
C58 4030007040 S.CERAMIC C1808 CH lH 180J-T-A
C59 4030007050 S.CERAMIC C1808 CH lH 220J-T-A
C80 4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C61 4030007090 S.CERAMIC C1808 CH lH 470J-T-A
C82 4030007130 S.CERAMIC C1808 CH lH 101J-T-A
C83 4030008880 S.CERAMIC C1808 JB lH 472K-T-A
C84
4030006880 S.CERAMIC C1808 JB 1H 472K-T-A
C85 4030007130 S.CERAMIC C1808 CH lH 101J-T-A
C68 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C67 4030010070
S.CERAMIC
C1808 X7S lC 104K-T-A
C68 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C69 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C70 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C71
4030006880
S.CERAMIC C1608 JB 1H 472K-T-A
C72 4030008880 S.CERAMIC C1808 JB lH 472K-T-A
C74
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C75 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C78 4030007000 S.CERAMIC C1808 CH lH 090D-T-A
C77
4030006980
S.CERAMIC C1808 CH lH 070D-T-A
C78 4030007000 S.CERAMIC C1608 CH lH 090D-T-A
C81 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C82 4030007150
S.CERAMIC C1608 CH lH 151J-T-A
C83 4030007060 S.CERAMIC C1808 CH lH 270J-T-A
C84 4030007150 S.CERAMIC C1608 CH lH 151J-T-A
C85 4030006880 S.CERAM1C C1808 JB lH 472K-T-A
C86
4030006880 S.CERAMIC C1808JB lH472K-T-A
C87 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C88
4030006880
S.CERAMIC
C1808 JB lH 472K-T-A
C89 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C90 4030008880 S.CERAMIC C1808 JB 1H 472K-T-A
C91 4030006880 S.CERAMIC C1808 JB 1H 472K-T-A
C92 4030007040 S.CERAMIC C1808 CH lH 180J-T-A
C93
4030007030
S.CERAMIC
C1608 CH lH 150J-T-A
C94 4030006950
S.CERAMIC
C1808 CH lH 040C-T-A
C95 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C96
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C98 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C99 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl00 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
Cl0l 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl02 4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
Cl04 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
Cl05 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl06 4030010070 S.CERAMIC C1808 X7S lC l04K-T-A
Cl07 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
Cl08
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl09 4030006880
S.CERAMIC C1808 JB lH 472K-T-A
Cl11 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C112 4030008880 S.CERAMIC C1608 JB lH 472K-T-A
Cl13 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C114 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C115 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C118 4510004830
S.ELECTROLITIC ECEV1CA100SR
Cl17 4550002980 S.TANTALUM TEMSVA lC 225M-8L
C118 4550000450
S.TANTALUM TESVC lC 108M-12L
S.=Surlace mount
