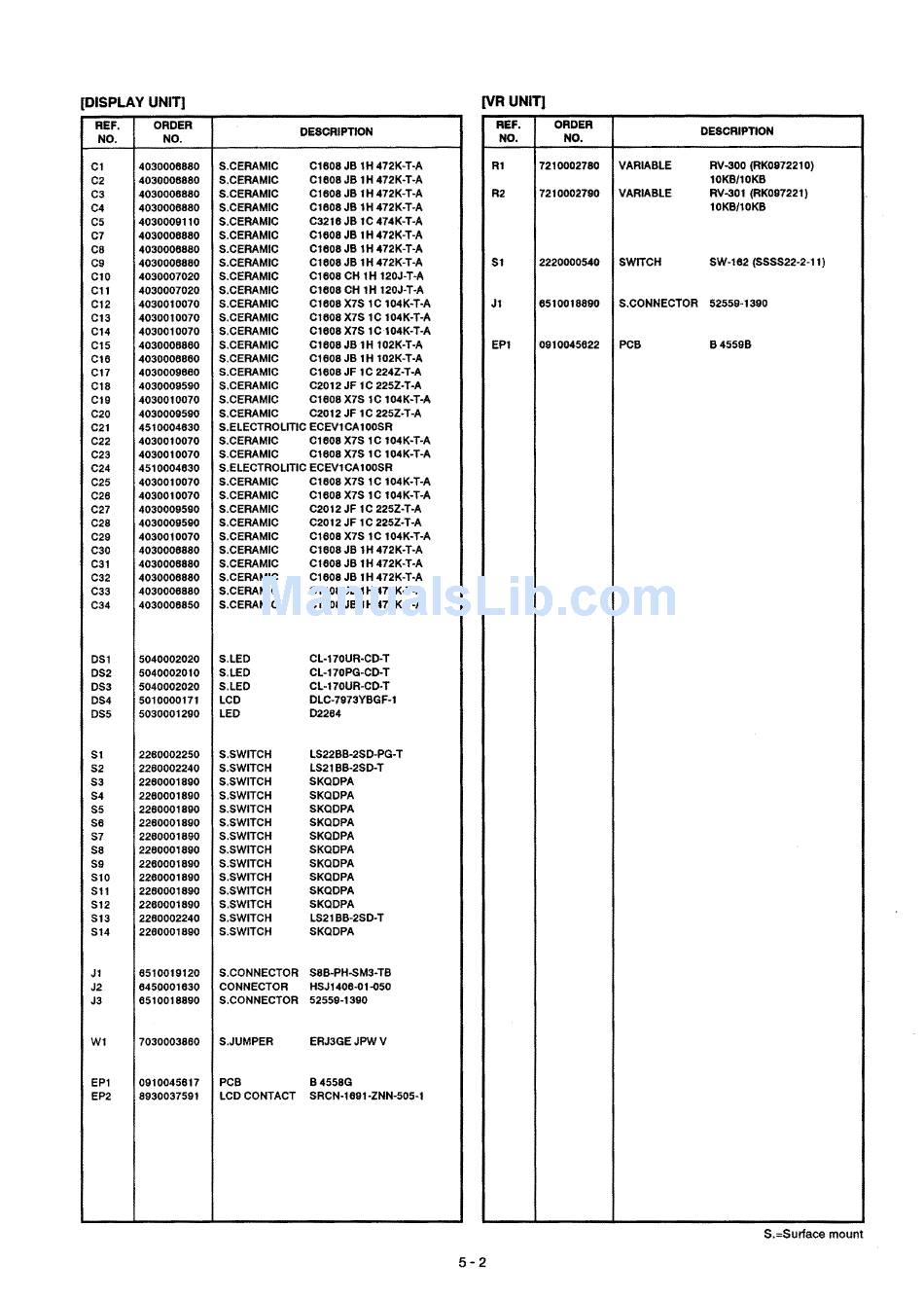

Icom IC-706 Service Manual page 25

[DISPLAY UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
Cl
4030006880 S.CERAMIC C1608JB lH472K-T-A
C2
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C3
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C4 4030008880
S.CERAMIC C1808 JB lH 472K-T-A
C5 4030009110 S.CERAMIC C3216 JB lC 474K-T-A
C7 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C8 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C9
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
Cl0 4030007020 S.CERAMIC C1608 CH lH 12OJ-T-A
Cll
4030007020 S.CERAMIC C1808 CH lH 12OJ-T-A
C12
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C13 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C14
4030010070 S.CERAMIC C1608 X7S lCl04K-T-A
C15 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C16 4030006860
S.CERAMIC C1608 JB lH 102K-T-A
C17 4030009860
S.CERAMIC C1608 JF lC 224Z-T-A
C18 4030009590
S.CERAMIC C2012 JF lC 225Z-T-A
C19 4030010070 S.CERAMIC
C1808 X7S 1C 104K-T-A
C20 4030009590 S.CERAMIC C2012 JF lC 225Z-T-A
C21 4510004830 S.ELECTROLITIC ECEV1CA100SR
C22 4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C23 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C24 4510004630 S.ELECTROLITIC ECEV1CA100SR
C25
4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C28
4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C27
4030009590 S.CERAMIC C2012 JF lC 225Z-T-A
C28 4030009590 S.CERAMIC C2012 JF lC 225Z-T-A
C29
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C30
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C31
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C32
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C33 4030006880 S.CERAMIC C1808 JB lH 472K-T-A
C34
4030008850 S.CERAMIC C1808 JB lH 471K-T-A
051 5040002020 S.LED
CL-170UR-CD-T
D52 5040002010 S.LED CL-170PG-CD-T
DS3
5040002020 S.LED CL-170UR-CD-T
DS4
5010000171 LCD DLC-7973YBGF-l
DS5 5030001290 LED D2284
Sl 2280002250 S.SWITCH LS22BB-2SD-PG-T
S2 2280002240 S.SWITCH
LS21 BB-25D-T
S3 2280001890 S.SWITCH
SKQDPA
S4
2260001890 S.5WITCH SKQOPA
55 2260001890 S.SWITCH SKQOPA
S8 2280001890 S.SWITCH
SKQDPA
S7
2280001890 S.SWITCH
SKQOPA
S8 2280001890 S.SWITCH SKQOPA
59
2280001890 S.SWITCH SKQDPA
S10 2280001890 S.SWITCH SKQDPA
Sl1 2280001890 S.SW1TCH SKQDPA
S12 2280001890 S.5WITCH SKQDPA
S13 2280002240 S.SWITCH LS21BB-2SD-T
S14 2280001890 S.SWITCH SKQDPA
Jl 8510019120 S.CONNECTOR S8B-PH-SM3-TB
J2
6450001830 CONNECTOR HSJ1408·01-Q50
J3
8510018890 S.CONNECTOR 52559-1390
Wl 7030003880 S.JUMPER ERJ3GEJPWV
EPl 0910045817 PCB B4558G
EP2 8930037591 LCD CONTACT
SRCN-1691-ZNN-505-1
(VR UNIT]
REF.
ORDER
DESCRIPTION
NO.
NO.
Rl
7210002780 VARIABLE RV-300 (RK0972210)
1OKB/lOKB
R2 7210002790 VARIABLE RV-301 (RK097221)
10KB/l0KB
Sl 2220000540 SWITCH
SW-162 (SSSS22-2-11)
Jl 6510018890 S.CONNECTOR 52559-1390
EPl 0910045822 PCB B4559B
S.=Surface mount
5-2
