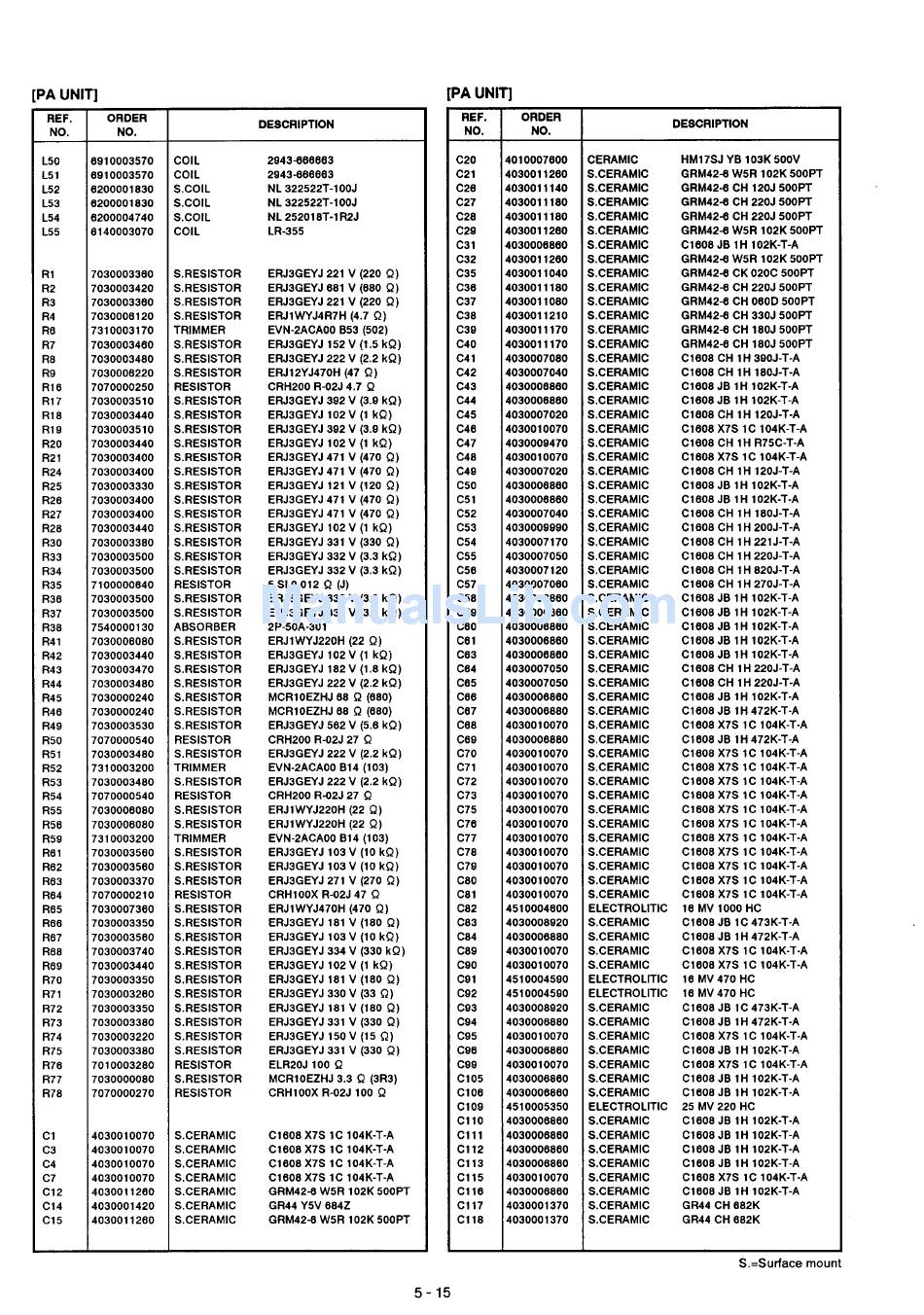

[PA UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
L50
6910003570 COIL 2943-666663
L51 6910003570 COIL 2943-666663
L52 6200001830
S.COIL NL 322522T-l00J
L53 6200001830 S.COIL
NL 322522T-l00J
L54 6200004740 S.COIL
NL 252018T-1R2J
L55 6140003070 COIL LR-355
Rl 7030003360
S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R2
7030003420 S.RESISTOR
ERJ3GEYJ 681 V (680 Q)
R3 7030003360
S.RESISTOR ERJ3GEYJ 221 V (220 Q)
R4
7030006120 S.RESISTOR
ERJ1WYJ4R7H (4.7 Q)
R6 7310003170
TRIMMER EVN-2ACAOO B53 (502)
R7
7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kQ)
R8 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R9
7030006220 S.RESISTOR ERJ12YJ470H (47 Q)
R16 7070000250 RESISTOR
CRH200 R-02J 4.7 Q
R17
7030003510 S.RESISTOR
ERJ3GEYJ 392 V (3.9 kQ)
R18 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R19 7030003510
S.RESISTOR ERJ3GEYJ 392 V (3.9 kQ)
R20 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R21
7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Q)
R24 7030003400 S.RESISTOR
ERJ3GEYJ 471 V (470 Q)
R25
7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Q)
R26 7030003400 S.RESISTOR
ERJ3GEYJ 471 V (470 Q)
R27
7030003400 S.RESISTOR
ERJ3GEYJ 471 V (470 Q)
R28 7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R30 7030003380 S.RESISTOR
ERJ3GEYJ 331 V (330 Q)
R33 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ)
R34 7030003500
S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ)
R35 7100000640 RESISTOR
5 SI 0.012 Q (J)
R36
7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kQ)
R37
7030003500 S.RESISTOR
ERJ3GEYJ 332 V (3.3 kQ)
R38 7540000130
ABSORBER 2P-50A-301
R41
7030006080 S.RESISTOR
ERJ1WYJ220H (22 Q)
R42 7030003440
S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
R43 7030003470 S.RESISTOR
ERJ3GEYJ 182 V (1.8 kQ)
R44
7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R45 7030000240 S.RESISTOR
MCR10EZHJ 68 Q (680)
R46
7030000240 S.RESISTOR MCR10EZHJ 68 Q (680)
R49 7030003530
S.RESISTOR ERJ3GEYJ 562 V (5.6 kQ)
R50 7070000540
RESISTOR CRH200 R-02J 27 Q
R51 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R52
7310003200 TRIMMER
EVN-2ACAOO B14 (103)
R53 7030003480
S.RESISTOR ERJ3GEYJ 222 V (2.2 kQ)
R54 7070000540 RESISTOR
CRH200 R-02J 27 Q
R55 7030006080
S.RESISTOR ERJ1WYJ220H (22 Q)
R56
7030006080 S.RESISTOR ERJ1WYJ220H (22 Q)
R59 7310003200
TRIMMER EVN-2ACAOO B14 (103)
R61
7030003560 S.RESISTOR
ERJ3GEYJ 103 V (10 kQ)
R62
7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R63
7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Q)
R64 7070000210
RESISTOR CRH100X R-02J 47 Q
R65 7030007360 S.RESISTOR
ERJ1WYJ470H (470 Q)
R66
7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 0)
R67 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kQ)
R68
7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kO)
R69
7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kO)
R70 7030003350
S.RESISTOR ERJ3GEYJ 181 V (180 0)
R71
7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Q)
R72 7030003350 S.RESISTOR
ERJ3GEYJ 181 V (180 0)
R73
7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 0)
R74 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Q)
R75
7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 0)
R76
7010003280 RESISTOR ELR20J 100 Q
R77 7030000080
S.RESISTOR MCR10EZHJ 3.3 Q (3R3)
R78
7070000270 RESISTOR
CRH100X R-02J 100 Q
Cl 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C3
Ml30010070 S.CERAMIC C1608 X7S lC 104K-T-A
C4 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C7
4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C12
4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT
C14 4030001420 S.CERAMIC GR44 Y5V 684Z
C15 4030011260
S.CERAMIC GRM42-6 W5R 102K 500PT
[PA UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
C20 4010007600 CERAMIC
HM17SJ YB 103K 500V
C21 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT
C26 4030011140 S.CERAMIC
GRM42-6 CH 120J 500PT
C27 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT
C28 4030011180 S.CERAMIC
GRM42-6 CH 220J 500PT
C29 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT
C31 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C32 4030011260 S.CERAMIC
GRM42-6 W5R 102K 500PT
C35 4030011040 S.CERAMIC GRM42-6 CK 020C 500PT
C36 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT
C37 4030011080 S.CERAMIC GRM42-6 CH 0600 500PT
C38 4030011210 S.CERAMIC GRM42-6 CH 330J 500PT
C39 4030011170 S.CERAMIC
GRM42-6 CH 180J 500PT
C40 4030011170 S.CERAMIC
GRM42-6 CH 180J 500PT
C41 4030007080 S.CERAMIC
C1608 CH lH 390J-T-A
C42 4030007040 S.CERAMIC C1608 CH lH 180J-T-A
C43 4030006860 S.CERAMIC C1608JB lH 102K-T-A
C44 4030006860 S.CERAMIC C1608JB lH 102K-T-A
C45 4030007020 S.CERAMIC C1606 CH lH 120J-T-A
C46 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C47 4030009470
S.CERAMIC C1608 CH lH R75C-T-A
C48 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C49 4030007020 S.CERAMIC C1608 CH lH 120J-T-A
C50 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C51 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C52 4030007040
S.CERAMIC C1608 CH 1H 180J-T-A
C53 4030009990 S.CERAMIC C1608 CH lH 200J-T-A
C54 4030007170 S.CERAMIC C1608 CH lH 221J-T-A
C55 4030007050 S.CERAMIC
C1608 CH 1H 220J-T-A
C56 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A
C57
4030007060 S.CERAMIC C1608 CH lH 270J-T-A
C58 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C59 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C60 4030006860 S.CERAMIC
C1608 JB 1H 102K-T-A
C61 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C63 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C64 4030007050 S.CERAMIC
C1608 CH lH 220J-T-A
C65 4030007050 S.CERAMIC
C1608 CH lH 220J-T-A
C66 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C67 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C68 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C69 4030006880 S.CERAMIC
C1608JB lH472K-T-A
C70 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C71 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C72 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C73 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C75 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C76 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C77 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C78 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C79 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C80 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C81 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C82 4510004600 ELECTROLITIC 16 MV 1000 HC
C83 4030008920 S.CERAMIC
C1608 JB lC 473K-T-A
C84 4030006880 S.CERAMIC
C1608 JB 1H 472K-T-A
C89 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C90 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C91 4510004590 ELECTROLITIC 16 MV 470 HC
C92 4510004590
ELECTROLITIC 16 MV 470 HC
C93
4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C94 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C95 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C96 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C99 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
Cl05 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
Cl06 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
Cl09 4510005350 ELECTROLITIC 25 MV 220 HC
Cll0 4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
Clll 4030006860 S.CERAMIC C1608JB lH 102K-T-A
Cl12 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C113 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
Cl15 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
Cl16 4030006860 S.CERAMIC
C1608JB lH 102K-T-A
Cl17 4030001370 S.CERAMIC
GR44 CH 682K
C118 4030001370 S.CERAMIC GR44 CH 682K
S.=Surface mount
5 -15
