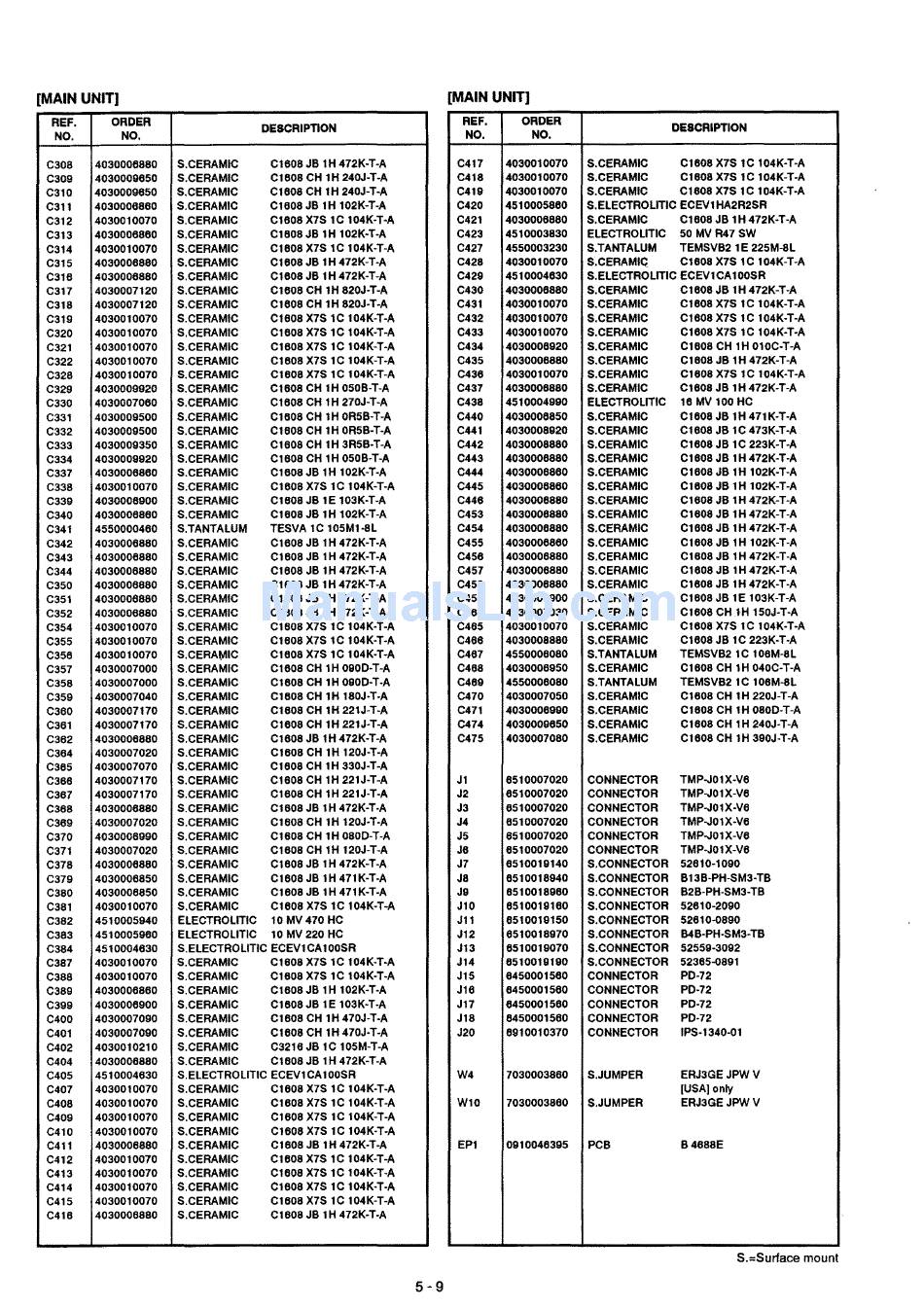

Icom IC-706 Service Manual page 32

[MAIN UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
C308
4030006880 S.CERAMIC
C1608JB lH472K·T-A
C309
4030009650 S.CERAMIC C1608 CH lH 240J·T·A
C310
4030009650
S.CERAMIC C1608 CH lH 240J-T·A
C311
4030006860 S.CERAMIC
C1608 JB lH 102K·T·A
C312
4030010070
S.CERAMIC C1608 X7S lC 104K·T·A
C313
4030006860 S.CERAMIC C1608 JB lH 102K·T·A
C314
4030010070
S.CERAMIC C1608 X7S lC 104K·T·A
C315
4030006880 S.CERAMIC
C1808 JB lH 472K·T·A
C318
4030008880 S.CERAMIC C1608 JB lH 472K·T-A
C317 4030007120 S.CERAMIC
C1808 CH lH 820J·T-A
C318
4030007120 S.CERAMIC
C1608 CH lH 82OJ-T-A
C319 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C320
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C321 4030010070 S.CERAMIC
C1608 X7S lC 104K-T·A
C322
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C328
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C329
4030009920 S.CERAMIC C1608 CH lH 050B-T-A
C330 4030007060 S.CERAMIC
C1608 CH lH 270J-T-A
C331 4030009500
S.CERAMIC C1608 CH lH OR5B-T-A
C332 4030009500 S.CERAMIC
C1608 CH lH OR5B-T-A
C333
4030009350 S.CERAMIC C1608 CH lH 3R5B-T-A
C334 4030009920
S.CERAMIC C1608 CH lH 050B-T-A
C337 4030006860
S.CERAMIC C1608JB lH 102K-T-A
C338
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C339
4030006900 S.CERAMIC C1608 JB lE 103K·T-A
C340
4030008860 S.CERAMIC
C1608 JB lH 102K-T-A
C341
4550000460 S.TANTALUM TESVA lC 105MHlL
C342
4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C343 4030008880
S.CERAMIC C1608 JB lH 472K-T-A
C344
4030006880 S.CERAMIC C1608 JB lH 472K-T·A
C350
4030006880 S.CERAMIC
C1608 JB lH 472K·T·A
C351
4030006880 S.CERAMIC C1808 JB lH 472K·T·A
C352
4030008880 S.CERAMIC
C1608 JB lH 472K·T-A
C354
4030010070 S.CERAMIC C1606 X7S lC l04K·T·A
C355 4030010070
S.CERAMIC C1608 X7S lC 104K·T·A
C356 4030010070 S.CERAtilIC
C1608 X7S lC 104K·T-A
C357
4030007000 S.CERAMIC
C1608 CH lH 090D·T·A
C358
4030007000 S.CERAMIC C1608 CH lH 090D·T·A
C359 4030007040 S.CERAMIC C1608 CH lH 180J·T·A
C360
4030007170 S.CERAMIC C1808 CH lH 221J-T-A
C381 4030007170
S.CERAMIC C1608 CH lH 221J-T-A
C382
4030008880 S.CERAMIC C1608 JB lH 472K-T-A
C384
4030007020 S.CERAMIC C1808 CH lH 120J·T·A
C385 4030007070
S.CERAMIC C1608 CH lH 330J·T·A
C366 4030007170 S.CERAMIC
C1608 CH lH 221J·T·A
C367
4030007170 S.CERAMIC C1808 CH lH 221J·T·A
C368 4030008880
S.CERAMIC C1608 JB lH 472K·T·A
C369
4030007020 S.CERAMIC C1608 CH lH 120J·T·A
C370
4030006990 S.CERAMIC C1608 CH lH 080D·T-A
C371 4030007020
S.CERAMIC C1608 CH lH 120J-T·A
C378 4030006880 S.CERAMIC
C1608JB lH472K-T-A
C379 4030006850
S.CERAMIC C1606 JB lH 471K-T·A
C380
4030008850 S.CERAMIC
C1608 JB lH 471K-T-A
C361
4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C382 4510005940
ELECTROLlTIC 10 MV470 HC
C383
4510005980 ElECTROLlTIC 10 MV220 HC
C384
4510004630 S.ELECTROLlTIC ECEV1CA100SR
C387 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C388
4030010070 S.CERAMIC
C1608 X7S lC 104K-T·A
C389 4030008860
S.CERAMIC C1808JB lH 102K-T·A
C399
4030008900 S.CERAMIC
C1608JB IE 103K·T·A
C400 4030007090
S.CERAMIC C1808 CH lH 470J-T-A
C401
4030007090 S.CERAMIC C1608 CH lH 470J-T-A
C402 4030010210 S.CERAMIC
C3218 JB lC 105M-T-A
C404
4030008880 S.CERAMIC C1608 JB 1H 472K-T·A
C405
4510004630 S.ElECTROlITIC ECEV1CA100SR
C407 4030010070 S.CERAMIC
C1608 X7S lC 104K·T-A
C408
4030010070 S.CERAMIC C1608 X7S lC 104K·T·A
C409
4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C410
4030010070 S.CERAMIC C1608 X7S lC 104K·T-A
C411
4030006880 S.CERAMIC C1608 JB lH 472K·T·A
C412
4030010070 S.CERAMIC
C1808 X7S lC 104K-T-A
C413
4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C414
4030010070 S.CERAMIC C1608 X7S lC 104K·T·A
C415 4030010070
S.CERAMIC C1808 X7S lC 104K-T-A
C416
4030006880 S.CERAMIC C1808 JB lH 472K-T-A
5-9
[MAIN UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
C417 4030010070 S.CERAMIC
C1608 X7S lC 104K-T-A
C418 4030010070 S.CERAMIC C1808 X7S lC 104K-T-A
C419 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C420 4510005880 S.ELECTROLITIC ECEVI HA2R2SR
C421 4030006880 S.CERAMIC C1608 JB 1H 472K·T-A
C423
4510003830 ELECTROLITIC 50 MV R47 SW
C427 4550003230 S.TANTALUM TEMSVB21E 225M-8L
C428 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C429 4510004830 S.ELECTROLITIC ECEV1CA100SR
C430 4030008880 S.CERAMIC C1608 JB lH 472K-T-A
C431 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C432 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C433
4030010070
S.CERAMIC
C1608 X7S lC 104K-T-A
C434 4030006920 S.CERAMIC C1608 CH lH 010C-T-A
C435
4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C436
4030010070
S.CERAMIC
C1608 X7S lC 104K·T-A
C437 4030006880 S.CERAMIC C1608JB lH472K-T-A
C438 4510004990 ELECTROLITIC 16 MV 100 HC
C440 4030006850 S.CERAMIC C1608 JB lH 471K-T-A
C441 4030008920 S.CERAMIC C1608 JB lC 473K-T-A
C442 4030008880 S.CERAMIC C1608 JB lC 223K-T·A
C443 4030006880 S.CERAMIC C1608JB lH472K-T-A
C444 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C445 4030006880 S.CERAMIC
C1608 JB 1H 102K-T-A
C446 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C453 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C454 4030006880 S.CERAMIC
C1608 JB lH 472K-T-A
C455 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C456
4030006880
S.CERAMIC
C1608 JB lH 472K-T-A
C457
4030006880 S.CERAMIC C1608 JB lH 472K-T·A
C458 4030008880 S.CERAMIC C1608 JB lH 472K-T-A
C459
4030006900 S.CERAMIC C1608 JB lE 103K-T-A
C464 4030007030 S.CERAMIC C1608 CHIH 150J-T-A
C465 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C466
4030008880
S.CERAMIC
C1608 JB lC 223K-T-A
C467 4550006080 S.TANTALUM TEMSVB2 lC 106M-8L
C468
4030008950
S.CERAMIC
C1608 CH lH 040C-T-A
C469
4550006080
S.TANTALUM TEMSVB2 lC 106M-8L
C470 4030007050 S.CERAMIC C1608 CH lH 220J-T-A
C471 4030006990 S.CERAMIC C1608 CH lH 080D-T-A
C474 4030009650 S.CERAMIC C1608 CH lH 240J-T-A
C475
4030007080
S.CERAMIC
C1608 CH lH 390J-T-A
Jl 6510007020 CONNECTOR TMP-J01X-V6
J2 6510007020 CONNECTOR TMP-J01X-V6
J3 8510007020 CONNECTOR TMP-J01X·V8
J4 6510007020 CONNECTOR TMP-J01X-V8
J5 6510007020 CONNECTOR
TMP-J01X-V8
J6 6510007020 CONNECTOR TMP-J01X-V8
J7
6510019140 S.CONNECTOR 52610-1090
J8 6510018940 S.CONNECTOR B13B-PH-SM3-TB
J9 6510018960 S.CONNECTOR B2B-PH·SM3-TB
Jl0 6510019160 S.CONNECTOR 52610-2090
Jl1 8510019150 S.CONNECTOR 52610-0890
J12
8510018970
S.CONNECTOR
B4B-PH-SM3-TB
J13 8510019070 S.CONNECTOR 52559-3092
J14 6510019190 S.CONNECTOR 52365-0891
J15 8450001560 CONNECTOR PD-72
J16 6450001560 CONNECTOR PD·72
J17 8450001560 CONNECTOR PD-72
J18 6450001560 CONNECTOR PD·72
J20 6910010370 CONNECTOR IPS-1340-o1
W4 7030003860 S.JUMPER ERJ3GEJPWV
[USA) only
Wl0 7030003860 S.JUMPER ERJ3GEJPWV
EPI 0910046395 PCB B4888E
S.=Surface mount
