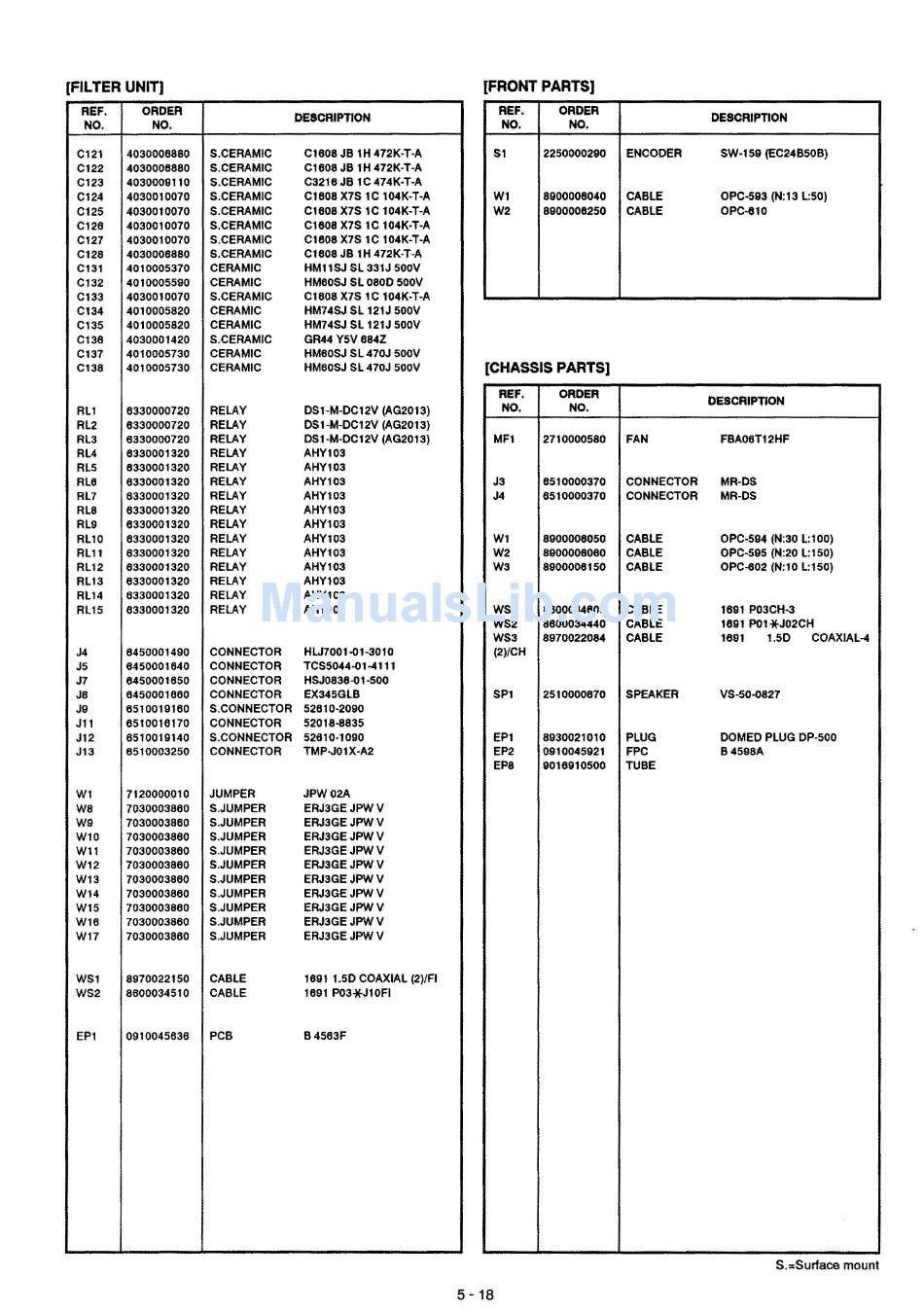

Icom IC-706 Service Manual page 41

[FilTER UNIT)
REF.
ORDER
DESCRIPTION
NO. NO.
C121
4030006880 S.CERAMIC C1608 JB lH 472K-T-A
C122 4030006880 S.CERAMIC C1608 JB lH 472K·T·A
C123
4030009110 S.CERAMIC C3216JB lC474K·T·A
C124
4030010070 S.CERAMIC C1608 X7S lC 104K-T·A
C125
4030010070 S.CERAMIC C1608 X7S lC l04K·T-A
C126 4030010070 S.CERAMIC C1608 X7S lC 104K-T-A
C127 4030010070
S.CERAMIC C1608 X7S lC 104K-T-A
C128 4030006880 S.CERAMIC C1608JB lH472K-T·A
C131 4010005370 CERAMIC
HMllSJ SL 331J 500V
C132 4010005590
CERAMIC HM60SJ SL 0800 500V
C133
4030010070 S.CERAMIC C1608 X7S lC 104K·T·A
C134 4010005820
CERAMIC HM74SJ SL 121J 500V
C135 4010005820 CERAMIC HM74SJ SL 121J 500V
C136 4030001420 S.CERAMIC GR44 Y5V 684Z
C137
4010005730 CERAMIC HM60SJ SL 470J 500V
C138 4010005730 CERAMIC HM60SJ SL 470J 500V
Rll 6330000720 RELAY DS1-M-DC12V (AG2013)
RL2 6330000720 RELAY OSl·M-DC12V (AG2013)
RL3 6330000720 RELAY DS1·M·DC12V (AG2013)
RL4 6330001320 RELAY AHY103
RL5
6330001320 RELAY AHY103
RL6
6330001320 RELAY AHY103
RL7 6330001320 RELAY AHY103
RL8 6330001320 RELAY AHYl03
RL9 6330001320 RELAY
AHY103
RL10
6330001320 RELAY AHY103
R1l1
6330001320 RELAY AHY103
R1l2 6330001320 RELAY
AHY103
R1l3 6330001320 RELAY AHY103
R1l4 6330001320 RELAY AHY103
R1l5 6330001320 RELAY AHY103
J4 6450001490 CONNECTOR HLJ7001.Ql·3010
J5
6450001640 CONNECTOR TCS5044.Q1-4111
J7 6450001650 CONNECTOR HSJ0836.Ql·500
J8 6450001660 CONNECTOR EX345GLB
J9 6510019160 S.CONNECTOR 52610·2090
Jll 6510016170 CONNECTOR 52018·8835
J12 6510019140 S.CONNECTOR 52610·1090
J13 6510003250 CONNECTOR TMP-J01X-A2
WI 7120000010 JUMPER
JPW02A
W8 7030003860 S.JUMPER ERJ3GEJPWV
W9 7030003860 S.JUMPER ERJ3GEJPWV
Wl0 7030003860 S.JUMPER ERJ3GEJPWV
W11 7030003860 S.JUMPER ERJ3GEJPWV
W12 7030003860
S.JUMPER ERJ3GEJPWV
W13
7030003860 S.JUMPER ERJ3GEJPWV
W14 7030003860 S.JUMPER ERJ3GEJPWV
W15 7030003860
S.JUMPER ERJ3GEJPWV
W16 7030003860 S.JUMPER ERJ3GEJPWV
W17 7030003860 S.JUMPER ERJ3GEJPWV
WS1
8970022150 CABLE 1691 1.50 COAXIAL (2}IFI
WS2 8600034510 CABLE 1691 P03*Jl0FI
EPI 0910045636 PCB
B4563F
[FRONT PARTS)
REF. ORDER
DESCRIPTION
NO. NO.
Sl 2250000290 ENCODER SW·159 {EC24B50B}
Wl 8900006040 CABLE OPC·593 {N:13 L:50}
W2 8900006250 CABLE OPC-el0
[CHASSIS PARTS)
REF. ORDER
DESCRIPTION
NO. NO.
MFl 2710000580 FAN FBA06T12HF
J3 6510000370 CONNECTOR MR·DS
J4 6510000370 CONNECTOR MR-DS
WI 8900008050 CABLE OPC·594 {N:30 l:100}
W2 8900006060 CABLE OPC·595 (N:20 l:150)
W3 8900006150 CABLE OPC-e02 (N:l0 l:150)
WSl 8600034603 CABLE 1691 P03CH·3
WS2 8600034440 CABLE 1691 POl*J02CH
WS3 8970022084 CABLE 1691 1.50 COAXIAL-4
(2}ICH
SPl 2510000670 SPEAKER VS·50.Q827
EPl 8930021010 PLUG DOMED PLUG DP·500
EP2 0910045921 FPC B4598A
EP8 9016910500 TUBE
