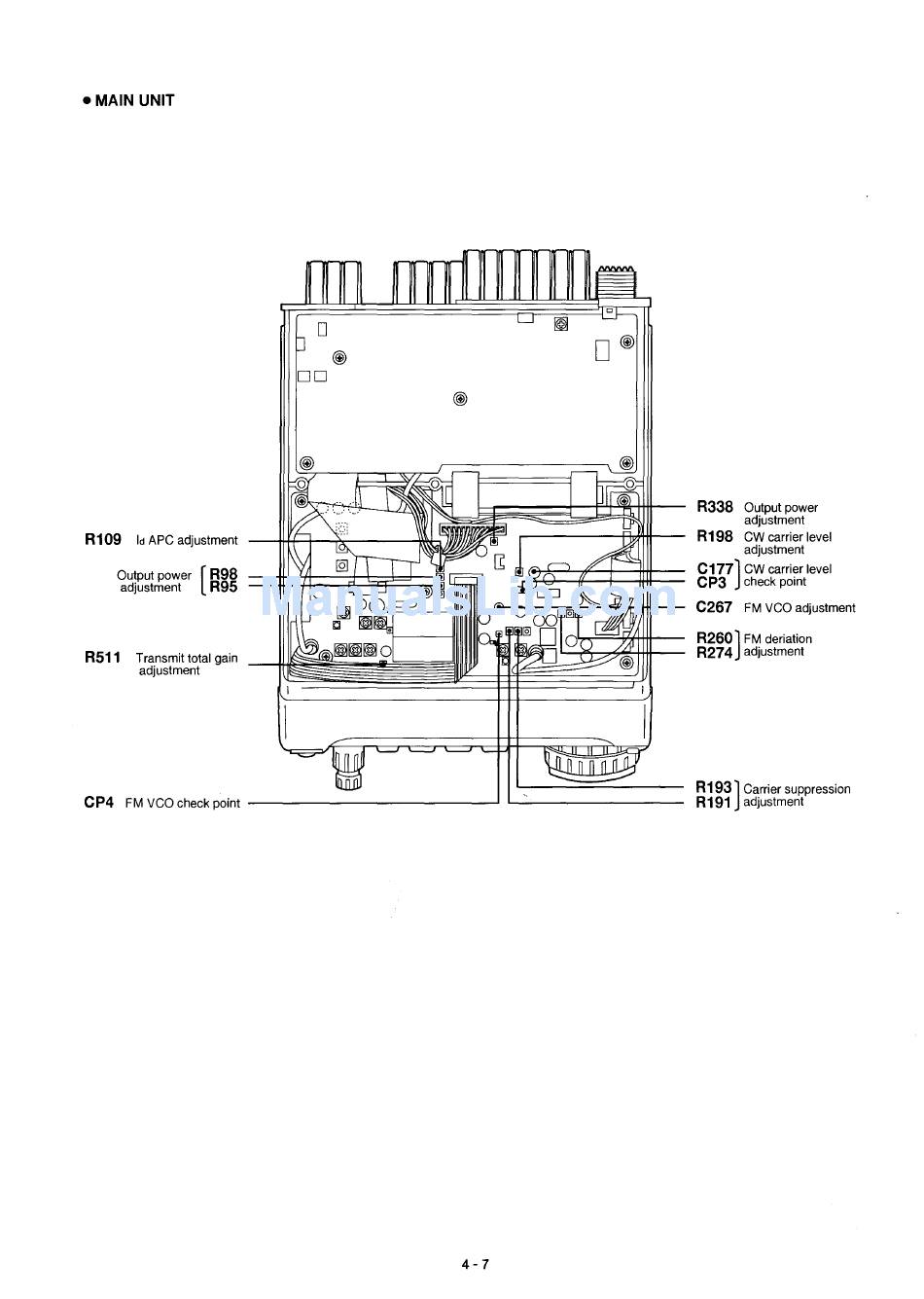

-MAIN UNIT
@
DO
R109
Id
APC adjustment
Output power
[R98
adjustment
R95
R511
Transmit total gain
adjustment
R338
Output power
adjustment
R198
CW carrier level
adjustment
C177]
CW carrier level
CP3
check point
C267
FM VCO adjustment
R260]
FM deriation
R274
adjustment
CP4
FM VCO check point
---J ' - - - - - - - - - - - -
4-7
R193]
Carrier suppression
R191
adjustment
