(1) Connector pin configuration
Signal
Pin
FG
1
TXD
2
RXD
3
CTS
5
DSR
6
SG
7
DTR
20
(2) Electric characteristics
1) Drive voltage: 24 VDC
2) Drive current: Approx. 1 A max. (not to exceed 510 ms.)
3) DRSW signal: Signal levels: " L"
(3) DRSW signal
DRSW signal status can be tested with the DLE+EOT, GS+a, or GS+r
command or at pin 34 on the parallel interface port.

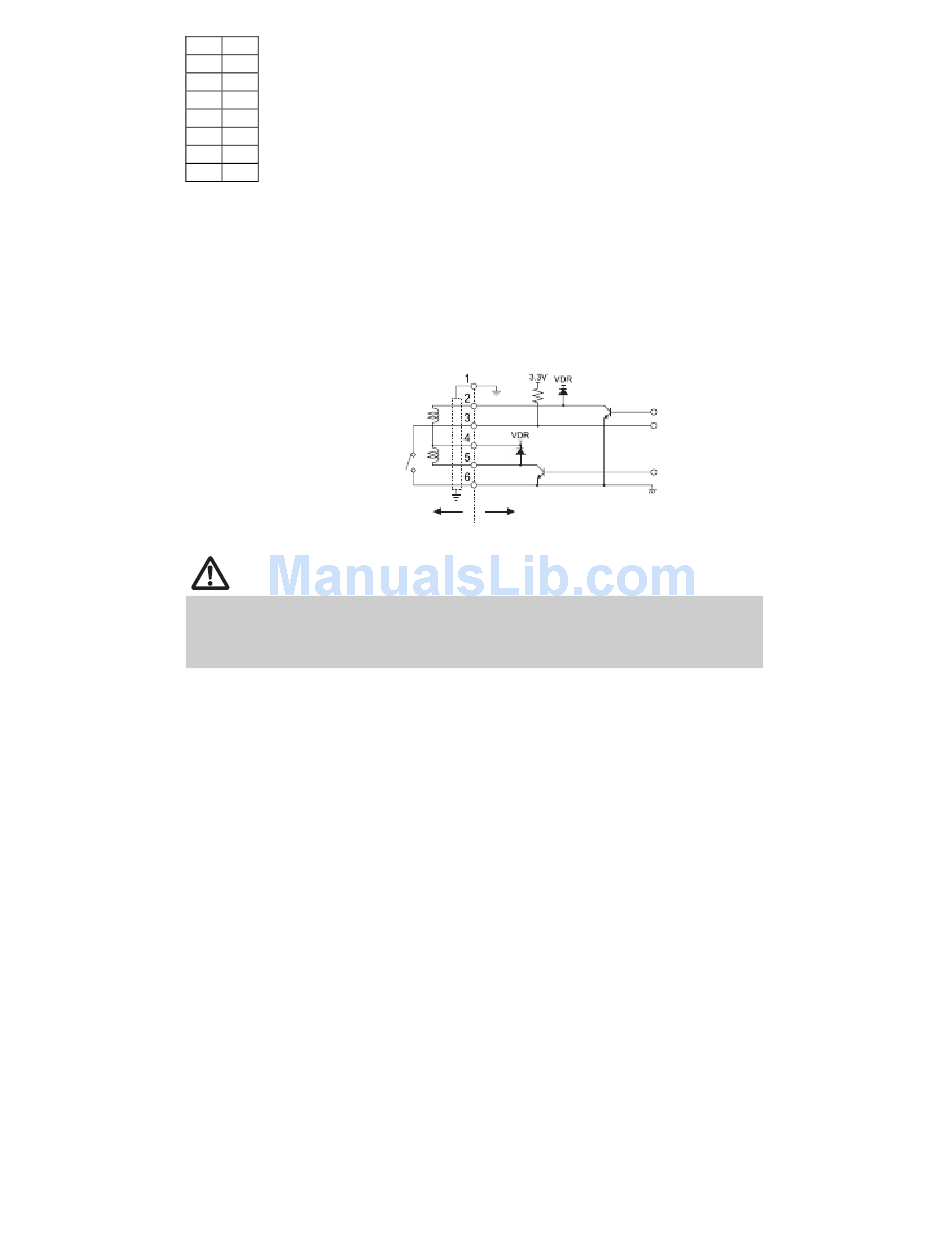

(4) Drive circuit
Cash drawer kick-out connector
Cash drawer open/
close switch
Cash drawer
CAUTION
Cash drawers 1 and 2 cannot be operated at the same time.
The solenoid used for the cash drawer should be 24 ∧ or more. Do not allow the
electric current to exceed 1 A. Excessive current could damage or burn out the
circuits.
= 0 to 0.8 V, " H"
Shielded
Printer
— 19 —
Connector used:
TM5RJ3-66 (Hirose) or
equivalent
Applicable connector:
TM3P-66P (Hirose) or
equivalent
= 2 to 3.3 V
