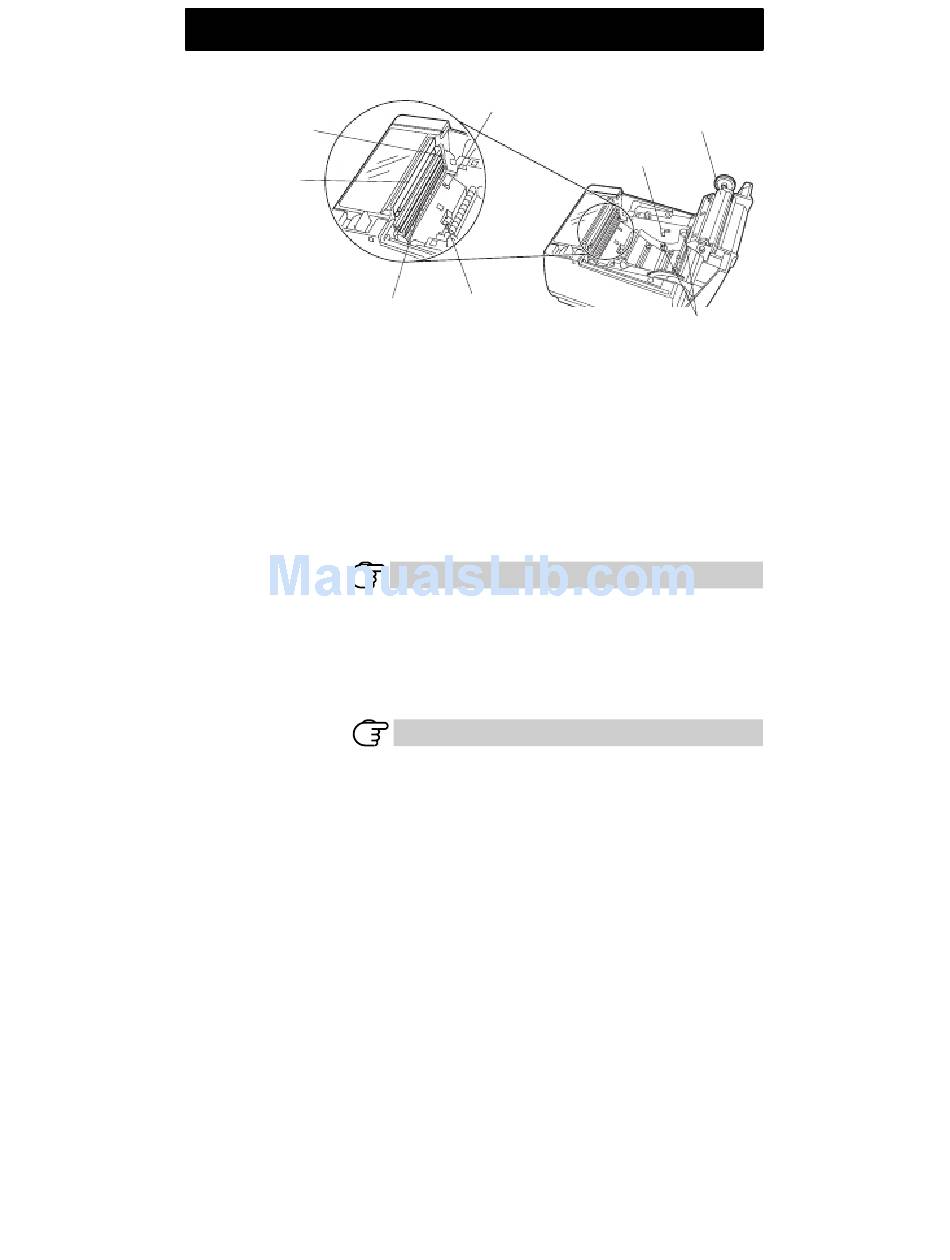

2.2 Inside the paper cover

Auto cutter
Manual cutter
Print head (thermal) Paper thickness
Platen
Feeds the paper.
Paper near-end sensor (PNE sensor)
Detects when the paper is near the end of the roll. Adjust the position of the
sensor to determine when it detects the end of the paper is near.
Button to change paper near-end sensor
Change the position of the paper near-end sensor to match the paper being
used.
Manual cutter
For cutting the paper manually when printing is finished.
Auto cutter
Automatically cuts the paper when printing is finished.
Print head (thermal)
Prints characters and graphic data on paper (paper rolls).
Paper end sensor (PE sensor)
Detects when there is no paper. Printing stops when this sensor detects there
is no paper.
Paper-end sensor
(PE sensor)
Button to change paper
near-end sensor
selection lever
Refer to 3.7 Adjusting the Paper Near-end Sensor
Refer to 5.3 Manual Setting of Memory Switches
— 14 —
Platen
Paper near-end sensor
(PNE sensor)
