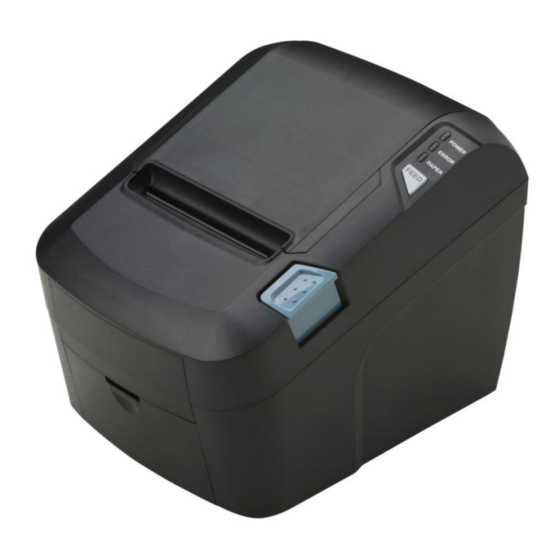

TVS electronics RP 3160 STAR User Manual

TVS electronics RP 3160 STAR User Manual

Receipt printer

Advertisement

Receipt Printer User's Manual
RP 3160 STAR
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP 3160 STAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TVS electronics RP 3160 STAR

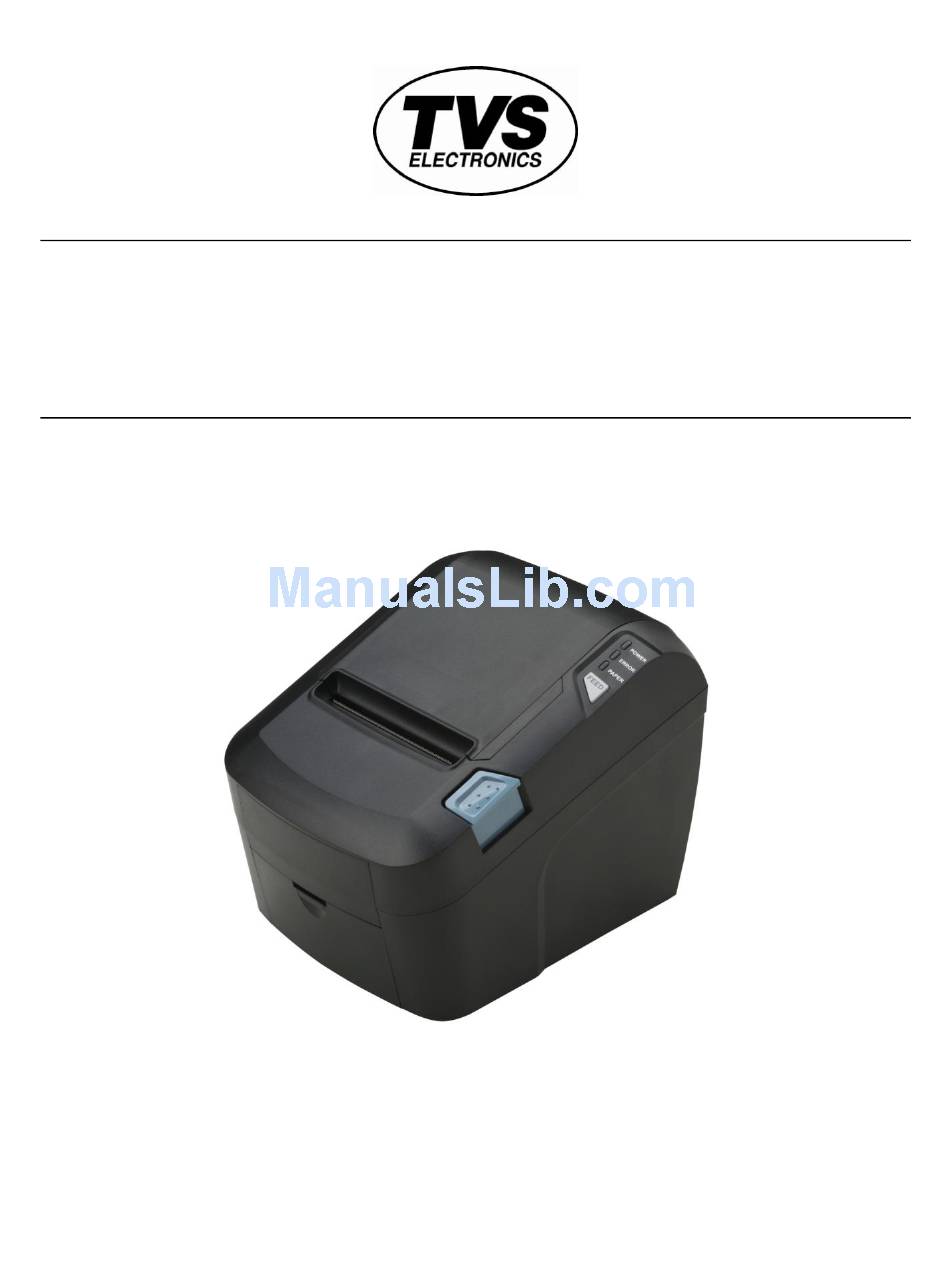

  • Page 1 Receipt Printer User’s Manual RP 3160 STAR All specifications are subject to change without notice...
  • Page 2 RP 3160 STAR User’s Manual Part Number: 1025040086, Rev A, Description: User Manual, RP3160 STAR...
  • Page 3: Table Of Contents

    RP 3160 STAR User’s Manual TABLE OF CONTENTS 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Adjustment of paper width 3. Control panel and other functions 4. Self Test 5.
  • Page 4: Parts Identifications

    RP 3160 STAR User’s Manual 1. Parts Identifications PRINTER COVER CONTROL PANEL Open this cover to load Features LED indicators or replace paper. to indicate printer status and switches to operate the printer. COVER OPEN LEVER Pull down this lever to open the printer cover.
  • Page 5: Setting Up The Printer

    RP 3160 STAR User’s Manual 2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. User’s Manual The Printer Roll Paper Adaptor Interface Cable (Option)
  • Page 6: Connecting The Cables

    RP 3160 STAR User’s Manual -2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : INTERFACE CONNECTOR...
  • Page 7: Interface Connector

    RP 3160 STAR User’s Manual 2-2-1. Interface Connector <USB “B” Type> <9 Pin Serial> USB interface SIGNAL DESCRIPTION DATA- Printer transmit data line DATA+ Printer transmit data line System Ground 9Pin Serial Interface SIGNAL DESCRIPTION Printer receive data line RS-232C level...
  • Page 8 RP 3160 STAR User’s Manual 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.
  • Page 9: Loading The Roll Paper

    RP 3160 STAR User’s Manual 2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.
  • Page 10 RP 3160 STAR User’s Manual 5. Be sure to note the correct direction that the paper comes off the roll. 6. Pull out a small amount of paper, as shown. Then, close the cover. 7. Tear off the paper as shown.
  • Page 11 RP 3160 STAR User’s Manual CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming.
  • Page 12: Adjustment Of Paper Width

    RP 3160 STAR User’s Manual 2-4. Adjustment of paper width 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. 2. Fasten the screw after adjusting the Paper Guide. 3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.
  • Page 13: Control Panel And Other Functions

    RP 3160 STAR User’s Manual 3. Control panel and other functions. 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’ s status.
  • Page 14: Self Test

    RP 3160 STAR User’s Manual 4. Self Test The self-test result indicated whether the printer is operating properly. Also with this, user can check following options or status of the printer.  Control circuit  Printer mechanism  Printing quality ...
  • Page 15: Select Baud Rate Mode

    RP 3160 STAR User’s Manual 6. Select Baud Rate Mode After entering the BAUDRATE MODE, the list which can select the BPS will be printed. Similarly like Self Test, you can press the FEED button to select a BAUDRATE. Once the input performs properly, the printer shows a result and store.
  • Page 16: Printer Cleaning

    RP 3160 STAR User’s Manual 8. Printer Cleaning If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer. Notes: 1. Make sure to turn the printer power off prior to cleaning 2.
  • Page 17: Specifications

    RP 3160 STAR User’s Manual 9. Specifications ♣Important! When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A.
  • Page 18 RP 3160 STAR User’s Manual (8) Overall dimension...
  • Page 19: Auto Cutter Specifications

    RP 3160 STAR User’s Manual 9-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.06 ~ 0.09mm (3) Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and100µm) 9-3. Interface USB (B type) + Serial Build-in 9-4.
  • Page 20: Environmental Requirements

    RP 3160 STAR User’s Manual ♣Important! When using a printer power supply other than optional AC adaptor, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Be careful about installing the printer in an area where there is noise.
  • Page 21: Command List

    RP 3160 STAR User’s Manual 10. Command List Command Function Remarks Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission...
  • Page 22 RP 3160 STAR User’s Manual Command Function Remarks ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode...
  • Page 23 :: MEMO ::...
