Connecting The Cash Drawer - TVS electronics RP-3200 User Manual

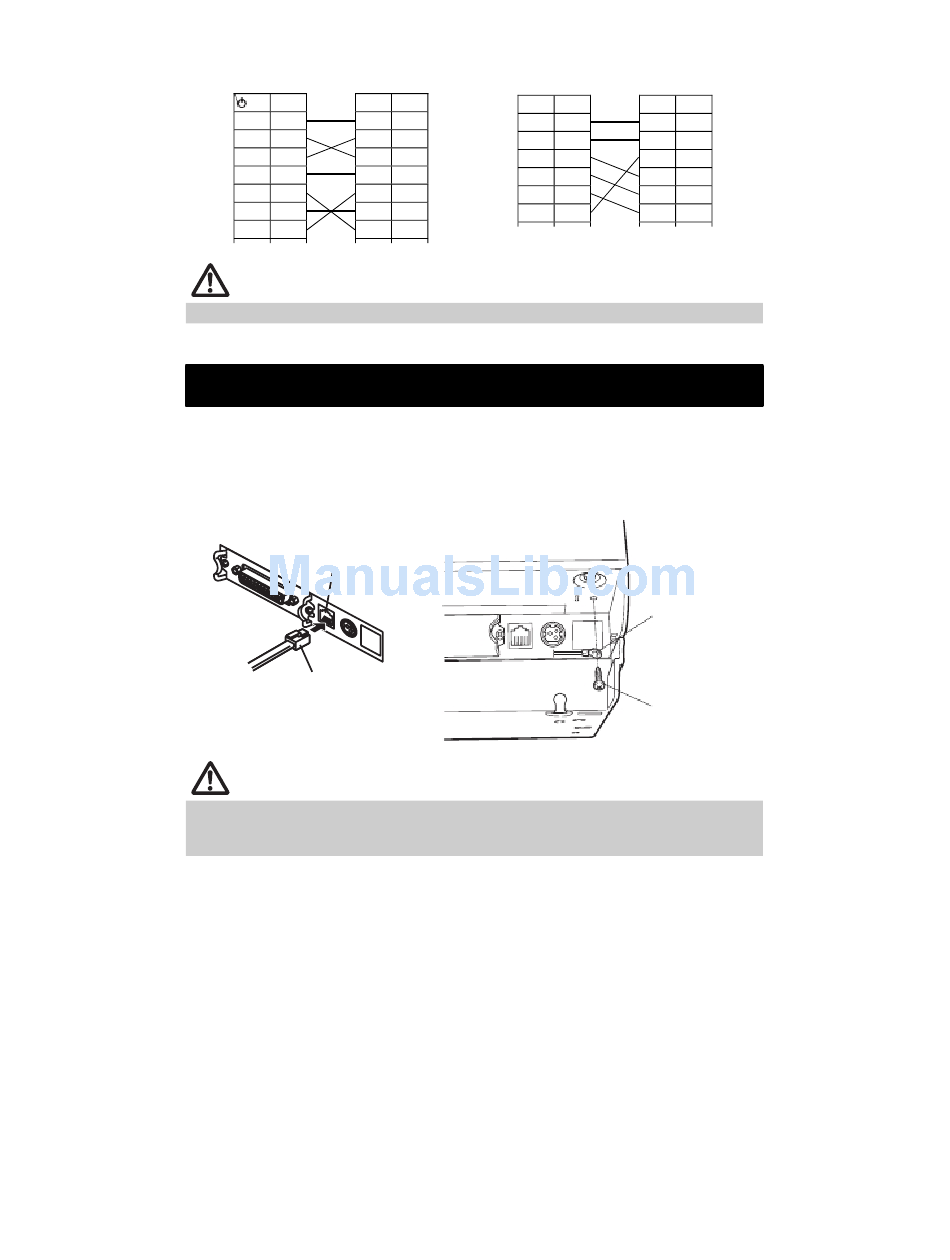

Use a serial interface cable with the connection layout shown below.
25-pin - 25-pin cable
PC
Pin Signal
FG 1 FG
TXD 2 TXD
RXD 3 RXD
CTS 5 CTS
DSR 6 DSR
SG 7 SG
DTR 20 DTR
Pi Si l Pi
CAUTION
Place the interface cable so people do not trip on it.

3.3 Connecting the Cash Drawer

1. Turn off the power.
2. Confirm the orientation of the cash drawer kick-out cable connector and connect it
to the cash drawer kick-out connector at the back of the printer.
Remove the screw for the ground wire.
3.
Screw the cash drawer' s ground wire to the body of the printer.
4.
Cash drawer kick-out
connector
Cash drawer kick-out cable
connector
CAUTION
Connect only the cash drawer kick-out cable connector to the cash drawer kick-out
connector. (Do not connect a telephone line.)
Signals cannot be output from the cash drawer kick-out connector while printing.
9-pin - 25-pin cable
Printer
PC
Pin
Signal Pin
1
FG 1
2
TXD 2
3
RXD 3
5
CTS 5
6
DSR 6
7
SG 7
20
DTR 20
Si l
— 18 —
Printer
Signal Pin
FG 1
TXD 2
RXD 3
CTS 5
DSR 6
SG 7
DTR 20
Ground wire
