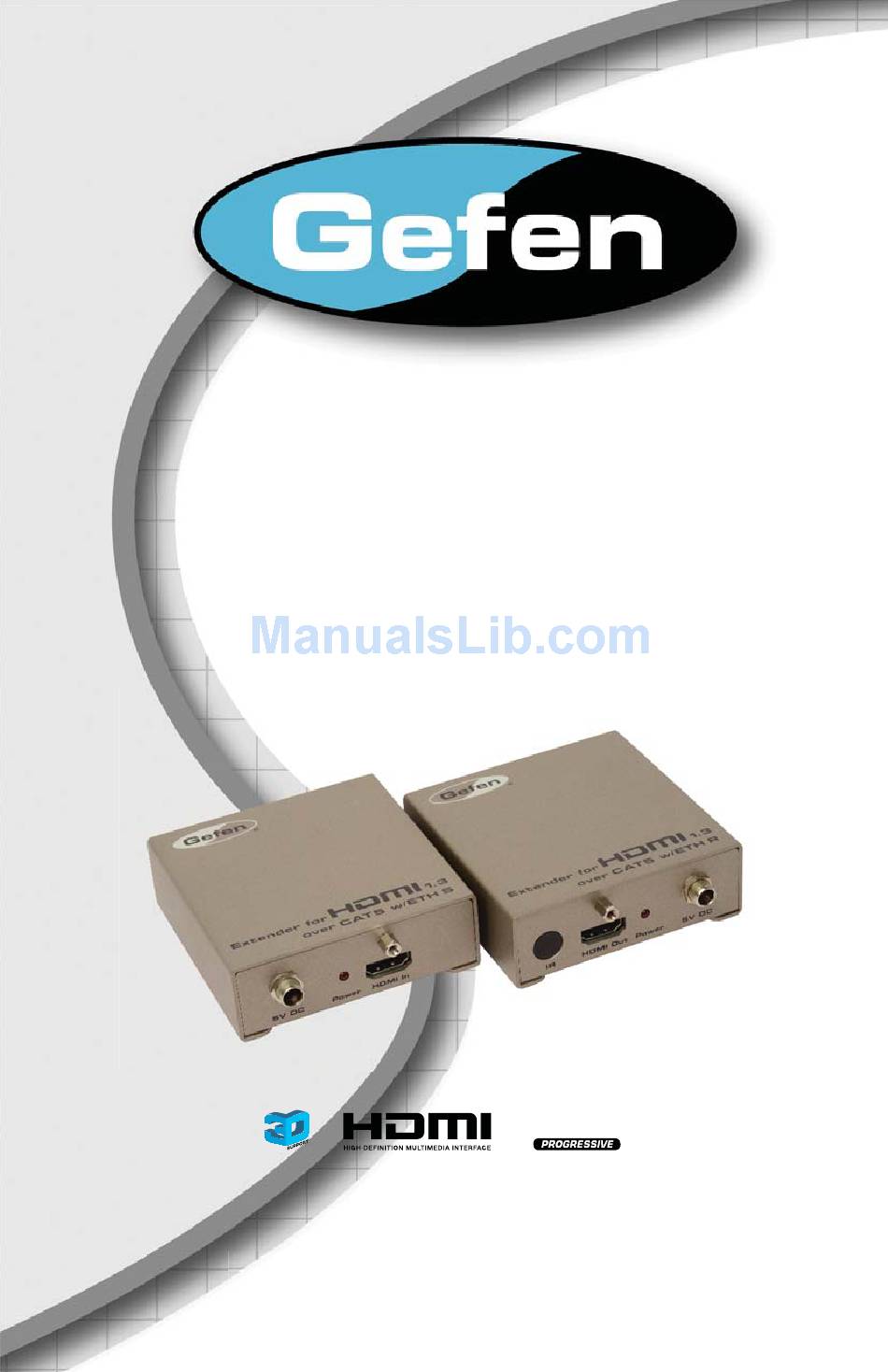

  • Page 1 ® Extender for MI 1.3 over CAT5 with Ethernet EXT-HDMI1.3-CAT5-ELR User Manual ® 1080P ww.gefen.com...
  • Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI 1.3 over CAT5 with Ethernet is a trademark of Gefen, LLC HDMI, the HDMI logo, and High-Defi...

  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting the Extender for HDMI 1.3 over CAT-5 with Ethernet Wiring Diagram Network Cable Wiring Diagram DIP Switches DIP Switch Settings 12 Mounting Plate Installation 13 Terminology 14 Specifi...

  • Page 4: Introduction

    IR Blaster (sold separately). How It Works Connect the Gefen Extender for HDMI 1.3 over CAT5 with Ethernet sender unit to the A/V and Ethernet Source devices such as infrastructure, routers and switches using short HDMI and CAT5 cables.

  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI 1.3 OVER CAT5 WITH ETHERNET • The Extender for HDMI 1.3 over CAT5 with Ethernet units are housed in a metal box for better RF shielding. • CAT-5 cables should not exceed 330 feet.

  • Page 6: Features

    FEATURES HDMI 1.3 Features • 225 MHz (up to 12-bit YUV 444 @ 1080p) • Deep Color • Dolby TrueHD and DTS-HD Master Audio • Lip-Sync • CEC Pass-Through Features • Extends HDMI1.3 at 1080p60 over Ethernet up to 330 feet along with Ethernet and IR commands •...

  • Page 7: Sender Unit Layout

    SENDER UNIT LAYOUT Front Back...

  • Page 8: Sender Unit Descriptions

    Connects the Sender unit to the Receiver unit using CAT-5 cabling. Ethernet Connects the Sender to the network using Ethernet cabling. IR Blaster Connect an IR Blaster cable (Gefen part # EXT-2IREMIT) from this port to the Hi-Def source to control the source from the viewing location.
  • Page 9 RECEIVER UNIT LAYOUT Front Back...

  • Page 10: Receiver Unit Descriptions

    Connect the included 5V DC locking power supply to this connector. Only use the power supply shipped with this unit. Ext IR Connect an IR Extender (Gefen part no. EXT-RMT-EXTIR) cable from this port to the Hi-Def source to extend the IR control. Ethernet Connects the receiver unit to the network device.

  • Page 11: Connecting The Extender For Hdmi 1.3 Over Cat5 With Ethernet

    CONNECTING THE EXTENDER FOR HDMI 1.3 OVER CAT5 WITH ETHERNET Connect the Hi-Def source to the Sender Unit using the included HDMI cable. Use an HDMI cable to connect the HDTV display to the Receiver Unit. Connect the Ethernet device/router to the Ethernet input port on the Sender unit using a CAT-5, CAT-5e or CAT-6 cable.

  • Page 12: Dip Switches

    DIP SWITCHES DIP Switch Location On the bottom of the Extender for HDMI 1.3 with Ethernet Receiver unit there are four (4) DIP switches. The DIP switches allow advanced EDID management of the Extender for HDMI 1.3 with Ethernet which may be necessary when troubleshooting or using different brands of hardware.

  • Page 13: Dip Switch Settings

    DIP SWITCH SETTINGS DIP 1 - EDID Mode ON (default) - External EDID Mode • DDC and HPD are passed through. Both the connection status and the full A/V capabilities of the display. The HPD status will also be detected by the source device.
  • Page 14 NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White...

  • Page 15: Mounting Plate Installation

    MOUNTING PLATE INSTALLATION Remove the rubber feet covering the screws off the bottom of the unit. Remove the screws. Line up the mounting plates and screw it on to the unit.

  • Page 16: Terminology

    TERMINOLOGY CAT-5/CAT5e Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable designed for high signal integrity. The actual standard defi nes specifi c electrical properties of the wire, but it is mostly known as being rated for its Ethernet capability of 100 Mbit/s.

  • Page 17: Specifications

    SPECIFICATIONS Maximum Pixel Clock ................225 MHz Max. Ethernet Data Transfer Rate............100 Mbps Ethernet Packet Transmission Mode (Duplex): ..........Full Video Input Connector (Sender)....... HDMI Type-A, 19-pin, female Link Connector ................RJ-45, shielded Power Input Connector : ............5V DC locking jack Power indicator LED: ........Red (active when unit is powered) Power Consumption ..............

  • Page 18: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 19 Rev A13 Distributed by: 45 Beechwood Dr., North Andover, MA 01845 www.L-com.com Fax: 978-689-9484 E-mail: sales@L-com.com Toll Free: 1-800-343-1455 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
