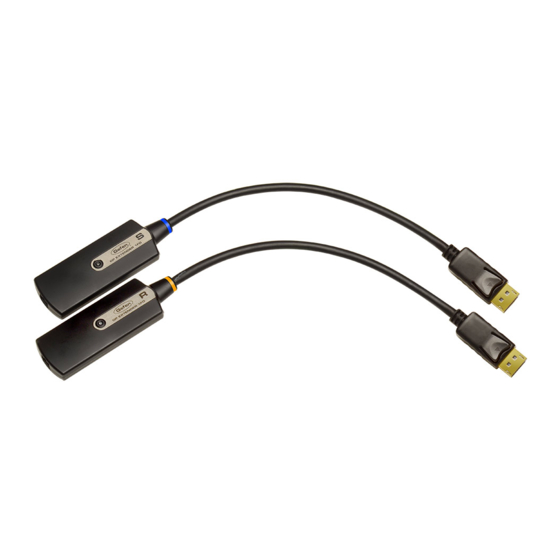

EXT-DP-CP-FM10
User Manual
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
ww.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-DP-CP-FM10 and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen EXT-DP-CP-FM10

Summary of Contents for Gefen EXT-DP-CP-FM10

  • Page 1 ® EXT-DP-CP-FM10 User Manual ww.gefen.com...
  • Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. DP Extender 1FO is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Cable Layout Cable Descriptions Connecting the DP Extender 1FO Wiring Diagram Operating the DP Extender 1FO Specifi cations Warranty...

  • Page 5: Introduction

    INTRODUCTION Congratulations on your purchase of the Gefen DP Extender 1FO. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to install and simple to operate.

  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN DP EXTENDER 1FO • Both the Sender and Receiver pigtail modules have power receptacles and must be connected to the included power supplies for proper operation. • Refer to the chart below for the maximum extension distances based on the type of fi...

  • Page 7: Features

    FEATURES Features • Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125μm multimode (OM2 / OM3) SC-terminated fi ber optic cable • Supports resolutions up to 2560 x 1600 (WQXGA) • Compliant with DisplayPort 1.1 standard •...

  • Page 8: Cable Layout

    CABLE LAYOUT...

  • Page 9: Cable Descriptions

    CABLE DESCRIPTIONS Fiber Optic Connector (Sender module) Connect an SC-terminated fi ber optic cable from the Sender pigtail module to the SC fi ber connector on the Receiver pigtail module. DisplayPort Connector, male (Sender module) Connect this end of the Sender pigtail module to the computer or other DisplayPort source.

  • Page 10: Connecting The Dp Extender 1Fo

    Operation Notes for information on fi ber optic cable-types and distances. Connect the included 5V DC power supplies to both the Sender and Receiver modules. Power-on the display and DisplayPort source. Wiring Diagram for the DP Extender 1FO DISPLAYPORT FIBER OPTIC CABLE Computer Sender nder Receiver eiver DisplayPort Display EXT-DP-CP-FM10...

  • Page 11: Operating The Dp Extender 1Fo

    OPERATING THE DP EXTENDER 1FO Power Indicators The power indicators on both the Sender and Receiver modules of the DP Extender 1FO provide information about the current power state. Normal operation If the power indicator on both the Sender and Receiver module glows bright blue, then both the Sender and Receiver module are powered.

  • Page 12: Specifi Cations

    SPECIFICATIONS Video bandwidth................. 3.5 Gbps/Channel Video Input Connector (Sender)..........(1) DP-20-pin, male Video Output Connector (Receiver)......... (1) DP-20-pin, male Link Connector (Sender/Receiver)......(1) Type SC fi ber (50 /125μm) Power Supply (Sender / Receiver)............5V / 2A DC Power Consumption (Receiver)............1.5W (max.) Operating Temperature..........

  • Page 13: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 16 Rev A4 This product uses UL listed or CE compliant power supplies.
