Summary of Contents for Gefen EXT-3GSDI-FO-141

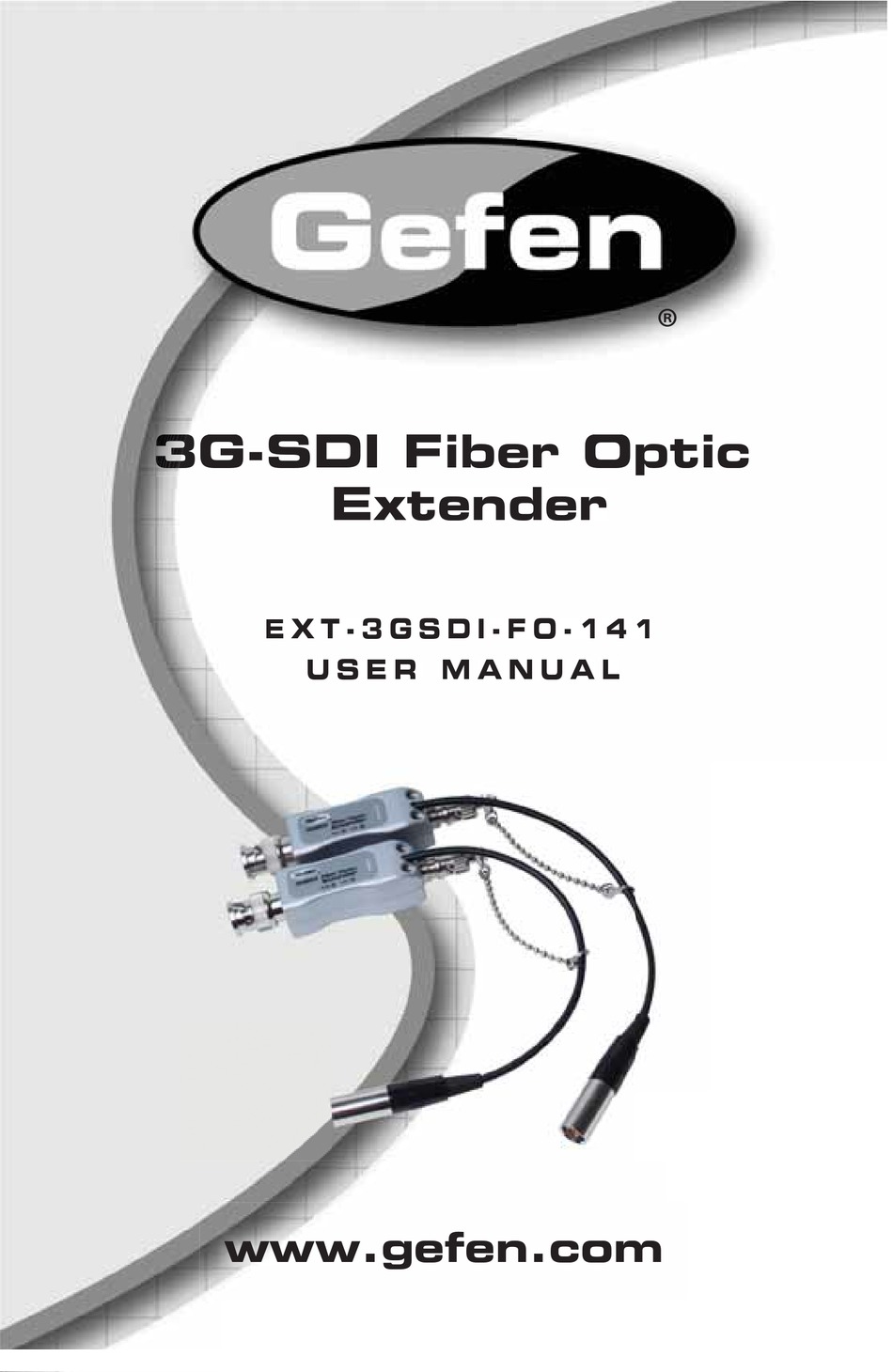

- Page 1 3 3 3 3 3 3 3 3 3 3 3 3 3 G-SDI Fiber Optic Extender E X T - 3 G S D I - F O - 1 4 1 U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 3GSDI Fiber Optic Extender is a trademark of Gefen LLC All trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Connector Layout Connector Descriptions Connecting and Operating The 3GSDI Fiber Optic Extender Troubleshooting Specifi cations Warranty... -
Page 4: Introduction

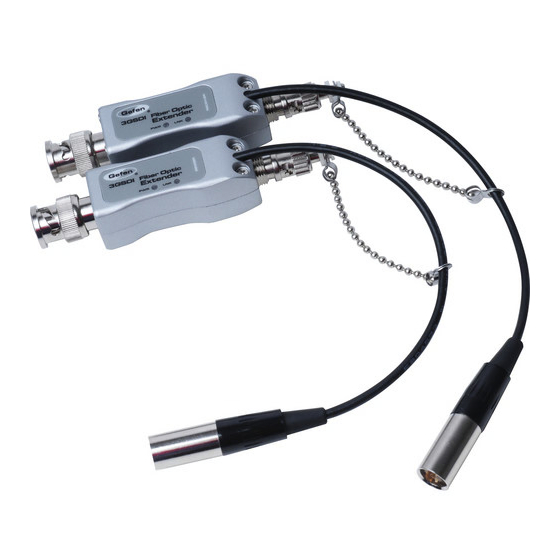

The Gefen 3GSDI Fiber Optic Extender The Gefen 3GSDI Fiber Optic Extender is a miniature digital video data transport system over fi ber optic cable supporting 1080p for 3G-SDI and HD-SDI. It... -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 3GSDI FIBER OPTIC EXTENDER • The use of an intermediate cable or adapter is not recommended. Additional coupling devices may deteriorate the signal transmission. -
Page 6: Features
FEATURES Features • Extends 3G-SDI up to 12 miles (20km) • Transports Multi-rate HD-SDI Digital Video over a single ST fi ber cable. • Supports SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), or SMPTE- 259M (SDI) specifi cations. • Automatic Input Equalization • Latch-Locking Power Connector •... -
Page 7: Connector Layout
CONNECTOR LAYOUT Receiver Sender (shown with protective cover) -
Page 8: Connector Descriptions
CONNECTOR DESCRIPTIONS 3G-SDI BNC Output Connect the Receiver to the input of the SDI display. ST Fiber Connector Input Connect the ST-fi ber cable to this connector. 5V DC Power Supply Connector (Receiver) Connect this cable to the included 5V DC power supply. 3G-SDI BNC Input Connect the Sender to the output of the SDI source. -
Page 9: Connecting And Operating The 3Gsdi Fiber Optic Extender
THE 3GSDI FIBER OPTIC EXTENDER How to Connect the 3GSDI Fiber Optic Extender Connect the Sender of the Gefen 3GSDI Fiber Optic Extender to the 3G-SDI source equipment via the BNC connector. Remove the locking protective cover from the fi ber connector of the Sender and connect one end of the fi... -
Page 10: Troubleshooting
TROUBLESHOOTING No picture / display shows a blank screen • Ensure that all jacks that are used by the 5V DC power supplies are fi rmly connected. • Ensure that the SDI connector is fi rmly plugged in to the SDI source and SDI display. -
Page 11: Specifi Cations
SPECIFICATIONS Input Impedance..................75 Ohm Signal Format: SMPTE-424M (Bit rate: 2.970 Gbit/s)........3G-SDI / HD-SDI SMPTE-292M (Bit rate: 1.485 Gbit/s)...........HD-SDI SMPTE-259M (Bit rates: 360 / 270 / 177 / 143 Mbit/s) ......SDI Recommended Fiber Optic Cable: Single-mode fi ber with 1310, 1550nm of bandwidth and ST-terminated con- nector Data Rate...............3 Gbp/s, single link (max.) Signal Level................800mVp-p +/- 50mV... -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 13 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
