Page 1 ® USB 2.0 LR Extender EXT-USB2.0-LR User’s Manual www.gefen.com...
Page 2: Asking For Assistance
Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. USB 2.0 LR Extender is a trademark of Gefen, LLC ©...
Page 3: Table Of Contents
Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The USB 2.0 LR Extender Troubleshooting 10 Network Cable Wiring Diagram 11 Wiring Diagram 12 Speciﬁ cations 13 Warranty CONTENTS...

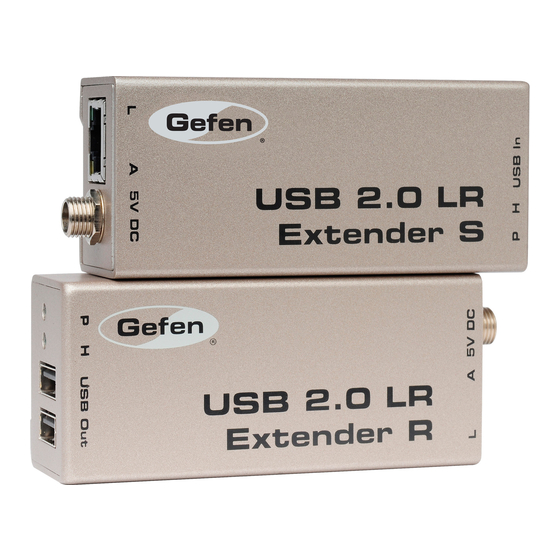

Page 4: Introduction
USB standards. How It Works Gefen’s USB 2.0 LR supports all major operating systems -- Windows, MacOS and Linux. No software drivers are required. The combined length of all cables in the extension (including patch cables) can be up to 330 feet (100m).
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE USB 2.0 LR EXTENDER • Use industry standard CAT-5, CAT-5e or CAT-6. Gefen recommends using solid core cabling for maximum performance. • The USB 2.0 LR Extender is USB 2.0/1.1 compliant •...
Page 6: Features
Receiver supports up to 2 USB powered connections at 500 mA each • Speciﬁ cations: Package Includes (1) Gefen USB 2.0 Extender over CAT5 LR Sender (1) Gefen USB 2.0 Extender over CAT5 LR Receiver (1) 5V DC Power Supply (1) 6 ft. USB Cable (1) User’s Manual...
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel...
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Power LED Indicator This LED will become active once the host computer is connected to the sender unit. Host Connection LED Indicator This LED will become active once a valid connection is made by the host source and the USB 2.0 LR Extender.
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel...
Page 10: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Power LED Indicator This LED will become active once a valid connection is made between the included 5V DC power supply and an open wall power socket. Host Connection LED Indicator This LED will become active once a valid connection is made by the host source and the USB 2.0 LR Extender.
Page 11: Connecting And Operating The Usb 2.0 Lr Extender
CONNECTING AND OPERATING THE USB 2.0 LR EXTENDER How to Connect the USB 2.0 LR Extender Connect the USB source to the USB 2.0 LR Extender sender unit using the supplied USB A to B cable. Connect up to two USB peripherals to the USB 2.0 LR Extender receiver using user supplied USB cables.
Page 12: Troubleshooting
TROUBLESHOOTING Using the LED Indicators to Troubleshoot Issues Power LED The power LED indicators should be active once the included 5V DC power supply has been properly connected between the receiving unit and an open wall power socket. A non-active LED can indicate a power problem. Please check that the power cable is properly connected and locked to the receiver unit.
Page 13: Network Cable Wiring Diagram
Gefen has speciﬁ cally engineered their products to work with the TIA/EIA-568-B speciﬁ cation. Please adhere to the table below when ﬁ eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance.
Page 14: Wiring Diagram
WIRING DIAGRAM...
Page 15: Speciﬁ Cations
SPECIFICATIONS USB 2.0 Speed ... 480 Mbps Link Connectors ... RJ-45 Shielded USB Connectors Transmitter: ... (1) USB type B USB Connectors Receiver: ... (2) USB type A Dimensions Transmitter: ... 1.5” W x 1.2” H x 3.3” D Dimensions Receiver: ... 3.4” W x 1.1” H x 1.3” D USB ...
