Summary of Contents for Gefen EXT-HD-CP-FM10

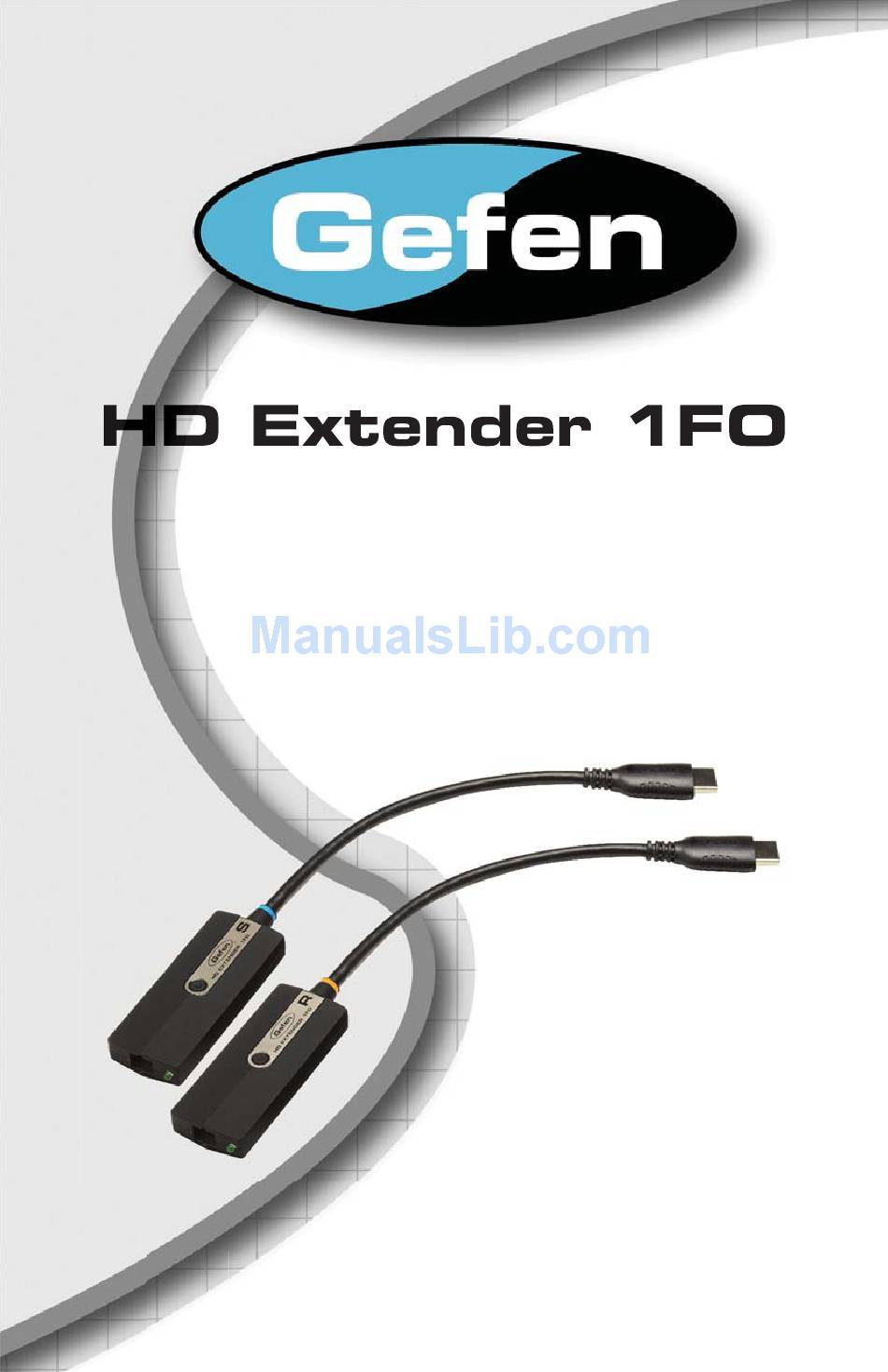

- Page 1 ® EXT-HD-CP-FM10 User Manual ww.gefen.com...
- Page 3 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. HD Extender 1FO is a trademark of Gefen LLC HDMI, the HDMI logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the United States and other countries.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Cable Layout Cable Descriptions Connecting the HD Extender 1FO Wiring Diagram Operating the HD Extender 1FO Specifi cations Warranty... -
Page 5: Introduction

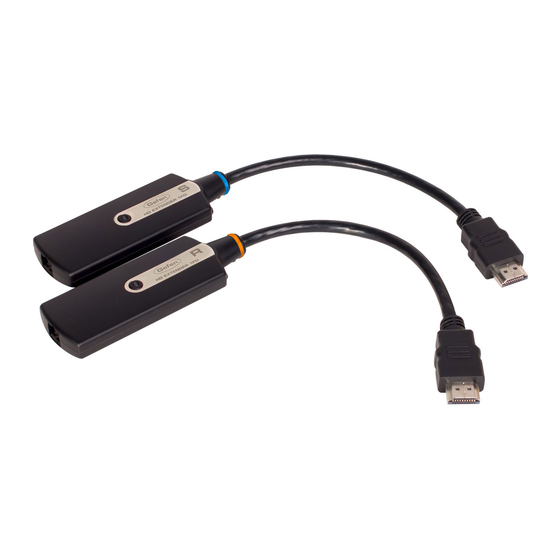

INTRODUCTION Congratulations on your purchase of the Gefen HD Extender 1FO. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to install and simple to operate. -
Page 6: Operation Notes
HDMI connector. If the Sender requires a separate power supply only use Gefen part no. EXT-PS52AIP-1.3. Using a different power supply other than the recommended type may cause fatal damage to the Sender pigtail... -
Page 7: Features
FEATURES Features • Extends HDMI up to 1000 feet (300 meters) using a single-strand 50/125μm multimode (OM2) SC-terminated fi ber optic cable • Supports resolutions up 1080p Full HD • Supports HD lossless audio: LCPM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD®... -
Page 8: Cable Layout
CABLE LAYOUT... -
Page 9: Cable Descriptions
CABLE DESCRIPTIONS Power Indicator (Sender module) This LED will glow bright green when the Hi-Def source is supplying suffi cient power to the Sender module. If the LED fl ashes green, then the source is unable to power the Sender module. See page 7 for more information. Fiber Optic Connector (Sender module) Connect an SC-terminated fi... -
Page 10: Connecting The Hd Extender 1Fo
CONNECTING THE HD EXTENDER 1FO How to Connect the HD Extender 1FO Connect the Sender pigtail module to the Hi-Def source. Connect the Receiver pigtail module to the HDTV display. Connect a single strand of SC-terminated fi ber optic cable between the fi ber optic connectors on the Sender and Receiver pigtail modules. -
Page 11: Operating The Hd Extender 1Fo
Sender module will fl ash bright green. If this is the case, then connect a secondary 5V DC power supply to the power receptacle on the Sender module (use Gefen part no. EXT-PS52AIP-1.3). Sender module... -
Page 12: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock................225 MHz Video Input Connector (Sender)......(1) HDMI Type-A, 19-pin, male Video Output Connector (Receiver)....... (1) HDMI Type-A, 19-pin, male Link Connector (Sender/Receiver)......(1) Type SC fi ber (50 /125μm) Power Supply (Receiver)............... 5V / 2A DC Power Supply (Sender).... -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 16 Rev A1 This product uses UL or CE listed power supplies.
