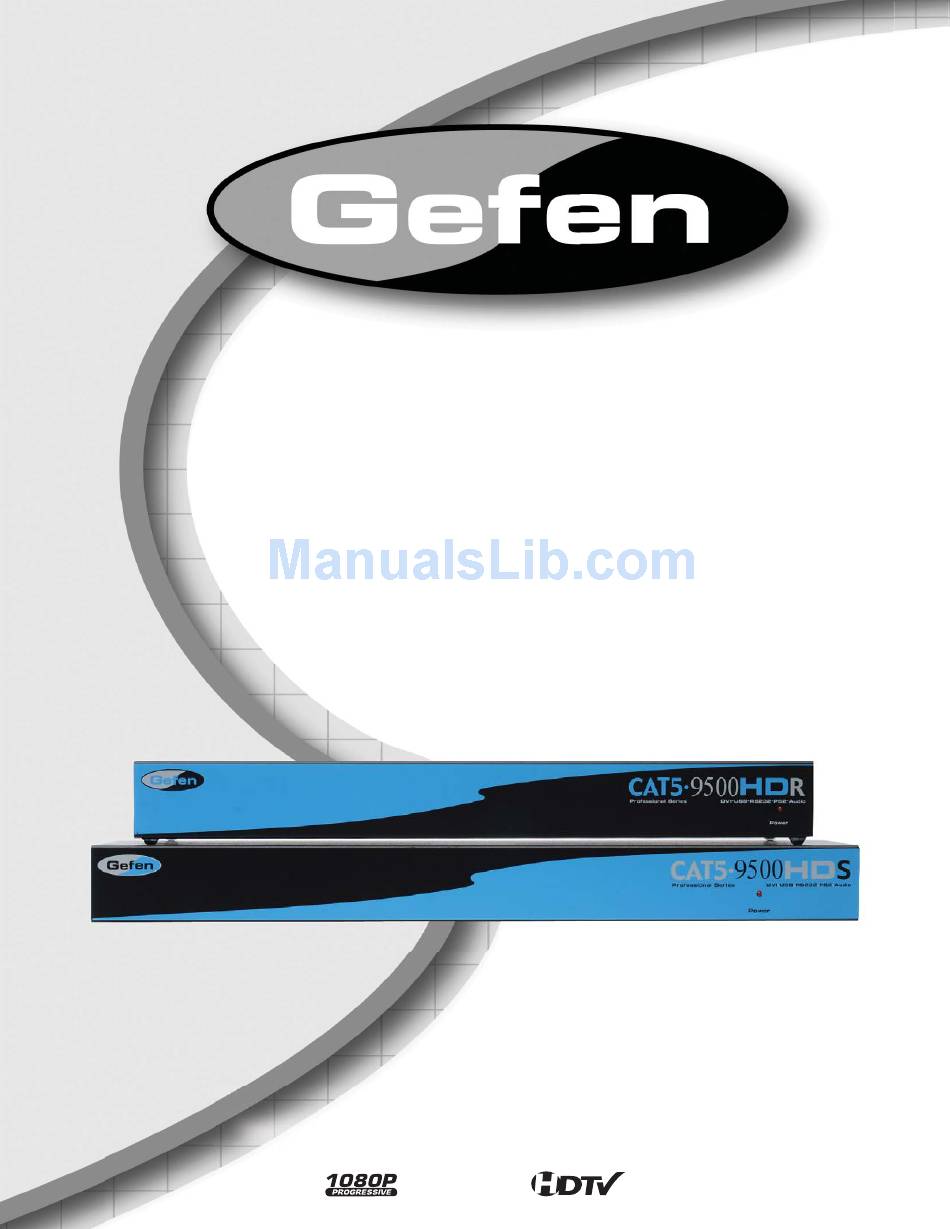

- Page 1 ® CAT5 • 9500HD E X T - C A T 5 - 9 5 0 0 H D U S E R M A N U A L www.gefen.com...
- Page 2 Notice: Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. CAT5•9500HD is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION CONNECTING AND OPERATING THE CAT5•9500HD CAT5•9500HD FRONT PANEL DESCRIPTIONS CAT5•9500HDS BACK PANEL LAYOUT CAT5•9500HDS BACK PANEL DESCRIPTIONS CAT5•9500HDR BACK PANEL LAYOUT CAT5•9500HDR BACK PANEL DESCRIPTIONS CAT5 WIRING DIAGRAM SERVICE SWITCH USAGE GUIDE WIRING DIAGRAM TROUBLESHOOTING TERMINOLOGY SPECIFICATIONS WARRANTY... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the new CAT5•9500HD series by Gefen, Inc. The CAT5•9500HD by Gefen allows users the benefi ts of extending DVI, USB 1.1, PS/2, RS232, and audio signals beyond the desktop. In a growing number of applications, broadcast stations and production facilities there is a need to locate a computer remotely from the keyboard, mouse, and video monitor. -
Page 5: Connecting And Operating The Cat5•9500Hd
CONNECTING AND OPERATING THE CAT5•9500HD READ THESE NOTES BEFORE INSTALLING OR OPERATING THE CAT5•9500HD SYSTEM • Use industry standard Category 5e (CAT-5e) cable to operate the CAT5•9500HD system. • Please connect all the cables between the computer and the CAT5•9500HDS before power up the CAT5•9500HDS unit. -
Page 6: Cat5•9500Hd Front Panel Descriptions
CAT5•9500HDS FRONT PANEL DESCRIPTIONS Front Panel Function Description POWER ON INDICATOR - Indicates that the unit is plugged in and powered on CAT5•9500HDR FRONT PANEL DESCRIPTIONS Front Panel Function Description POWER ON INDICATOR - Indicates that the unit is plugged in and powered on... -
Page 7: Cat5•9500Hds Back Panel Layout
CAT5•9500HDS BACK PANEL LAYOUT... -
Page 8: Cat5•9500Hds Back Panel Descriptions
CAT5•9500HDS BACK PANEL DESCRIPTIONS POWER - 5 VDC external power supply with locking power tip connector CAT5 Video - RJ-45 input extends DVI input with CAT-5 cable CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable DVI IN - DVI Input connects to your computer with the supplied DVI cable USB IN - USB input from computer KEYBOARD - Mini din PS/2 connector connects to PC for keyboard controls... -
Page 9: Cat5•9500Hdr Back Panel Layout
CAT5•9500HDR BACK PANEL LAYOUT... -
Page 10: Cat5•9500Hdr Back Panel Descriptions
CAT5•9500HDR BACK PANEL DESCRIPTIONS POWER - 5 VDC external power supply with locking power tip connector CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable CAT5 Video - RJ-45 input extends video input with CAT-5 cable DVI OUT - DVI output connects to the monitor for local video USB Out - USB Output to devices KEYBOARD - PS/2 output connects to the keyboard... -
Page 11: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 12: Service Switch Usage Guide
SERVICE SWITCH USAGE GUIDE Gefen CAT5 HD products (sender and receiver) both contain a pair of service switches (also called dip switches) located underneath the unit. These service switches are used to select from sets of confi gurations that will equalize the signal to best match the conditions in your setup. -
Page 13: Wiring Diagram
WIRING DIAGRAM... -
Page 14: Troubleshooting
What kind of CAT-5e cable should I be using? Solid core CAT-5e cable rated at 350 Mhz and terminated in 568a or 568b is the minimum requirement. For resolutions greater than 1280x1024 or 1080i, Gefen recommends solid CAT-6 cables. I’m getting no video on the screens, what can I check? First thing to check is make sure that the video CAT5 is linked to the other video CAT5 port and the same with the DDC ports. -
Page 15: Terminology
TERMINOLOGY CAT-5 Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable designed for high signal integrity. The actual standard defi nes specifi c electrical properties of the wire, but it is most commonly known as being rated for its Ethernet capability of 100 Mbit/s. -
Page 16: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ................165 MHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range ................1080p / 1920 x 1200 Video Connector Type ........... DVI-I 29 pin female (digital only) Link Connector .................. -
Page 17: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 19 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
