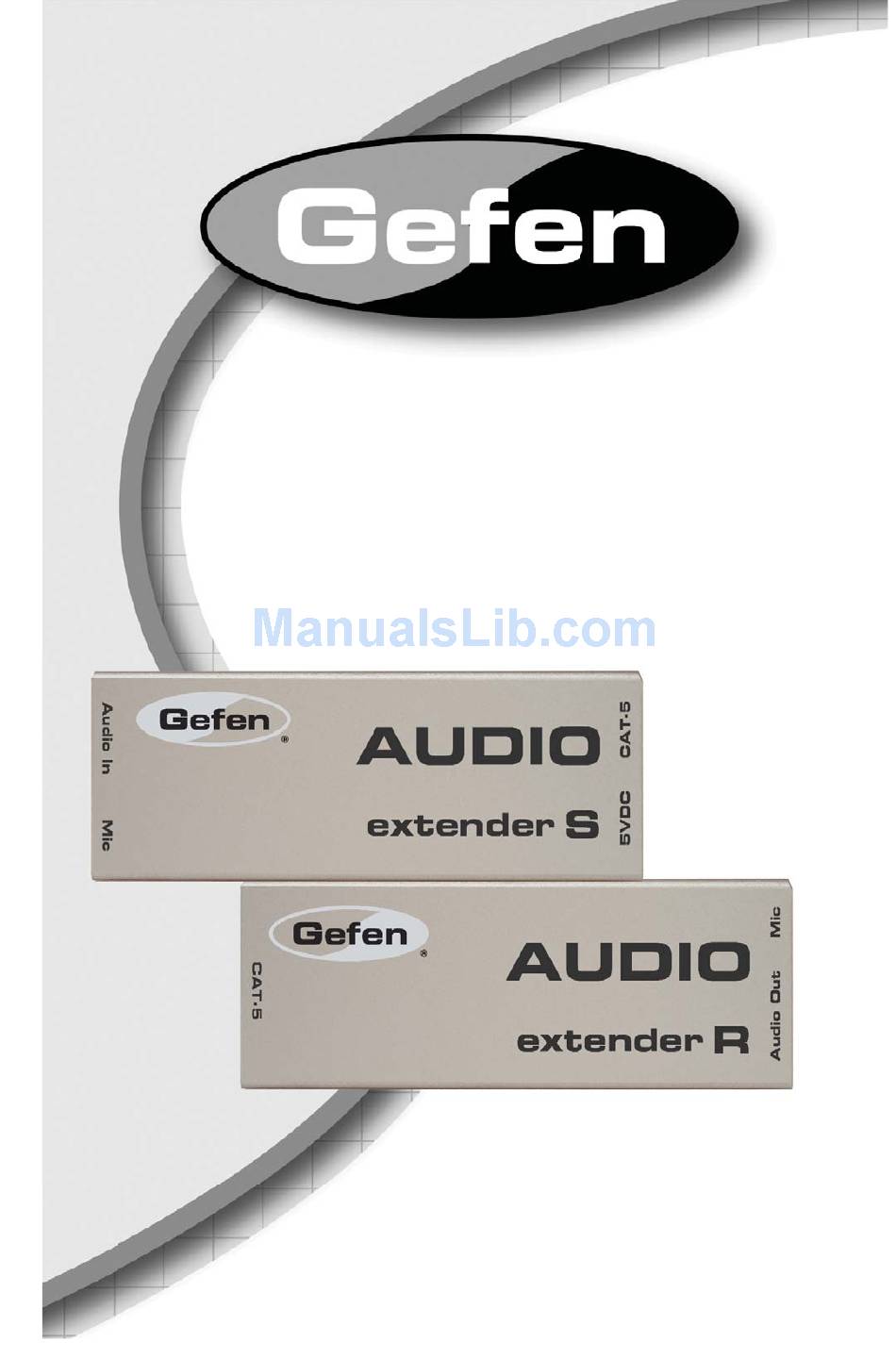

- Page 1 ® Audio Extender E X T - A U D - 1 0 0 0 U S E R M A N U A L www.gefen.com...
- Page 3 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. The Audio Extender is a trademark of Gefen, LLC ©...
- Page 4 TABLE OF CONTENTS Introduction Box Contents How to Connect the Audio Extender Link Cable - Wiring Diagram System Specifi cations Warranty...
-
Page 5: Operation Notes

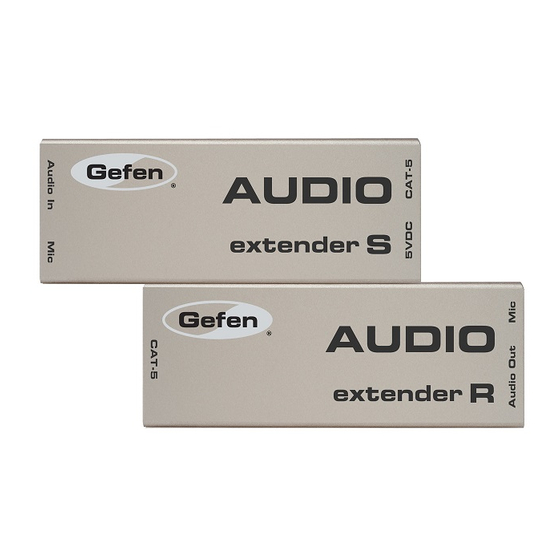

INTRODUCTION Thank you for purchasing the Audio Extender series. Gefen’s line of KVM (Keyboard Video & Mouse), ADC, DVI, USB, switches, extenders, converters and splitters is designed to make computer use more comfortable, more productive and less expensive. KVM switches allow access to multiple computers from a single keyboard, while the extenders give the user control over a computer up to 330 feet away from the work area. - Page 6 FEATURES Features: • Extends any unbalanced analog audio device up to 1000 feet (300 meters) from the source • One CAT-5e cable used for extension • Bidirectional transmission for speaker and microphone Includes: (1) Audio Extender Sender Unit (1) Audio Extender Receiver Unit (1) 5V DC power supply...
- Page 7 HOW TO CONNECT THE AUDIO EXTENDER Power Audio Jack Sender Audio Receiver Power How to Connect the Audio Extender 1- Connect the supplied Audio cables from the source Audio port into the Audio extender send unit. 2- Connect the CAT5 cable from the send unit to the receive unit.
- Page 8 LINK CABLE - WIRING DIAGRAM...
-
Page 9: Specifications
SPECIFICATIONS Sample Rate ....... 5 kHz (min) - 48 kHz (max) Frequency Re............ 20Hz - 20kHz Input/Output ..........mini-stereo 3.5mm Link Connec ........... RJ-45 Shielded Power Consumptio..........5 Watts (max) Power Su ............. 5 VDC (External) Dimensions ........1 1/4”H x 1 1/2”W x 2.75”D Weight ................ -
Page 10: Product Registration
The information in this manual has been carefully checked and is believed to be accurate. However, Gefen assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. - Page 11 Rev B1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
