Surround sound and the PRE

40
It would seem that there is no way to properly integrate a surround sound
processor with a preamplifier for a high quality, dual-purpose system.
The PRE solves this dilemma by virtue of a specially designed surround sound
processor interface. The
tape2/ssp
• as a normal tape2
inappropriate for a surround sound processor)
• as an input (which passes the front Left and Right outputs of
ssp
your surround sound processor through to the power amplifier
without any change in volume or balance)
• the PRE may be "toggled" between these two modes by pressing
and holding the
tape2/ssp
color (amber for
tape2
When using the " " input of the PRE, the volume and balance controls are
ssp
defeated and the preamplifier operates in unity gain mode. This feature yields
control over the volume of the various loudspeakers to the surround sound
processor, where it belongs during surround sound playback.

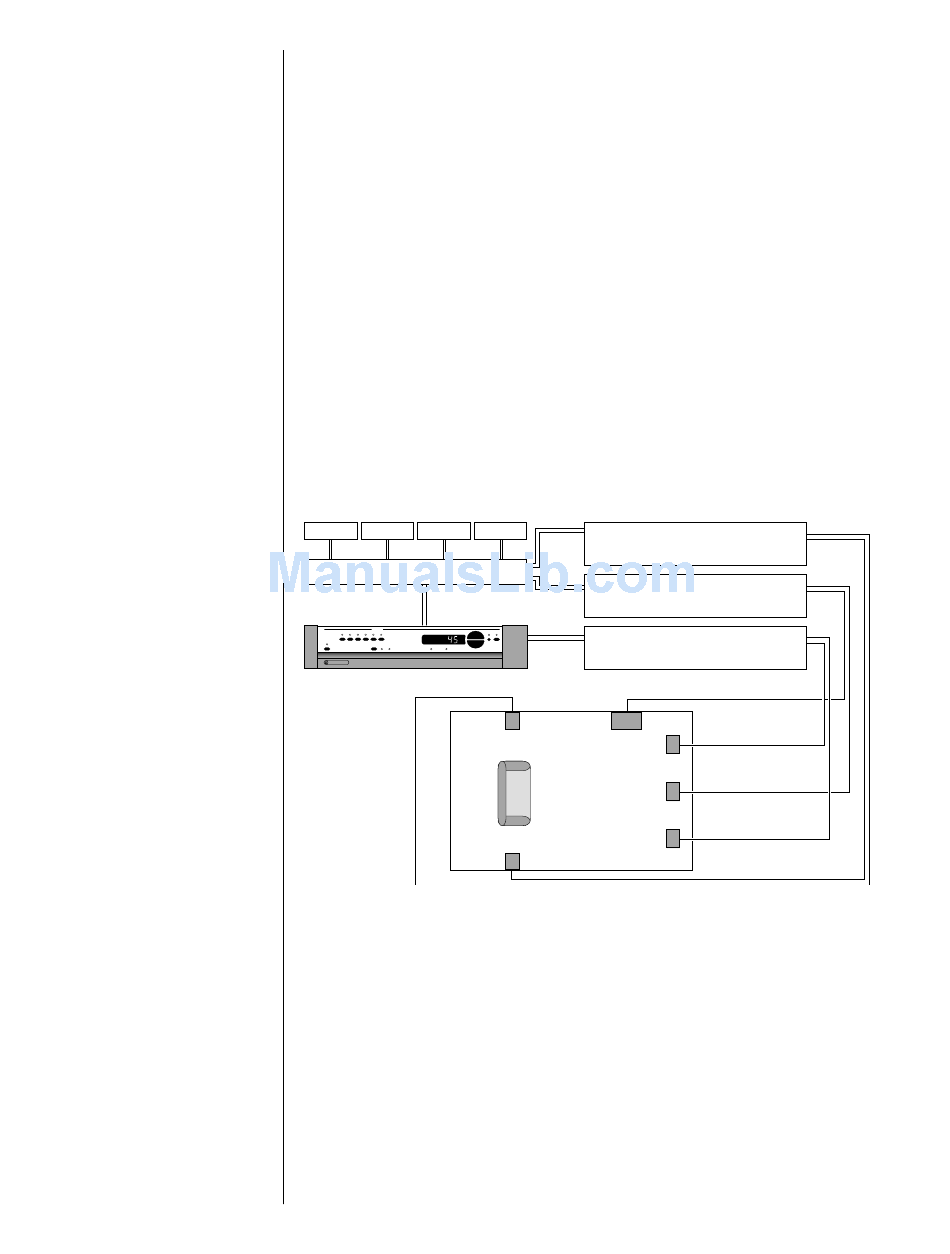

video 1 video 2 video 3
