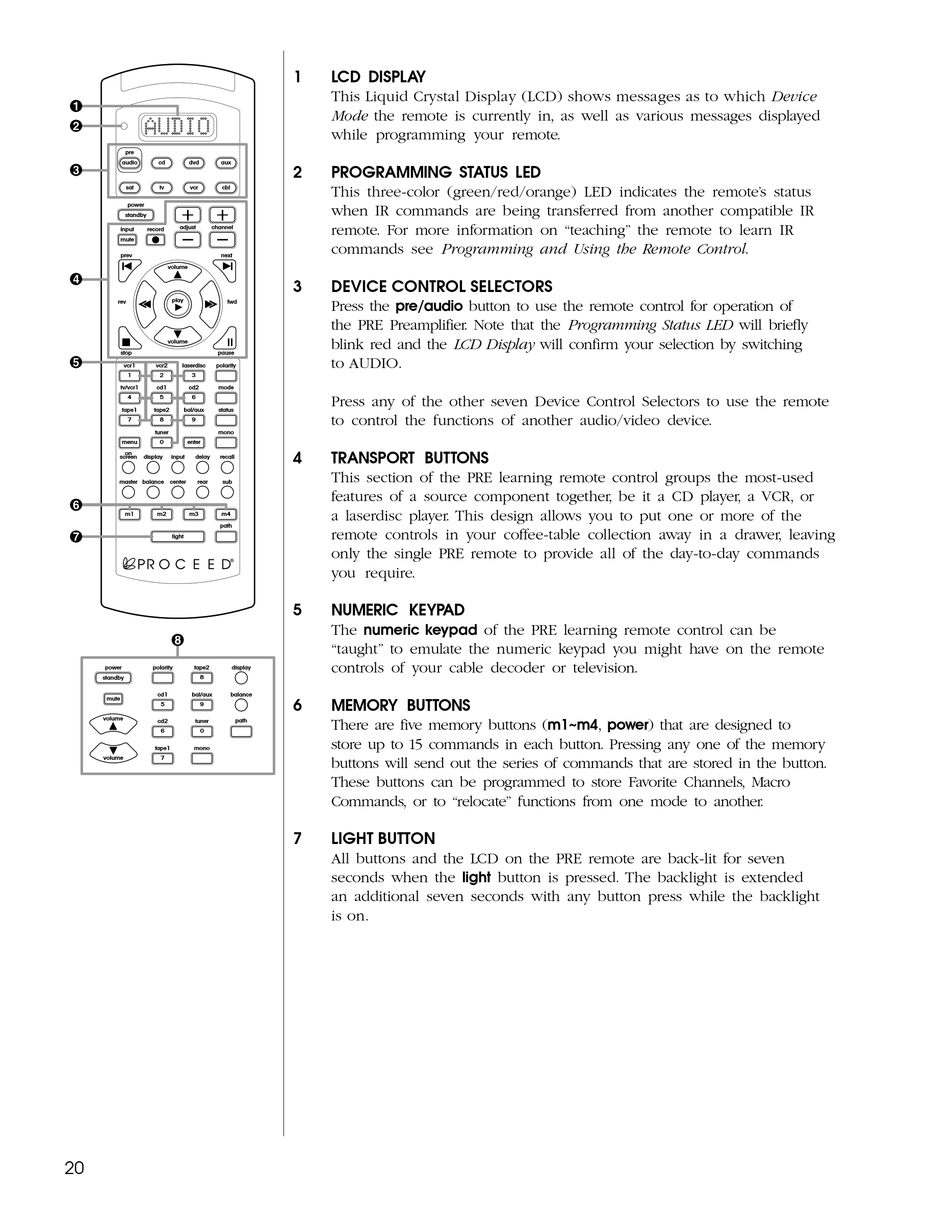

1 LCD DISPLAY
This Liquid Crystal Display (LCD) shows messages as to which Device
Mode the remote is currently in, as well as various messages displayed
while programming your remote.
2 PROGRAMMING STATUS LED
This three-color (green/red/orange) LED indicates the remote's status
when IR commands are being transferred from another compatible IR
remote. For more information on "teaching" the remote to learn IR
commands see Programming and Using the Remote Control.
3 DEVICE CONTROL SELECTORS
Press the
pre/audio
the PRE Preamplifier. Note that the Programming Status LED will briefly
blink red and the LCD Display will confirm your selection by switching
to AUDIO.
Press any of the other seven Device Control Selectors to use the remote
to control the functions of another audio/video device.
4 TRANSPORT BUTTONS
This section of the PRE learning remote control groups the most-used
features of a source component together, be it a CD player, a VCR, or
a laserdisc player. This design allows you to put one or more of the
remote controls in your coffee-table collection away in a drawer, leaving
only the single PRE remote to provide all of the day-to-day commands
you require.
5 NUMERIC KEYPAD
The numeric keypad
"taught" to emulate the numeric keypad you might have on the remote
controls of your cable decoder or television.
6 MEMORY BUTTONS
path There are five memory buttons (
store up to 15 commands in each button. Pressing any one of the memory
buttons will send out the series of commands that are stored in the button.
These buttons can be programmed to store Favorite Channels, Macro
Commands, or to "relocate" functions from one mode to another.
7 LIGHT BUTTON
All buttons and the LCD on the PRE remote are back-lit for seven
seconds when the
an additional seven seconds with any button press while the backlight
is on.
button to use the remote control for operation of
of the PRE learning remote control can be
,
m1~m4 power
button is pressed. The backlight is extended
light
) that are designed to
