P/2 DA2xi &

P/2 DA2xi MT

TWO OUTPUT VGA-UXGA

DISTRIBUTION AMPLIFIERS

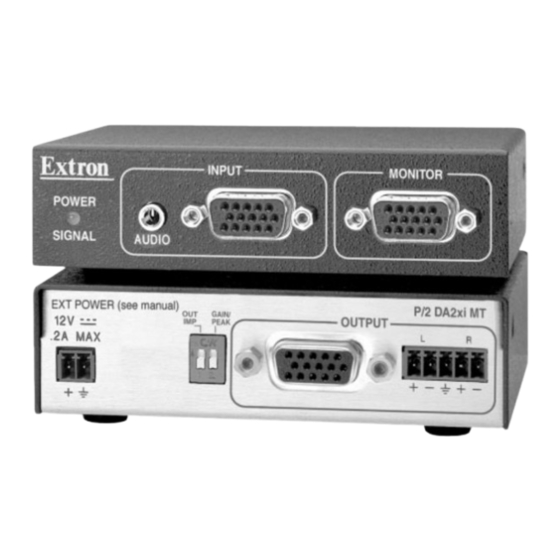

The Extron P/2 DA2xi and P/2 DA2xi MT (with audio) are compact, one input,

two output, high performance distribution amplifiers. Both models are housed

in sturdy metal enclosures and offer a variety of versatile mounting options for

simple, space saving installations.

P/2 DA2xi MT

DISTRIBUTION AMPLIFIERS

Small, rugged metal enclosure

VGA connector or the included

external desktop power supply

Power and source signal indicator

350 MHz (-3dB) RGB video

bandwidth

One input, two buffered 15-pin HD

outputs

Active PC Audio interfacing

(P/2 DA2xi MT only)

Gain and peaking (DIP switch-

selectable)

Includes input VGA cable

www.extron.com

Need help?

Do you have a question about the P/2 DA2xi and is the answer not in the manual?

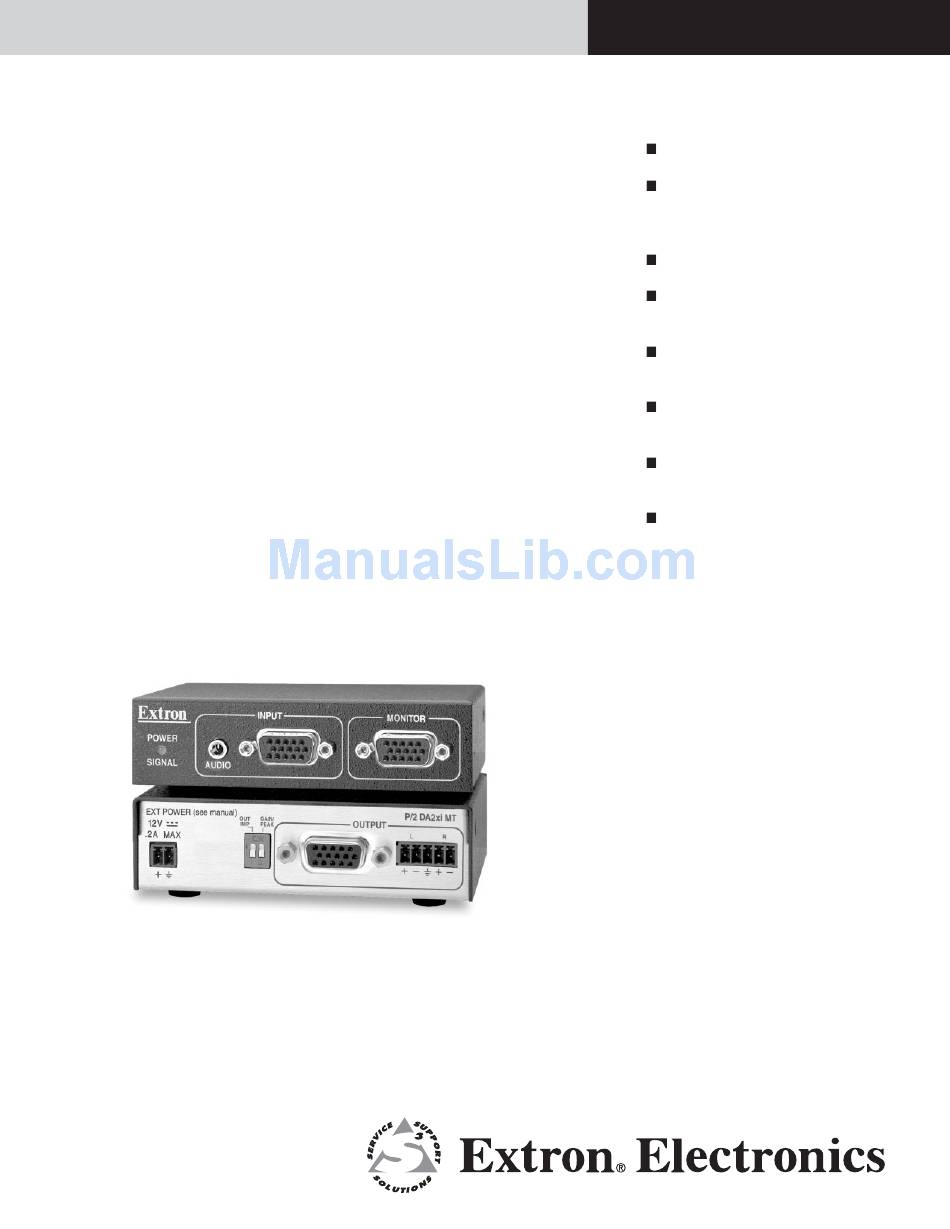

Page 1 Includes input VGA cable P/2 DA2xi MT The Extron P/2 DA2xi and P/2 DA2xi MT (with audio) are compact, one input, two output, high performance distribution amplifiers. Both models are housed in sturdy metal enclosures and offer a variety of versatile mounting options for simple, space saving installations.
Page 2 VGA with audio cable. Power Options The P/2 DA2xi and P/2 DA2xi MT can both be powered via pin 9 of a newer computer’s VGA connector. Pin 9 effectively becomes a +5VDC power source, provided the computer has a graphic card that complies with the VESA DDC standard.
Page 3: Video Output
Horizontal frequency ......15 kHz to 135 kHz Vertical frequency......30 Hz to 170 Hz Power..........P/2 DA2xi requires 0.1 A, and P/2 DA2xi MT Return loss ........<-38dB @ 5 MHz requires 0.2 A via pin 9 of the VGA input of a Maximum DC offset......
Page 4 P/2 DA2xi MT Distribution Amplifier ANEL RAWINGS INPUT MONITOR INPUT MONITOR AUDIO P/2 DA2xi Front P/2 DA2xi MT Front GAIN/ EXT POWER (see manual) GAIN/ P/2 DA2xi MT EXT POWER (see manual) P/2 DA2xi OUT IMP PEAK OUT IMP PEAK...
