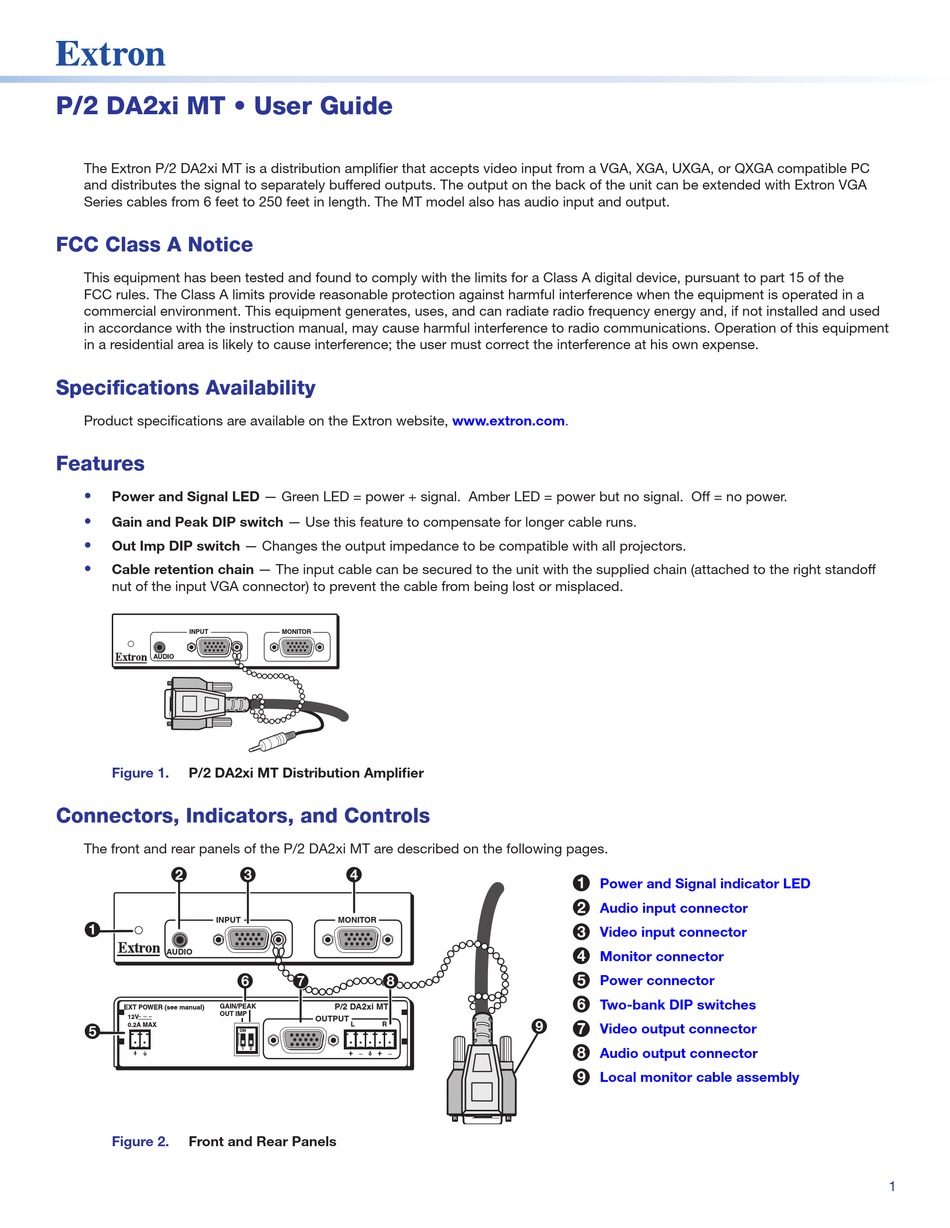

P/2 DA2xi MT • User Guide
The Extron P/2 DA2xi MT is a distribution amplifier that accepts video input from a VGA, XGA, UXGA, or QXGA compatible PC
and distributes the signal to separately buffered outputs. The output on the back of the unit can be extended with Extron VGA
Series cables from 6 feet to 250 feet in length. The MT model also has audio input and output.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause interference; the user must correct the interference at his own expense.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Features

•
Power and Signal LED — Green LED = power + signal. Amber LED = power but no signal. Off = no power.
•
Gain and Peak DIP switch — Use this feature to compensate for longer cable runs.
•
Out Imp DIP switch — Changes the output impedance to be compatible with all projectors.
•
Cable retention chain — The input cable can be secured to the unit with the supplied chain (attached to the right standoff
nut of the input VGA connector) to prevent the cable from being lost or misplaced.
INPUT
AUDIO
Figure 1. P/2 DA2xi MT Distribution Amplifier

Connectors, Indicators, and Controls

The front and rear panels of the P/2 DA2xi MT are described on the following pages.
2
INPUT
1
AUDIO
GAIN/PEAK
EXT POWER (see manual)
OUT IMP
12V
0.2A MAX
5
Figure 2. Front and Rear Panels
MONITOR
3 4
MONITOR
6 7 8
7 8
P/2 DA2xi MT
OUTPUT
L R
ON
1 2
1 Power and Signal indicator LED
2 Audio input connector
3 Video input connector
4
Monitor connector
5 Power connector
6 Two-bank DIP switches
9
7 Video output connector
8 Audio output connector
9
Local monitor cable assembly
