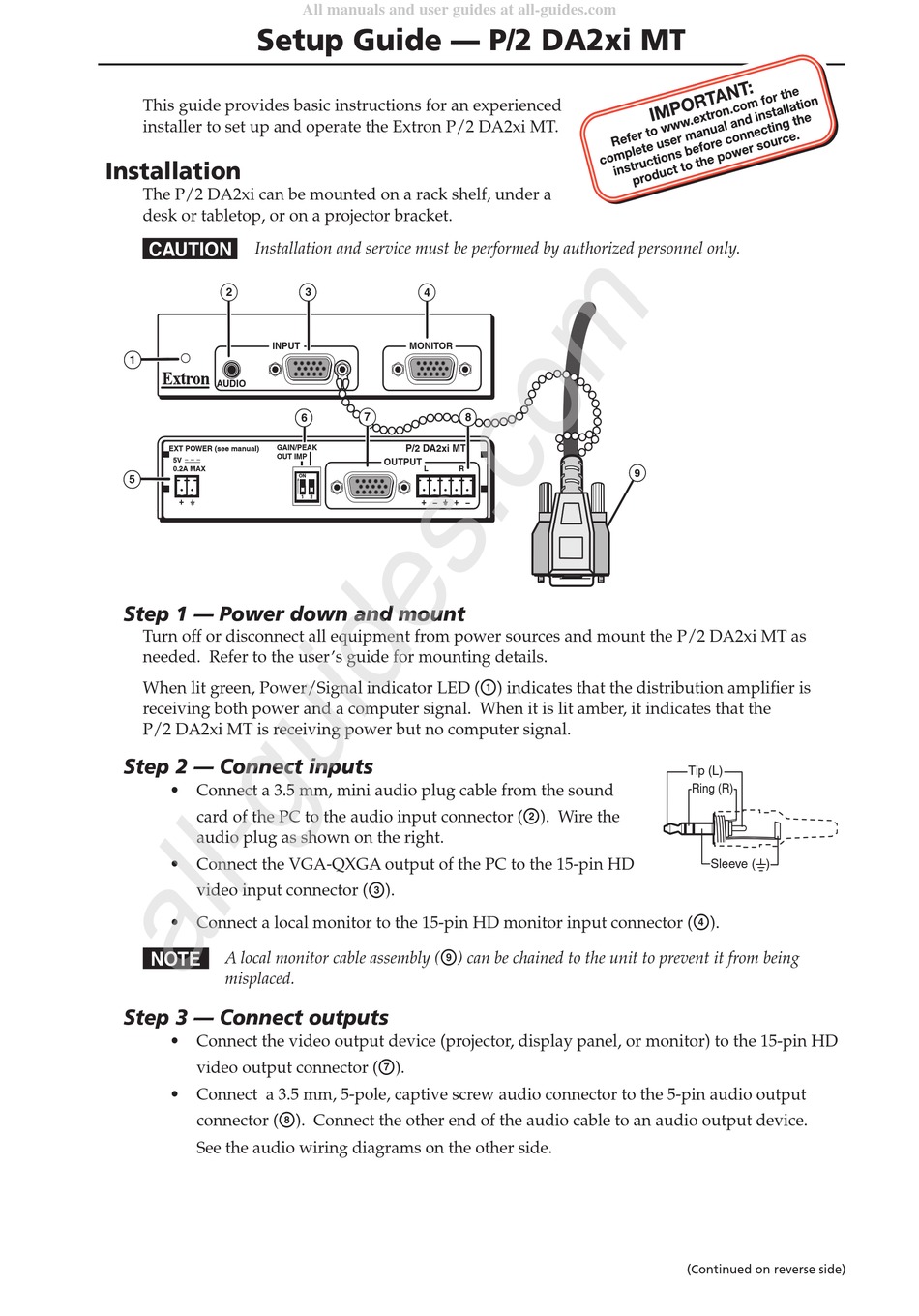

Setup Guide — P/2 DA2xi MT
This guide provides basic instructions for an experienced
installer to set up and operate the Extron P/2 DA2xi MT.

Installation

The P/2 DA2xi can be mounted on a rack shelf, under a
desk or tabletop, or on a projector bracket.
Installation and service must be performed by authorized personnel only.
C
2
INPUT
1 7
AUDIO
GAIN/PEAK
EXT POWER (see manual)
OUT IMP
5V
0.2A MAX
7 5
Step 1 — Power down and mount
Turn off or disconnect all equipment from power sources and mount the P/2 DA2xi MT as
needed. Refer to the user's guide for mounting details.
When lit green, Power/Signal indicator LED (
receiving both power and a computer signal. When it is lit amber, it indicates that the
P/2 DA2xi MT is receiving power but no computer signal.
Step 2 — Connect inputs
• Connect a 3.5 mm, mini audio plug cable from the sound
card of the PC to the audio input connector (
audio plug as shown on the right.
• Connect the VGA-QXGA output of the PC to the 15-pin HD
video input connector (
• Connect a local monitor to the 15-pin HD monitor input connector (
A local monitor cable assembly (
N
misplaced.
Step 3 — Connect outputs
• Connect the video output device (projector, display panel, or monitor) to the 15-pin HD
video output connector (
• Connect a 3.5 mm, 5-pole, captive screw audio connector to the 5-pin audio output
h
connector (
See the audio wiring diagrams on the other side.
All manuals and user guides at all-guides.com
3 6
4
MONITOR
6 7 6 8
6 6
P/2 DA2xi MT
OUTPUT
L R
ON
1 2
c
).
i
) can be chained to the unit to prevent it from being
g
).
). Connect the other end of the audio cable to an audio output device.
6 9
a
) indicates that the distribution amplifier is
b
). Wire the
Tip (L)
Ring (R)
Sleeve ( )
d
).
(Continued on reverse side)
