Extron electronics P/2 DA2 AAP Specification Sheet

P/2 DA2 WM F Series
Wall-Mountable Two Output VGA Distribution Amplifiers with Audio
Common feAtures
Input: One female 15-pin HD connector and 3.5 mm stereo mini jack
•
Outputs: Two buffered female 15-pin HD connectors and captive
•
screw connectors
300 MHz (-3 dB) RGB video bandwidth, fully loaded
•
Compatible with VGA-QXGA resolutions
•
Three position peaking/gain control helps maintain signal integrity over
•
long cable runs
Balanced or unbalanced audio output
•
Active PC audio interfacing
•
ID bits routed to local monitor output
•
ID bit termination provided
•
Dual color power/signal LED
•
External universal power supply included, part # 70-055-01
•
DesCriPtion

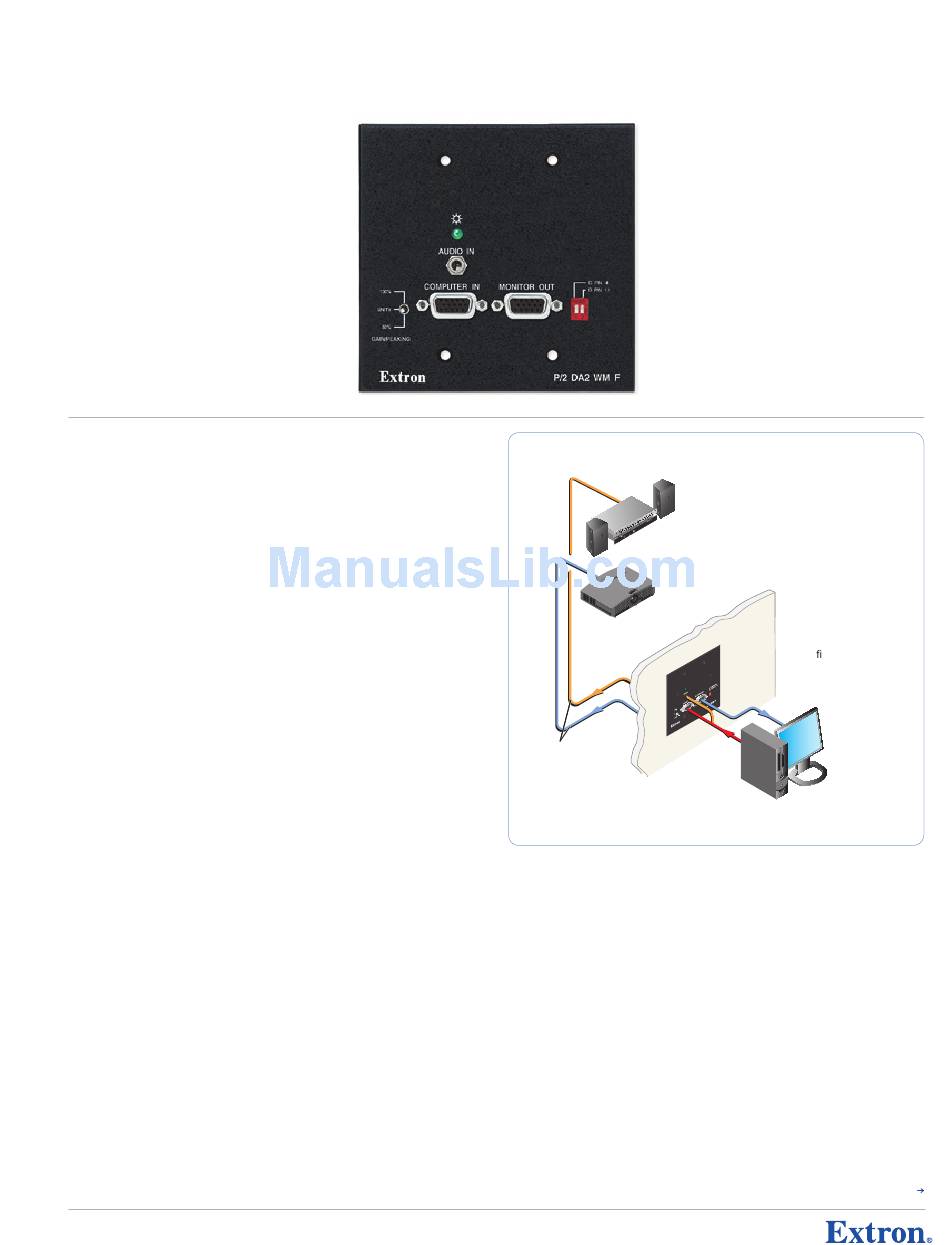

The Extron P/2 DA2 WM F is a wall-mountable, one input, two output, high resolution VGA
distribution amplifier with audio. With 300 MHz (-3 dB) RGB video bandwidth, the P/2 DA2 WM F
is compatible with VGA-QXGA graphic cards, projectors and flat panel displays. Each VGA
output is individually buffered. The P/2 DA2 WM F accepts computer-video on a 15-pin HD
female connector.
Enclosed in a two-gang box, the P/2 DA2 WM F comes with a black, white, or RAL9010 white
wall plate and fits flush into a wall, podium, or table.
The P/2 DA2 WM F is available in an EC model, the P/2 DA2 EC F, that is compatible with
European channel mounting systems.
The P/2 DA2 WM F AAP and P/2 DA2 EC F AAP include openings for up to four Extron
single space AAP - Architectural Adapter Plates. There are hundreds of AAPs available that
offer various audio and video pass-through connectors for additional signal connections. AAPs
sold separately.
europe europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
c o m p u t e r & r G b D i s t r i b u t i o n A m p l i f i e r s
754 IER
APA AMPLIF
AUDIO POWER
2
1 CH
CH
CT
CLIP PROTE Sound System
RS-232 NORM SIGNAL
UT PANEL
LOCKO FRONT
Projector
W ER
PO
AU TO
10 0%
IT Y
UN
G
K IN
50 %
N /P EA
G AI
VGA Cable
and Audio Cable
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
Extron
P/2 DA2 WM F
VGA Distribution
Ampli er
PC with Audio
Continued
