Extron electronics P/2 DA2xi Setup Manual

This guide provides basic instructions for an experienced
installer to set up and operate the Extron P/2 DA2xi.

Installation

The P/2 DA2xi is a high performance one input, two
output distribution amplifier that accepts video input from

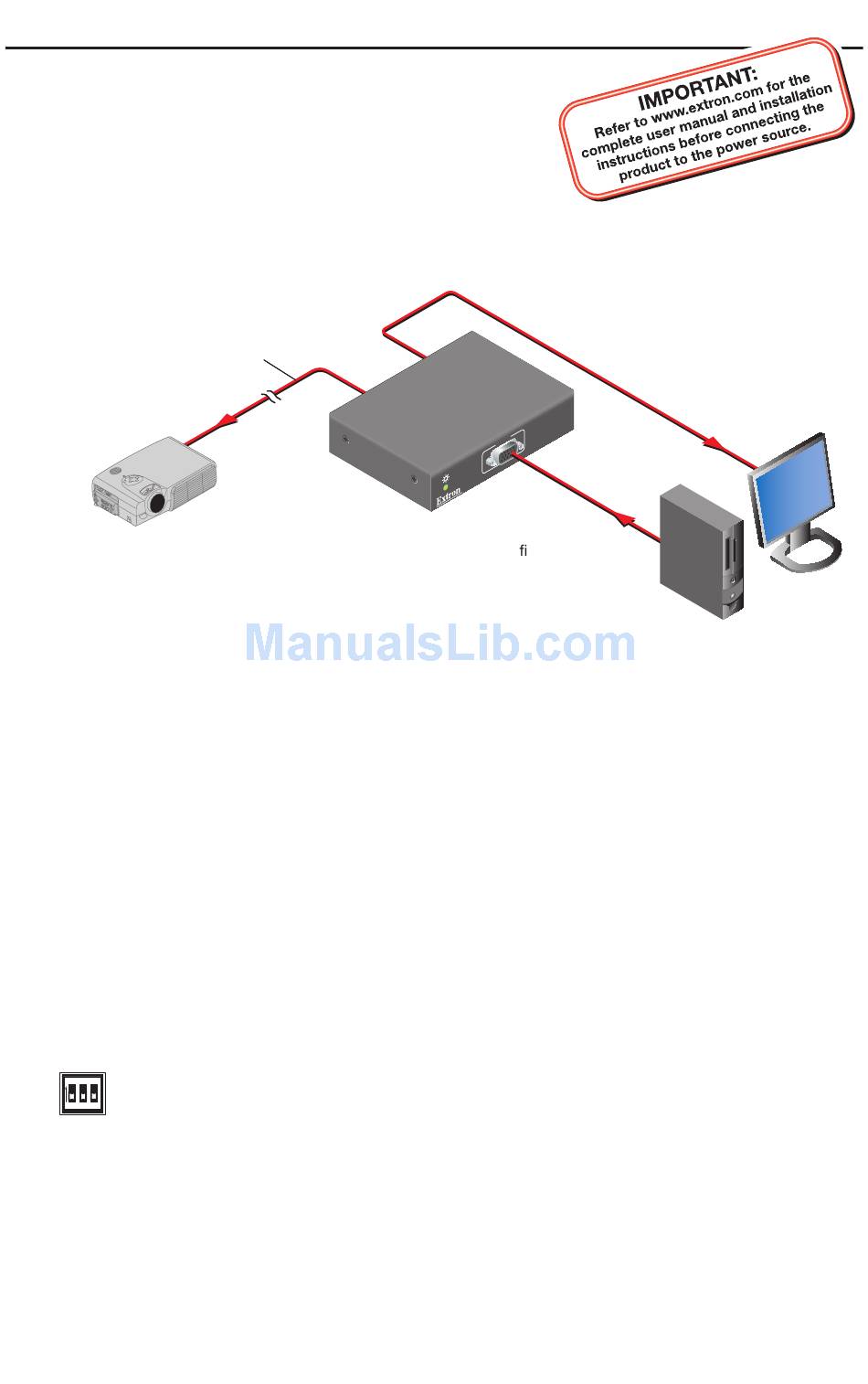

a VGA-QXGA compatible PC and distributes that signal to separately buffered outputs. See
the following application diagram.
Extron
VGA Cable
Up to 250 feet (76 m)
Projector
C
Step 1 — Power down
Power off the display device, the PC, and the PC's local monitor.
Step 2 — Connect input
Connect the PC's VGA output to the 15-pin HD Input on the front panel of the P/2 DA2xi
distribution amplifier.
Step 3 — Connect outputs
• Connect the PC's monitor to the Local Monitor 15-pin HD output connector of the
P/2 DA2xi.
• Connect the display device to the Output 15-pin HD connector of the P/2 DA2xi.
Step 4 — Set DIP switches
Set DIP switches 1 and 2 for input and output impedance and set DIP switch 3 for
gain/peaking:
Switch 1 (sync input impedance) – Default setting is down
1 2 3
ON
(510 ohms). If the image from a laptop computer becomes unstable, slide the switch
ON
up (10k ohms).
1 2 3
OFF
Switch 2 (sync output impedance) – Default setting is up (50 ohms). If the front LED
is green and all the input and output cables are properly connected, but there is no
image at the projector, slide the switch down (75 ohms).
Switch 3 (video gain/peaking) – Slide the switch down (off) if the output cable
length is under 100 feet (30 m). Slide the switch up (on) if the output cable length is
over 100 feet (30 m).
N
Setup Guide — P/2 DA2xi
Installation and service must be performed by authorized personnel only.
The gain/peaking switch does not affect the local monitor output.
T
P U
I N
Extron
P/2 DA2xi
VGA Distribution Ampli er
PC
(Continued on reverse side)
