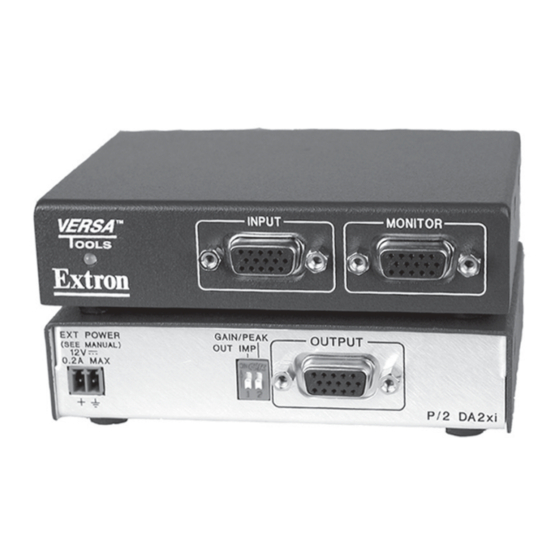

Extron electronics Extron P/2 DA2xi User Manual

General
Power ................................................ +5VDC from pin 9 of the VGA input of a PC
Or .......................................... 100VAC to 240VAC, 50/60 Hz, 5 watt,
Temperature/humidity ................. Storage -40° to +158°F (-40° to +70°C) / 10%
Rack mount ...................................... Yes, with optional 1U VersaTools rack shelf,
Enclosure type ................................. Metal
Enclosure dimensions .................... 1" H x 4.3" W x 3" D
Product weight ................................ 0.5 lbs (0.3 kg)
Shipping weight .............................. 3 lbs (1.4 kg)
Vibration ........................................... ISTA/NSTA 1A in carton (International Safe
Listings .............................................. UL, CUL
Compliances .................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ................................................. 30,000 hours
Warranty ........................................... 3 years parts and labor
Specifications are subject to change without notice.
FCC Class A Notice
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his
own expense.
Note: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to ensure compliance.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com
Fax 714.491.1517 Fax +31.33.453.4050
© 2003 Extron Electronics. All rights reserved.
that complies with VESA DCC version 3
external, autoswitchable; to 12VDC, 1A
power supply. P/2 DA2xi and P/2 DA2xi MT
require 0.2A.
to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) / 10%
to 90%, non-condensing
part #60-190-20 or Universal rack shelf, part
#60-190-01
2.5 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.)
Transit Association)
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide
P/2 DA2xi
P/2 DA2xi MT
Distribution Amplifiers
68-713-01 Rev. C
Printed in the USA
06 03
