Intelix DIGI-HD-4X8 Installation Manual page 9

EDID Copy Operation
The DIGI-HD-4X8 allows custom EDID information to be copied from an output to be stored at each
input. One EDID table can be stored at each input. This table is stored until it is overwritten by
performing a new copy.
1. Determine the output you would like to copy from and the input you would like to copy it to.
2. Power off the matrix.
3. Disconnect ALL inputs.
Put the matrix into ―EDID Copy Mode‖ (see table on page 8)
4.
5. Connect the device with the desired EDID to the chosen output with an HDMI cable. (example:
Output 3)
Note: EDID copy cannot be performed over a single UTP extender – you
must use a dual UTP extender or an HDMI cable (preferred).
6. Power on the matrix.

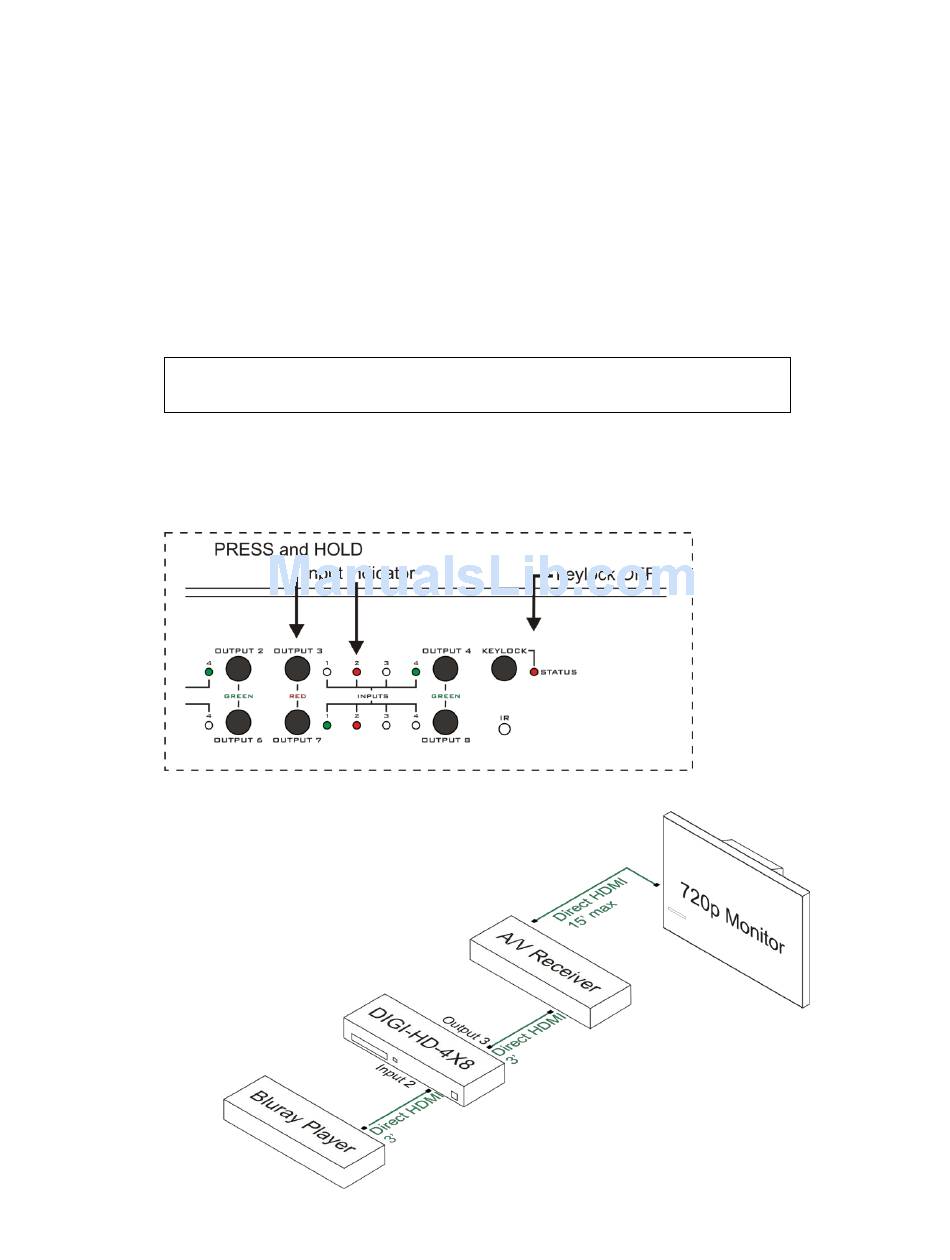

Use the ―Output Select‖ button that corresponds to the output you wish to copy to select the input
7.
you wish to copy to. (example: Output 3, Input 2)
Press and hold ―Output Select‖ button for 3-5 seconds until front panel LEDs flash twice. This
8.
indicates that the copy was successful.
9. Repeat steps 7 & 8 to copy EDID to other inputs (example: Output 3, Input 3)
10. Power off the matrix.
11. Reconnect ALL inputs.
12. Power on the matrix.
