Intelix DIGI-HD-4X8 Installation Manual
6
3.
Connect the input sources to the DIGI-HD-4X8 using high-quality HDMI
cables.
4.
Connect the output destinations to the DIGI-HD-4X8 using high-quality
HDMI cables.
5.
For long distance destinations, connect one or two twisted pair cables per
run to the DIGI-HD-4X8 (twisted pair receivers sold separately).

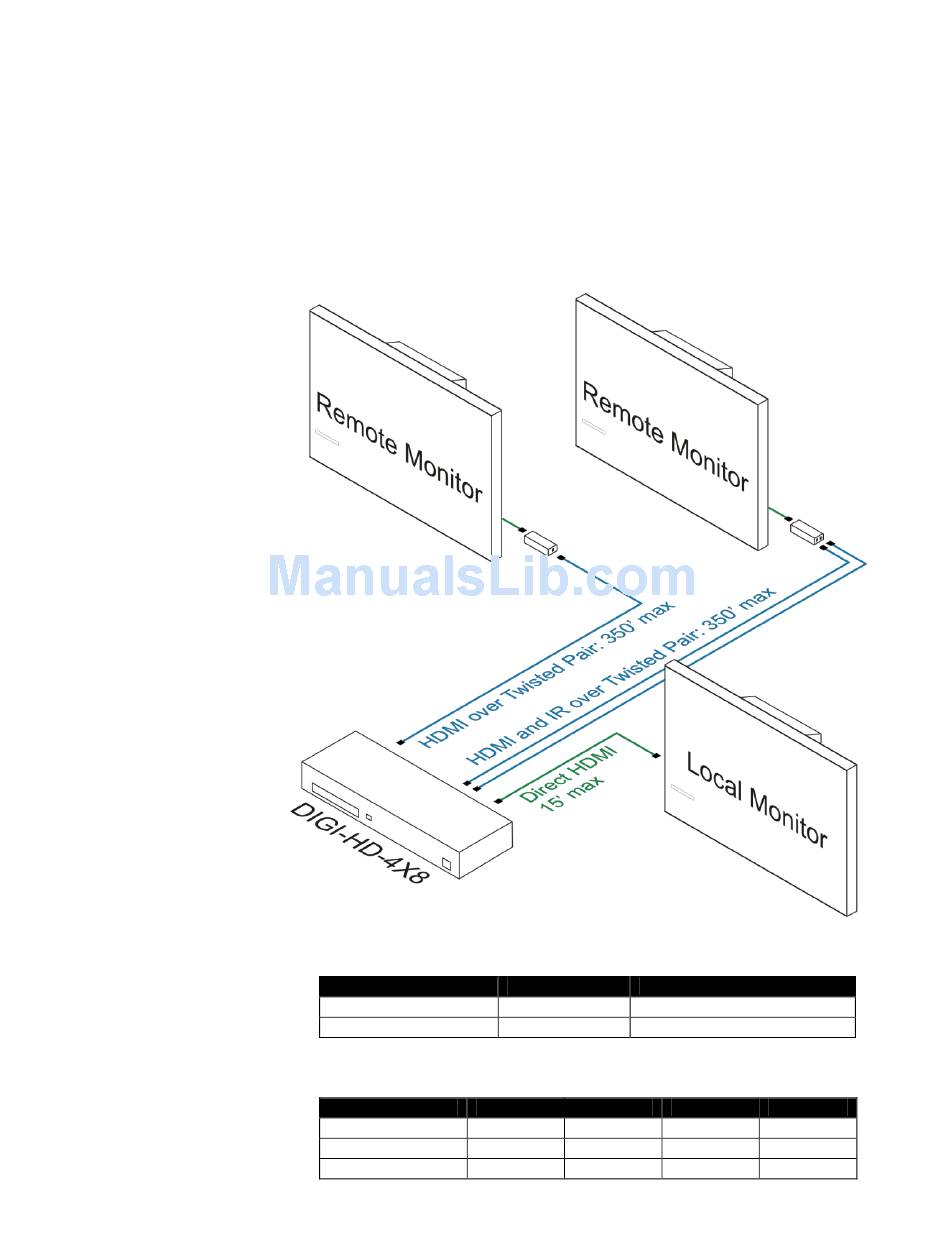

Recommended Twisted Pair Receivers
DIGI-HD-UHR2-R
DIGI-HD-IR2-R
Recommended Twisted Pair Distances
Cat 6a (shielded)
Cat 6
Cat 5e
www.intelix.com
Signals
Twisted Pair Cables Required
HDMI
HDMI and IR
1080p
1080i
150'
300'
110'
220'
100'
200'
1
2
720p
480i/p
300'
300'
220'
220'
200'
200'
