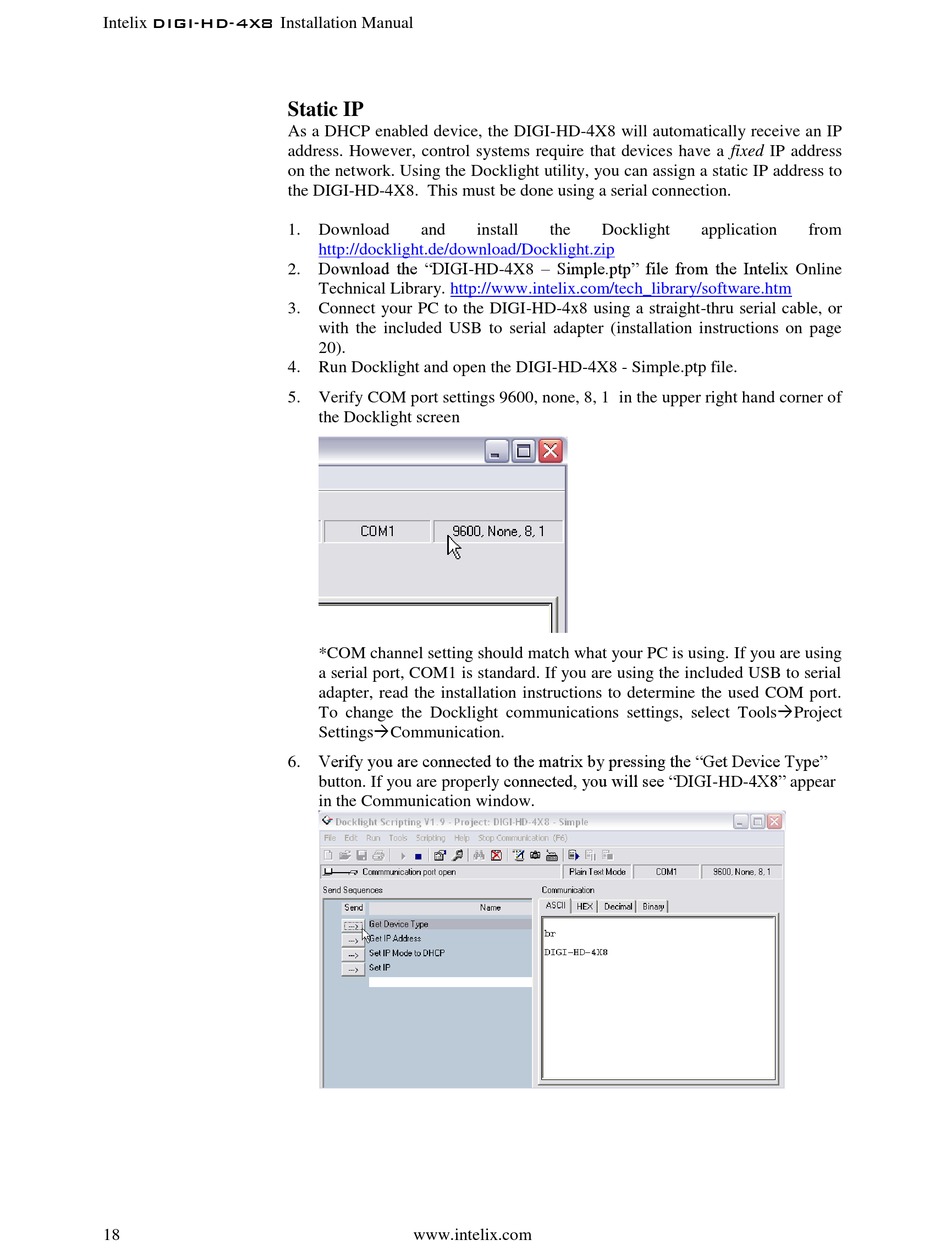

Static IP
As a DHCP enabled device, the DIGI-HD-4X8 will automatically receive an IP
address. However, control systems require that devices have a fixed IP address
on the network. Using the Docklight utility, you can assign a static IP address to
the DIGI-HD-4X8. This must be done using a serial connection.
1. Download and
http://docklight.de/download/Docklight.zip
Download the ―DIGI-HD-4X8 – Simple.ptp‖ file from the Intelix Online
2.
Technical Library. http://www.intelix.com/tech_library/software.htm
3. Connect your PC to the DIGI-HD-4x8 using a straight-thru serial cable, or
with the included USB to serial adapter (installation instructions on page
20).
4. Run Docklight and open the DIGI-HD-4X8 - Simple.ptp file.
5. Verify COM port settings 9600, none, 8, 1 in the upper right hand corner of
the Docklight screen
*COM channel setting should match what your PC is using. If you are using
a serial port, COM1 is standard. If you are using the included USB to serial
adapter, read the installation instructions to determine the used COM port.
To change the Docklight communications settings, select ToolsProject
SettingsCommunication.
Verify you are connected to the matrix by pressing the ―Get Device Type‖
6.
button. If you are properly connected, you will see ―DIGI-HD-4X8‖ appear
in the Communication window.
