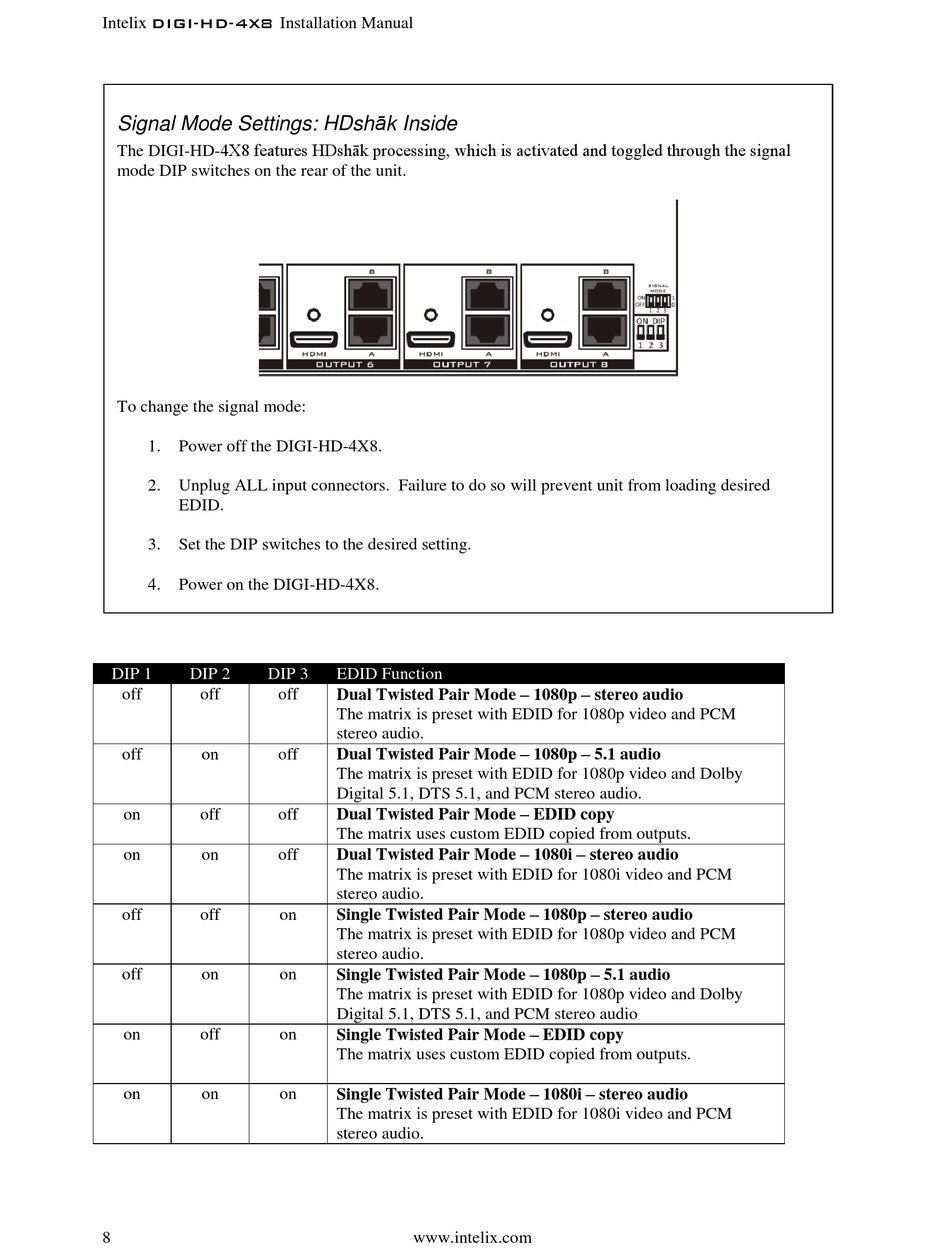

Signal Mode Settings: HDshāk Inside
The DIGI-HD-4X8 features HDshāk processing, which is activated and toggled through the signal
mode DIP switches on the rear of the unit.
To change the signal mode:
1.
Power off the DIGI-HD-4X8.
2.
Unplug ALL input connectors. Failure to do so will prevent unit from loading desired
EDID.
3.
Set the DIP switches to the desired setting.
4.
Power on the DIGI-HD-4X8.
DIP 1
DIP 2
DIP 3
off
off
off
off
on
off
on
off
off
on
on
off
off
off
on
off
on
on
on
off
on
on
on
on
8
EDID Function
Dual Twisted Pair Mode – 1080p – stereo audio
The matrix is preset with EDID for 1080p video and PCM
stereo audio.
Dual Twisted Pair Mode – 1080p – 5.1 audio
The matrix is preset with EDID for 1080p video and Dolby
Digital 5.1, DTS 5.1, and PCM stereo audio.
Dual Twisted Pair Mode – EDID copy
The matrix uses custom EDID copied from outputs.
Dual Twisted Pair Mode – 1080i – stereo audio
The matrix is preset with EDID for 1080i video and PCM
stereo audio.
Single Twisted Pair Mode – 1080p – stereo audio
The matrix is preset with EDID for 1080p video and PCM
stereo audio.
Single Twisted Pair Mode – 1080p – 5.1 audio
The matrix is preset with EDID for 1080p video and Dolby
Digital 5.1, DTS 5.1, and PCM stereo audio
Single Twisted Pair Mode – EDID copy
The matrix uses custom EDID copied from outputs.
Single Twisted Pair Mode – 1080i – stereo audio
The matrix is preset with EDID for 1080i video and PCM
stereo audio.
