Intelix DIGI-HD-4X8 Installation Manual page 21

Set IP mode to DHCP
4. Communication settings:
The host address for Ethernet commands is the unit's fixed
IP address
The port number is port 23.
IR Twisted Pair Pass-Through
When used with compatible Intelix receivers (DIGI-HD-IR2-R), the DIGI-HD-
4X8 supports four pass-through IR channels which distribute remote IR
commands from in-room controllers, up to 300 feet over twisted pair cable, and
out of the matrix.
1. Determine which devices you wish to control via the IR pass-through
outputs.
Note: By default, IR transmit output one corresponds to HDMI input
one, IR transmit output two corresponds to HDMI input two, IR
transmit output three corresponds to HDMI input three, and IR
transmit output four corresponds to HDMI input four. Therefore, the
IR output port will control the source connected to the HDMI input.

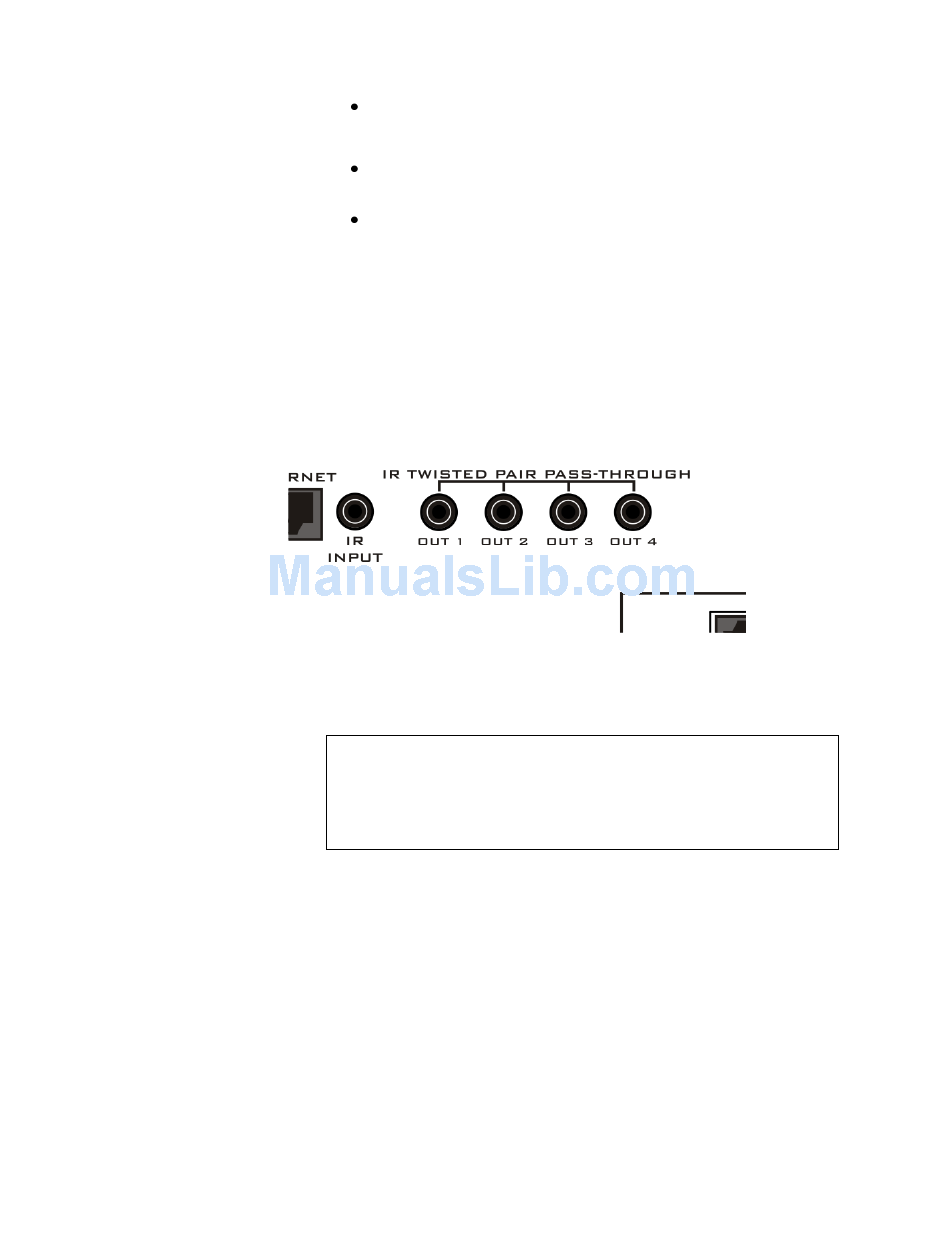

2. Connect an IR cable to the desired IR transmit output port.
3. Repeat for up to four devices.
