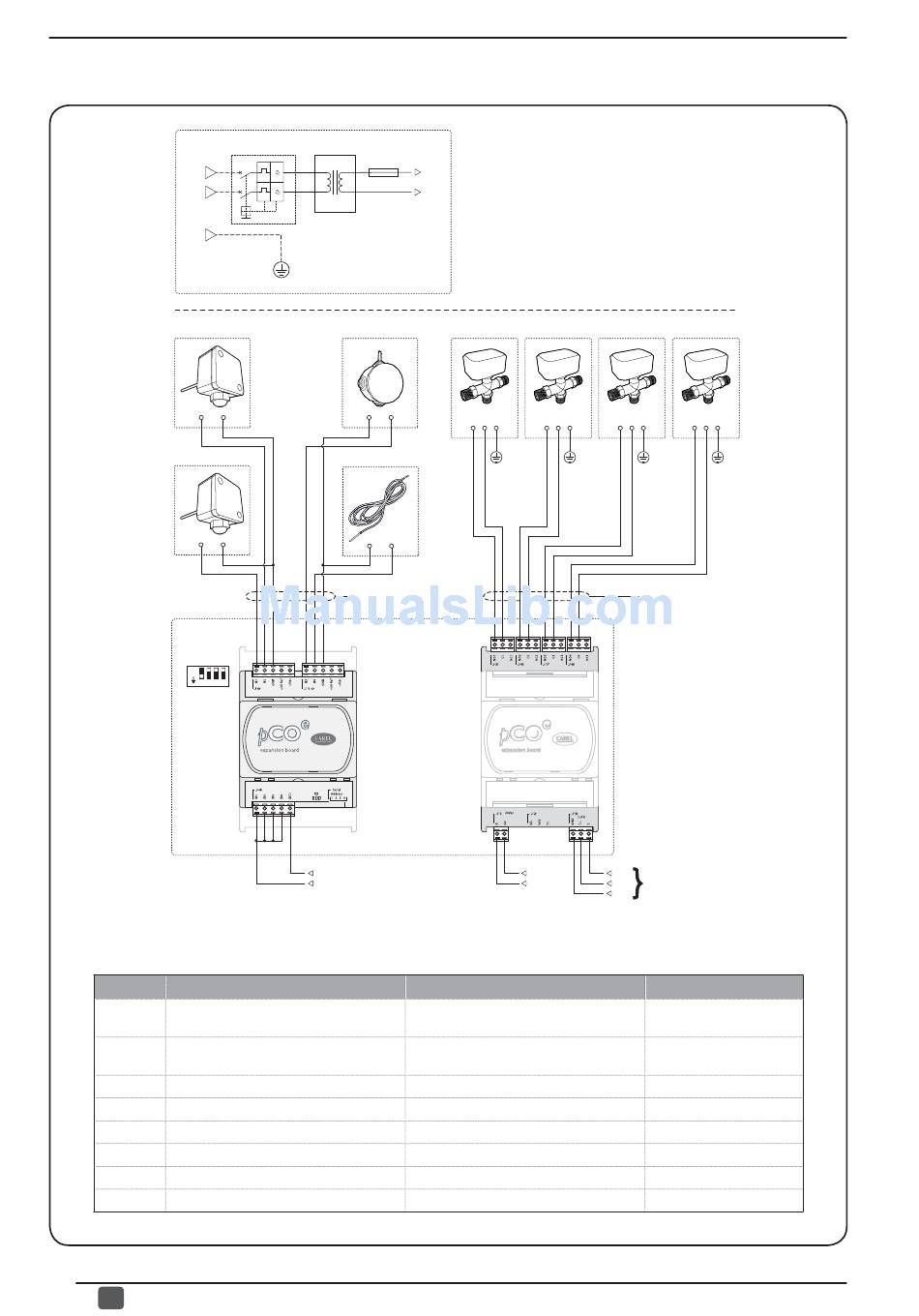

• VMF CRP 1 connections (3-way valves and probes management):

L
N
PE
230V~50Hz
SIW
SUW
VMF CRP (1)
Serial Address:
ON
1 2 3 4
Code
Primary hydraulic circuit INLET
SIW
water probe
Secondary hydraulic circuit OUTLET
SUW
water probe
SAE External air probe
SAS DHW storage tank probe
V3VD (1) 3-way diverter valve unit 1
V3VD (2) 3-way diverter valve unit 2
V3VD (3) 3-way diverter valve unit 3
3-way diverter valve unit 4
V3VD (4)
8
GB
4598010_00
IL TR1
FUSE 1.25A
230 24
0 0
25VA
SAE
SAS
0.34 mm 2 (AWG 22)
MAX 30m
0V
AC
24V
AC
Component
24V
AC
0V
AC
V3VD (1) V3VD (2)
MAX 230V~2A MAX 230V~2A
0V
AC
24V
AC
Input to enable probe
ID1 (CLOSED) on terminal board J4
ID2 (CLOSED) on terminal board J4
ID3 (CLOSED) on terminal board J4
ID4 (CLOSED) on terminal board J4
/
/
/
/
V3VD (3) V3VD (4)
MAX 230V~2A MAX 230V~2A
1.5 mm 2 (AWG 16)
MAX 30m
T-
RS 485
T+
GND
Available as
SPLW (1) accessory
SPLW (2) accessory
KSAE accessory
SDHW accessory
Component NOT supplied
Component NOT supplied
Component NOT supplied
Component NOT supplied
