• Viewing network status (Password 101 or 303):

RS485 status
U1 U2
ESC
D
RS485 status
U1 U2
52
GB
4598010_00
E1 E2
1
E1 E2

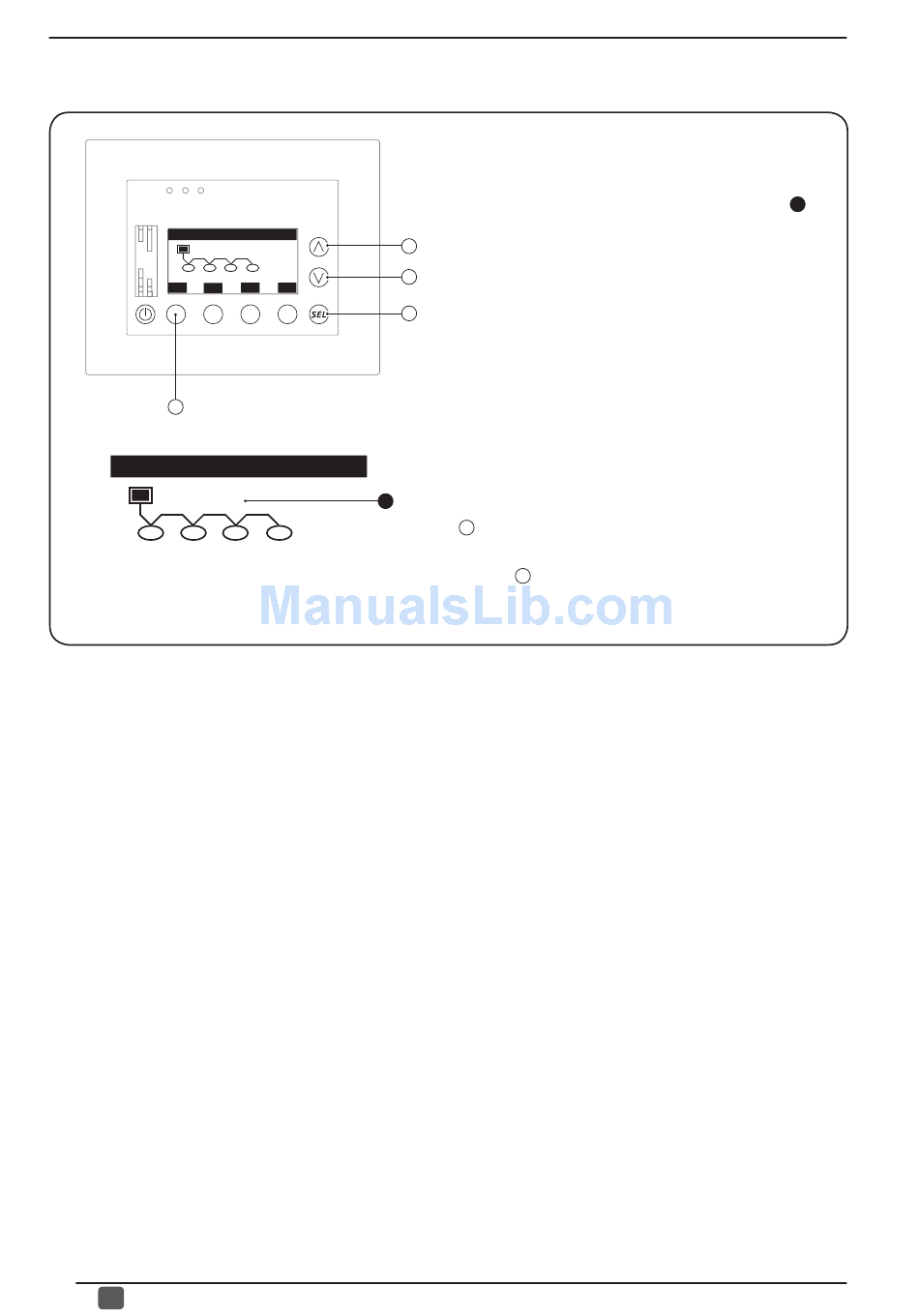

The fi fth window of the SYSTEM SETUP allows the user
to check the status of the network linked to the MULTI
CONTROL; this window displays the following information:
- Graphic on the situation of the serial network (
indicates the elements of the system and their communication;
the network graphic is generated depending on that set by
A the installer in the various menus (number of units installed
and number of VMF CRP modules installed); the user can
also check the status of communication based on the symbol
B
displayed above the words (no symbol means there is no
communication and there is probably an error in progress;
C
if an ellipse is displayed, it means that communication is
correct); the following words can be displayed:
- U1 (Unit 1).
- U2 (Unit 2).
- U3 (Unit 3).
- U4 (Unit 4).
- E1 (Additional VMF CRP 1 module).
- E2 (Additional VMF CRP 2 module).
- E3 (Additional VMF CRP 3 module).
From this window it is possible to:
(1) Go back to the previous window:
to go back to the previous window of this menu, press the
key A .
(2) Exit this window:
D
press the key to return to the selection of the USER menus.
1 ):
