2 3 / 0 8 - 5 3 8 9 9 9 2 _ 0 5
T r a n s l a t i o n o f O r i g i n a l i n s t r u c t i o n s
TCP
User manual

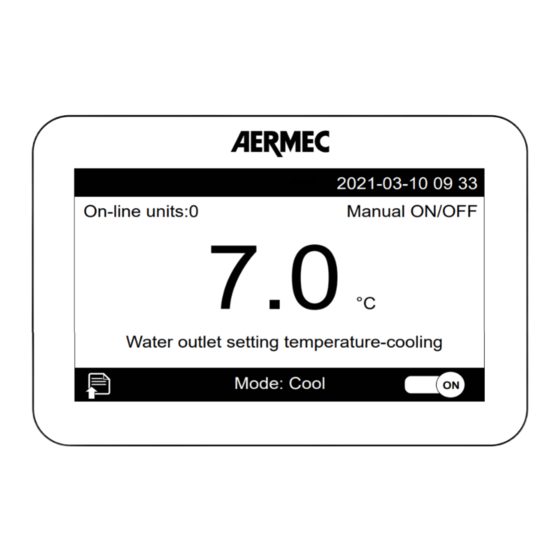

2021-03-10 09 33
On-line units:0
Manual ON/OFF
7.0
°C
Water outlet setting temperature-cooling
Mode: Cool
ON
CONTROL PANEL

w w w . a e r m e c . c o m

Advertisement

Table of Contents
loading

Related Manuals for AERMEC TCP

Summary of Contents for AERMEC TCP

  • Page 1 2 3 / 0 8 - 5 3 8 9 9 9 2 _ 0 5 T r a n s l a t i o n o f O r i g i n a l i n s t r u c t i o n s User manual 2021-03-10 09 33 On-line units:0...
  • Page 3 All specifications are subject to change without prior notice. Although every effort has been made to ensure accuracy, Aermec shall not be held liable for any errors or...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. General introduction ................p. 5 Main page ....................p. 5 Menu selection page ................p. 5 Error message window .................p. 6 Screen backlighting ................p. 6 2. Operating functions .................p. 7 ON/OFF function ..................p. 7 Menu "FUNCTION" .................p. 7 "PARAMETERS" MENU ................p. 9 "INFO" menu ..................p. 11 "E-CLEAR" Menu................... p. 14 "GENERAL"...

  • Page 5: General Introduction

    GENERAL INTRODUCTION NOTE The TCP accessory (mandatory for the units of the HMG range) is a capacitive touch- screen panel for controlling the status of the unit and managing all its functions.  Note: Manual defrosting ended automatically! — you are advised to keep the screen clean to avoid any functioning anomalies —...

  • Page 6: Error Message Window

    1.3 ERROR MESSAGE WINDOW When the user attempts to implement an invalid command or operation, the sys- tem displays a window with an error message.  Note: — when this type of window appears, the only possible option is to press the "OK" button, —...

  • Page 7: Operating Functions

    OPERATING FUNCTIONS Certain functions may not be available for the unit model selected; in this case, the FUNCTION(2/3) function value will be "N/A" or the setting will simply not be available. Timer setting: Enter ON/OFF FUNCTION Manual Defrosting: Enter With the unit OFF ( ), press the ON/OFF button on the main page to see the following window: ON/OFF memory: Off...
  • Page 8 Functions available on the unit N° Parameter Range Note Manual defrosting Mode Heating The value can only be changed if the unit is OFF Cooling Electric heating Enabling auxiliary electrical heaters Auto anti-freezing Disabled Contact-control ON/OFF Enable a clean contact for the unit’ s remote ON/OFF Enabled Disabled Timer ON/OFF...

  • Page 9: Parameters" Menu

    Once a time band has been set, press the corresponding empty box in the "Select" To access the setting page for the serial address to be assigned to the unit, press column; a tick will appear, indicating that the time band has been activated; the "Remote monitoring address"...
  • Page 10 — the value insertion window includes all the numerical figures, the decimal PARAMTER(1/3) point, the negative symbol, the button for deleting the insertion and the "Ok" button for confirming Entering water-T for cooling: 12.0°C — if you try to enter a value outside the range (shown in the top left corner), or one that isn't coherent with the parameter, an error message will be displayed and the value will be cancelled, then you can enter a correct new value Entering water-T for heating: 40°C...

  • Page 11: Info" Menu

    "INFO" MENU Once the reference unit has been selected, you will see a window where you can choose the type of information to be visualised: By pressing the "INFO." menu icon from the menu selection page ( ), it will be INFO-UNIT (1/1) possible to display information about the unit;...
  • Page 12 Operating parameter Available at the page Description Suction temperature 2 Compressor 2 intake temperature Shell-and-tube inlet-T 1 Shell and tube heat exchanger 1 input temperature Plate-H-EXCHG inlet-T 1 (*) Inlet temperature 1 of plate heat exchangers Shell-and-tube inlet-T 2 Shell and tube heat exchanger 2 input temperature Plate-H-EXCHG inlet-T 2 (*) Inlet temperature 2 of plate heat exchangers Shell-and-tube outlet-T 1...
  • Page 13 Visualisation Description Comp-Over-currentC2 Compressor 2 overcurrent Current circuit SEC2 Current sensing circuit error or current sensor error of compressor 2 DesynchronizingC2 Desynchronizing of compressor 2 Comp-Dri-Comm-EC2 Communication error with driver compressor 2 HS-IPM-PFC over-TC2 Heat sink or IPM or PFC over-temperature of compressor 2 HS-IPM-PFC SEC2 Heat sink or IPM or PFC temperature sensor error of compressor 2 Charging circuit-EC2...

  • Page 14: E-Clear" Menu

    "E-CLEAR" MENU "GENERAL" MENU By pressing the "E-Cleaner" button from the menu selection page ( ), you will By pressing the "GENERAL" menu icon from the menu selection page ( ), it will access the possibility of resetting system errors: be possible to set the general functions available on the unit;...
