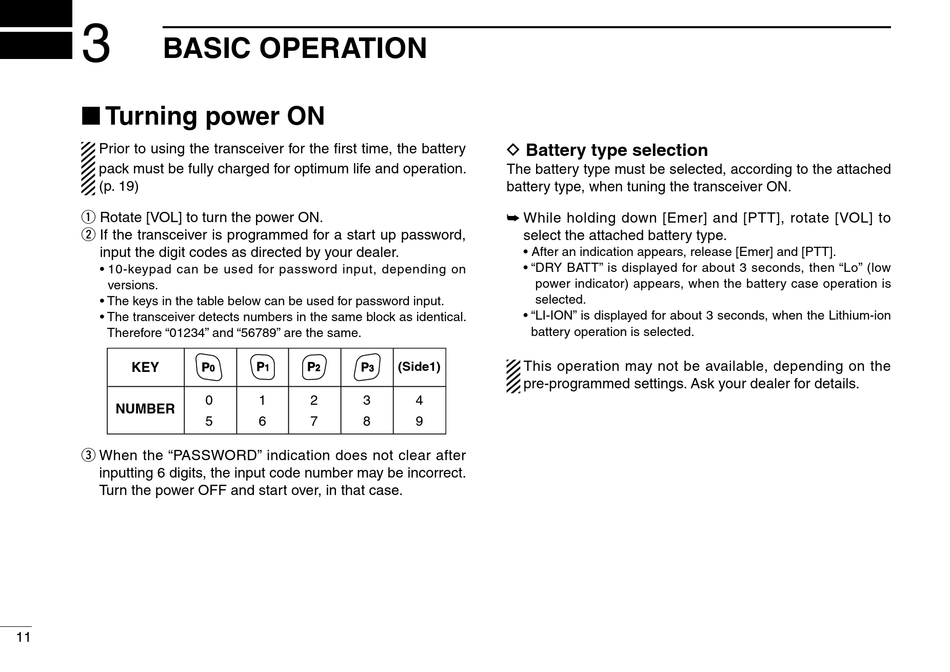

BASIC OPERATION

■ Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 19)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input, depending on
versions.
• The keys in the table below can be used for password input.
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
NUMBER
e When the "PASSWORD" indication does not clear after
inputting 6 digits, the input code number may be incorrect.
Turn the power OFF and start over, in that case.
11
P
P P P
0 1 2 3
0 1 2 3
5 6 7 8
D Battery type selection
The battery type must be selected, according to the attached
battery type, when tuning the transceiver ON.
➥ While holding down [Emer] and [PTT], rotate [VOL] to
select the attached battery type.
• After an indication appears, release [Emer] and [PTT].
• "DRY BATT" is displayed for about 3 seconds, then "Lo" (low
power indicator) appears, when the battery case operation is
selected.
• "LI-ION" is displayed for about 3 seconds, when the Lithium-ion
battery operation is selected.
This operation may not be available, depending on the
(Side1)
pre-programmed settings. Ask your dealer for details.
4
9
