8
OPTIONS

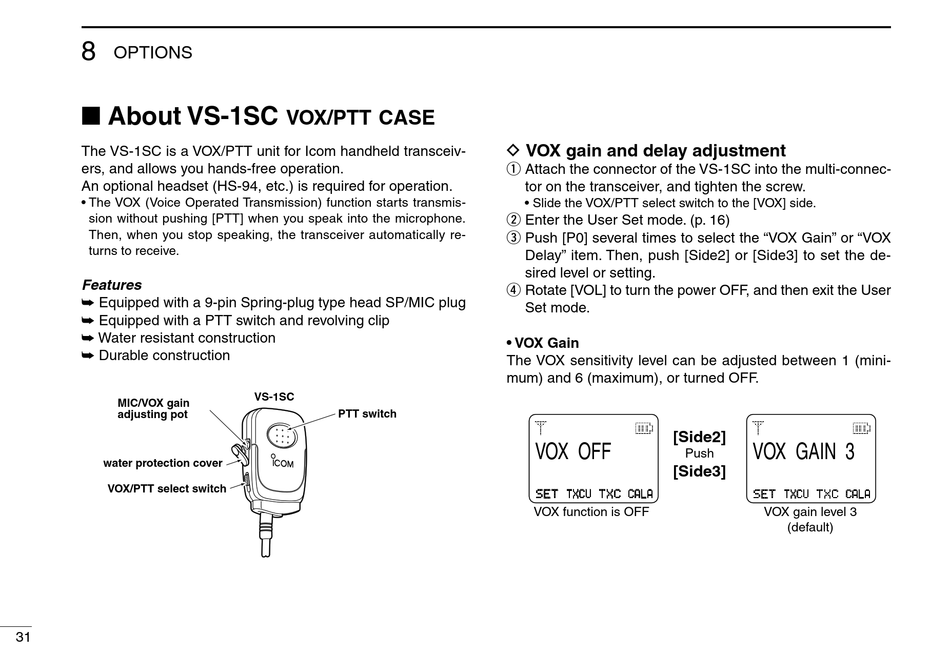

■ About VS-1SC
The VS-1SC is a VOX/PTT unit for Icom handheld transceiv-
ers, and allows you hands-free operation.
An optional headset (HS-94, etc.) is required for operation.
• The VOX (Voice Operated Transmission) function starts transmis-
sion without pushing [PTT] when you speak into the microphone.
Then, when you stop speaking, the transceiver automatically re-
turns to receive.
Features
➥ Equipped with a 9-pin Spring-plug type head SP/MIC plug
➥ Equipped with a PTT switch and revolving clip
➥ Water resistant construction
➥ Durable construction
MIC/VOX gain
adjusting pot
water protection cover
VOX/PTT select switch
31
vox / ptt case
VS-1SC
PTT switch
D VOX gain and delay adjustment
q Attach the connector of the VS-1SC into the multi-connec-
tor on the transceiver, and tighten the screw.
• Slide the VOX/PTT select switch to the [VOX] side.
w Enter the User Set mode. (p. 16)
e Push [P0] several times to select the "VOX Gain" or "VOX
Delay" item. Then, push [Side2] or [Side3] to set the de-
sired level or setting.
r Rotate [VOL] to turn the power OFF, and then exit the User
Set mode.
• VOX Gain
The VOX sensitivity level can be adjusted between 1 (mini-
mum) and 6 (maximum), or turned OFF.
[Side2]
VOX OFF
Push
[Side3]
SET TXCU TXC CALA
VOX function is OFF
VOX GAIN 3
SET TXCU TXC CALA
VOX gain level 3
(default)
