1
ACCESSORIES

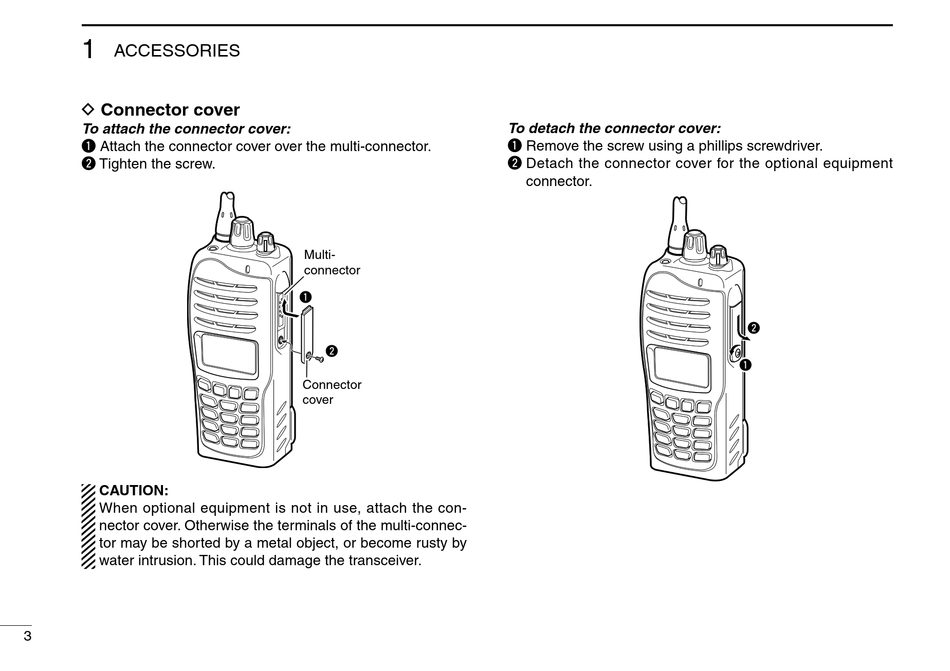

D Connector cover
To attach the connector cover:
q Attach the connector cover over the multi-connector.
w Tighten the screw.
CAUTION:
When optional equipment is not in use, attach the con-
nector cover. Otherwise the terminals of the multi-connec-
tor may be shorted by a metal object, or become rusty by
water intrusion. This could damage the transceiver.
3
Multi-
connector
q
w
Connector
cover
To detach the connector cover:
q Remove the screw using a phillips screwdriver.
w Detach the connector cover for the optional equipment
connector.
w
q
