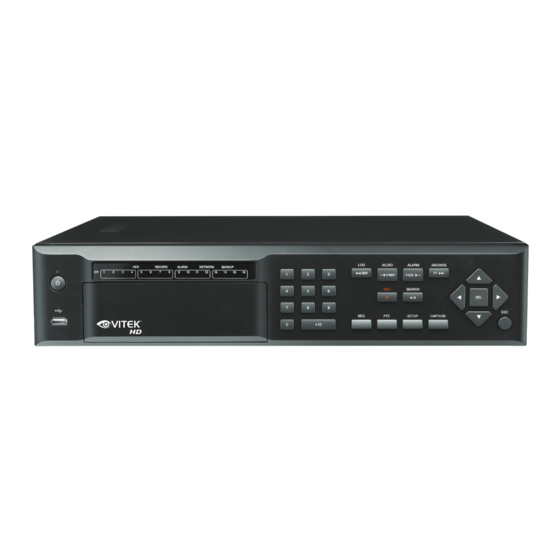

Vitek VT-HD2x8 User Manual

2 channel hd + 8 channel d1 h.264 digital video recorder
Hide thumbs Also See for VT-HD2x8:
Table of Contents

Advertisement

Quick Links

Download this manual

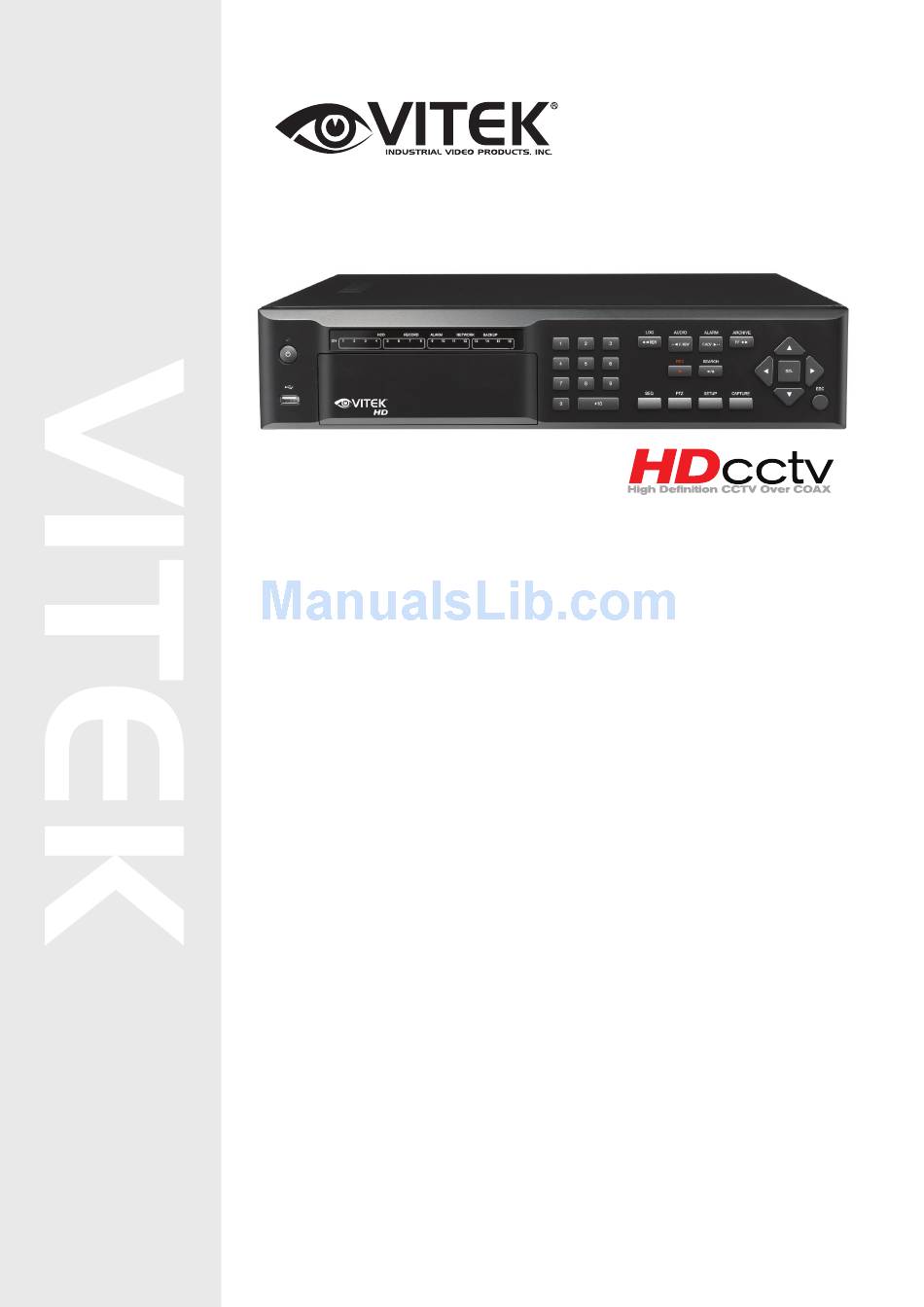

VT-HD2x8
2 Channel HD + 8 Channel D1
H.264 Digital Video Recorder
• 2 Channel HD + 8 Channel D1 Hybrid
• Record MegaPixel quality Video at 1080p or 720p
• Digital Video Transmitted 100% Over Coax - Not IP
• Simple plug and play, point-to-point connection from camera to DVR
• H.264 Compression
• HDMI, VGA, and BNC Spot Outputs
• Quadplex Operation (Playback, Recording, Backup, Network)
• 10 Audio Inputs & 1 Output
• Up to 4TB Internal Storage (2 x 2TB HDD) + 1 eSATA for expansion
• Dual RS-485 Ports for PTZ & Keyboard Control
• Applications for iPhone, iPad, iPod Touch and Android Devices
• Quick Search Function for automatic review
• Mac OSX Client & CMS Central Management Software Included
• Automatic Event notifications via email
• Control locally via Front Panel, USB Mouse or with the Included IR Remote control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-HD2x8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VT-HD2x8

Summary of Contents for Vitek VT-HD2x8

  • Page 1 VT-HD2x8 2 Channel HD + 8 Channel D1 H.264 Digital Video Recorder • 2 Channel HD + 8 Channel D1 Hybrid • Record MegaPixel quality Video at 1080p or 720p • Digital Video Transmitted 100% Over Coax - Not IP •...

  • Page 2: Explanation Of Graphical Symbols

    Cautions Explanation of Graphical Symbols This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock, property damage, personal injury, or death.
  • Page 3 These precautions must be followed for safety reasons. Warning • Do not use if the unit emits smoke. • Do not disassemble the unit. • Do not place any heavy or sharp objects on the unit. • Do not place on uneven surface. •...

  • Page 4: Product Components

    Product Components Please make sure the following components are included as specified below. DVR Set DVD-RW (Option) Client Software CD, User Guide Remote Control , Battery1.5V, Mouse Power Cable (110V or 220V)(1EA) HDD Capacity by Recording Quality (10 Channels, Continuous, Full-HD@15fps or HD@30fps and D1@30/25fps, Audio On) LEVEL 5(H) LEVEL 4 LEVEL 3...

  • Page 5: Main Features

    Main Features  HDcctv Compatible  H.264 Video Compression  Reliable File System  HDMI Output  4 Channel Audio Recording NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18 U.S.C.
  • Page 6  Individual Channel Operation  Motion Detection  Easy and Simple Graphic User Interface...
  • Page 7  Simple Scheduler  Variety of Ways Network Access via Network Client Software, Web-Viewer, CMS, and Mobile Viewer Web-Viewer Network Client Software Mobile Viewer  S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology for HDD)

  • Page 8: Booting The Dvr And Basic Time Setting

    Booting the DVR and Basic Time Setting 1. During the first start up, the following message will be displayed. 2. After the system initializing is completed, select the language and set date and time as specified below. Setting Daylight Saving Time If the DVR is to be set Day Light Saving Time and be synchronized NTP (Network Time Protocol), take next steps.

  • Page 9: Setting Ntp (Network Time Protocol)

    Setting NTP (Network Time Protocol) 1. When the DVR is connected with internet and the DVR need to be syncronized with NTP (Network Time Protocol), set SETUP>SYSTEM>NTP ON. 2. Select proper TIME ZONE time. Pacific Time Zone • Los Angles, CA, USA : GMT - 8:00 for Standard time / GMT - 7:00 for Daylight time Mountain Time Zone •...
  • Page 10 State Standard Time Daylight-Saving Time Alabama GMT-6 GMT-5 Alaska GMT-9 GMT-8 Alaska (Aleutian Islands) GMT-10 Arizona GMT-7 Arizona (Navajo) GMT-7 GMT-6 Arkansas GMT-6 GMT-5 California GMT-8 GMT-7 Colorado GMT-7 GMT-6 Connecticut GMT-5 GMT-4 District of Columbia GMT-5 GMT-4 Delaware GMT-5 GMT-4 Florida GMT-5...
  • Page 11 New Jersey GMT-5 GMT-4 New Mexico GMT-7 GMT-6 New York GMT-5 GMT-4 North Carolina GMT-5 GMT-4 North Dakota GMT-6 GMT-5 North Dakota (W) GMT-7 GMT-6 Ohio GMT-5 GMT-4 Oklahoma GMT-6 GMT-5 Oregon GMT-8 GMT-7 Oregon (E) GMT-7 GMT-6 Pennsylvania GMT-5 GMT-4 Rhode Island GMT-5...

  • Page 12: Table Of Contents

    Table of Contents Name, Function and Connection ..................15 1-1. Front Panel ........................... 15 1-2. Rear Panel ........................... 16 1-3. Remote Control ..........................17 Setting up the DVR ......................18 2-1. Setup – Main Screen ........................18 2-2. Setup – DISPLAY Mode ....................... 21 2-3.
  • Page 13 6. Back up ..........................54 6-1. Still Image Backup onto USB Flash Memory ................54 6-2. Video Backup onto USB Flash Memory ..................54 6-3. Transferring Still Images or Video from the ARCHIVE list ............. 55 6-4. Playback of Backup Video ......................56 7.
  • Page 14 9. Network access using the Web-browser Viewer ................ ………...97 10. Network access using the Smart Phone Viewer ..............100 10-1. Installing the 3G App Viewer ............Error! Bookmark not defined. 10-2. Live Monitoring ........................... 100 APPENDIX: How to Connect the Network ..................104 How to set the IP address of the DVR and open TCP port of the router? .............

  • Page 15: Name, Function And Connection

    1. Name, Function and Connection 1-1. Front Panel The following information will help you to operate the front panel controls. Table1.1.1. Indication Lamps Name Description CH1~16 Indicating that the channel is being recorded. Indicating that the system is accessing the hard disk. RECORD Indicating that the system is recording video data.

  • Page 16: Rear Panel

    It is also used as the number 4 when entering password. ▲(UP) Press to move up the menu in Setup mode. It is also used as the number 1 when entering password. ▶(RIGHT) Press to move right or to change the values in Setup mode. It is also used as the number 2 when entering password.

  • Page 17: Remote Control

    RS-232 POS Interface (TBD). ETHERNET RJ-45 connector for network function 2 e-SATA ports to archive still-image or video into a External E-SATA Storage HDD . RAID Units to be available in the future TERMINATE RS-485 termination switch for 1 and 2 POWER SOCKET Connect for AC110V~250V RS-485...

  • Page 18: Setting Up The Dvr

    2. Setting up the DVR The following sections detail the initial setup of a DVR. 2-1. Setup – Main Screen To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the front panel or the remote control.
  • Page 19 Table 2.1.1. Setup Menu Tree  DISPLAY – – OSD CONTRAST – SEQUENCE – SEQ-DWELL TIME – CHANNEL NAME COVERT BRIGHTNESS CONTRAST SATURATION – VIDEO OPTION (HDMI/VGA)  RECORD – CHANNEL RESOLUTION FRAME RATE QUALITY RECORDING SENSOR RECORDING PRE RECORD POST EVENT RECORD AUDIO SCHEDULE...
  • Page 20 RECORDING LIMIT DAYS – S.M.A.R.T  SYSTEM – DVR-ID – DESCRIPTION – LANGUAGE – DATE FORMAT – SET DATE & TIME – CLIENT ACCESS – – SEND EMAIL  SECURITY – USER AUTHENTICATION – USER PASSOWRD – AUTHORITY OF PLAYBACK ...

  • Page 21: Setup - Display Mode

    2-2. Setup – DISPLAY Mode In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate through the menu items using the mouse or the control button on the remote control and change the value of the menu item. To return to the previous setup menu screen, press the ESC button.

  • Page 22: Setup - Record Mode

    COVERT Enable/disable display of the video channel in live display mode. BRIGHTNESS Change the brightness value of the specified channel.(0-100) It is for analog channels (1~8ch) only and HD channels (9,10ch) couldn’t control. CONTRAST Change the contrast value of the specified channel. (0-100) It is for analog channels (1~8ch) only and HD channels (9,10ch) couldn’t control.
  • Page 23 Table 2.3.1. Menu Items in Recording Mode Setup Menu item Description CHANNEL Select a channel for applying the following settings using the control button. Press SEL button to change the setting value of all channels at once. Once you select an item, then press SEL to set value for all channels.

  • Page 24: Recording Schedules

    2-3-1. Recording Schedules To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the items using the mouse or the control button. Once the channel 1 is selected, SCHEDULE-CH1 screen is displayed. Select ALL or each day using the mouse or the control button and set the recording mode using the SEL button repeatedly Figure 4.3.2.

  • Page 25: Setup - Device Mode

    2-4. Setup – DEVICE Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select DEVICE icon and press SEL button to enter the setup menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button.To return to setup menu screen, press the ESC button.

  • Page 26: Alarm Out

    1. Select ID. 2. Press the same number as ID set in DVR on a remote control. 3. Then icon will be displayed on Live screen of DVR that respond to the remote control. The options are from 00 to 99 SENSOR Select sensor NO from 1 to 10 TYPE...

  • Page 27: Controller & Ptz Setup

    2-4-2 Controller & PTZ Setup To control the controller and PTZ functions of the camera, connect a controller to the RS-485 port. ① Connect the RS-485 cables of Controller and PTZ camera to the RS-485 port on the rear panel. ②...

  • Page 28: Spot Out

    2-4-3. Spot Out Item Description SPOT OUT Spot Out 1: from 1 channel to 4 channel Spot Out 2: from 5 channel to 8 channel Spot Out 3: for 9 channel Spot Out 4: for 10 channel SPOT TYPE Select Full screen or Quad screen mode. SPOT ON EVENT Enable/Disable display of the channel when an event is active.

  • Page 29: Motion Zone Setup

    2-4-4. Motion Zone Setup Select MOTION ZONE using the control button and select either PARTIAL ZONE or FULL ZONE using the control button. And press the SEL button. If FULL ZONE is selected, the motion setting screen is not displayed. Only set the level of sensitivity for MOTION SENSITIVITY.

  • Page 30: Setup - Storage Mode

    2-5. Setup – STORAGE Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select STORAGE icon and press SEL button to enter the setup menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button. To return to setup menu screen, press the ESC button.
  • Page 31 Hard drive information DISK INFO...
  • Page 32 RECORDING Enable/disable recording limit. LIMIT RECORDING Set the recording limit days.(1- 90 days) LIMIT DAYS The data will remove by the hour. Set the alarm and buzzer by setting HDD temperature limit. S.M.A.R.T.

  • Page 33: Setup - System Mode

    2-6. Setup – SYSTEM Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select SYSTEM icon and press SEL button to enter the menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button.
  • Page 34 LANGUAGE Select the display language using the control button. Once a language is selected, the display language changes. DATE FORMAT Select the date display format using the control button. Options are: YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD, MM-DD- YYYY, DD-MM-YYYY SET DATE&TIME Select the display date and time using the mouse or the control button on the remote control and press OK button to set the present date and time.
  • Page 35 and end date of the daylight saving period. Select BEGIN or END using the control button and press the SEL button. Select the item using the control button, select the setting value using the control button and press the ESC button to return to SET DATE &...
  • Page 36 TRANSMISSION MODE: Sending an image only of the channel that triggered the alarm when an alarm event is triggered. IP NOTIFICATION: Enable/disable sending e-mail when the IP address of your DVR is changed. EVENT ALARM: Enable/disable sending e-mail reports on the channel that triggered the alarm when an alarm event is triggered.

  • Page 37: Setup - Security Mode

    2-7. Setup – SECURITY Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select SECURITY icon and press SEL button to enter the setup menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button. To return to setup menu screen, press the ESC button Figure 2.7.1.
  • Page 38 USER PASSWORD ADMIN, NETWORK, USER1, USER2, USER3: Options are ADMIN, USER1, USER2 and USER3. Select USER PASSWORD using control button and press SEL button. Select user type using the control button and SEL button. Enter the current password and select OK.

  • Page 39: Setup - Network Mode

    2-8. Setup – NETWORK Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select NETWORK icon and press SEL button to enter the setup menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button. To return to setup menu screen, press the ESC button Figure 2.8.1.

  • Page 40: Port And Web Port

    The address for the primary DNS server DNS (PRIMARY) The address for the secondary DNS server DNS (SECONDARY) Enable/disable using domain name address through DDNS server. DDNS “ON” mode, DDNS server name appears for domain registration. DDNS SERVER NAME: The DDNS sever name is bestddns.com. CAUTION: Do not change this sever name.

  • Page 41: Network Types

    2-8-2. Network Types 2-8-2-1. DHCP An IP address is automatically assigned by the DHCP server, which automatically assigns IP address and other parameters to new devices. When ADSL or other network being used adopts variable IP method, not fixed IP. This option is used as a way to automatically get IP address.

  • Page 42: Network Stream

    If the user wants to use other general-purpose DDNS Server, select a Sever 2. Then, the user has to input the server name, ID and password using a virtual keyboard. Figure 2.8.5. Network Setup Screen – DDNS Server 2 2-8-4. NETWORK STREAM User can set the Resolution, the frame rate and the quality for a network stream classified by channel.

  • Page 43: Setup - Config Mode

    2-9. Setup - CONFIG Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select CONFIG icon and press SEL button to enter the setup menu item. Navigate through the menu items using the control button and change the value of the menu item using the control button.

  • Page 44: Saving Setup

    settings, HDD serial number, and HDD ERROR time will not be included.) Select ON to reset the system to the factory default settings. LOAD FACTORY DEFAULT 3. Saving Setup To preserve the setup values that you have changed, select YES. Figure 3.11.1.

  • Page 45: Live, Search, And Playback

    4. Live, Search, and Playback 4-1. Live Viewing Screen In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. Figure 4.1.1. Live Viewing Screen Table 4.1.1. Status Indicator Icons in Live Viewing Screen Icon Description Click the power icon when you want to shut it off by mouse...
  • Page 46 Click this SEQUENCE icon when you want to activate the sequential screen Click this MANUAL RECORD icon when you want to manually record Click this ALARM OUT icon when you want to activate alarm out Click the split screen icon to change the current split screen mode using the mouse or SEL button.

  • Page 47: Search Screen

    Table 4.1.2. Button Functions in Live Viewing Screen Button Description Select channel to be displayed in full screen mode. Switch between full screen and quad display mode. Press to start auto sequencing of the screen in full screen mode. (Toggle) RECORD Press to start and stop manual recording.

  • Page 48: Time-Line Search

    4-2-1. TIME-LINE Search The TIME-LINE search window is used to find the stored video by using the time line bar. When it clicks a Timeline menu, user can see a calendar which has recording data. Select a specific date and time. Use a drag-and-drop function of the mouse control. User can select a specific minutes using a button in the above red box.

  • Page 49: Event Search

    4-2-2. Event Search The Event Search window is used to find stored video. Figure 4.2.2. Event Search Screen When it clicks an Event menu, user can see a calendar which has recording data. Select a specific date and then user can see all data. Press a PLAY button to playback the data or a SAVE button to save the data at once after selecting a specific data.

  • Page 50: Go To Specific Time

    4-2-5. Go To Specific Time Figure 4.2.3. Go To Specific Time User can search for video data from a specific instance by setting the date and time in the Go To Specific Time menu. Use the mouse or the control button on the remote control to change the date and time value and press the PLAY button after setting.

  • Page 51: Log Search

    4-2-7. Log Search You can access the LOG list search screen by selecting LOG on the SEARCH window. Figure 4.2.5. Log Search Screen When it clicks a Log menu, user can see a calendar which has recording data. Select a specific date and press NEXT button.

  • Page 52: Play Mode

    4-3. Play mode During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may return to the SEARCH screen by pressing the X button on the status bar or the ESC button of a remote control.

  • Page 53: Ptz Control

    5. PTZ Control To control the PTZ functions of the camera, select PTZ menu on the screen using the mouse. Select the item you wish to control the PTZ camera and control them using the mouse or the control button on the remote control.

  • Page 54: Back Up

    6. Back up 6-1. Still Image Backup onto USB Flash Memory Still images can be captured and archived onto the USB flash drive or hard drive in live mode or while playing back recorded video. In live mode, press the BACKUP button to launch the archive function or select BACK UP menu on the screen using the mouse.

  • Page 55: Transferring Still Images Or Video From The Archive List

    Figure 6.2.1. Video Archiving and Backup Screen The DVR will convert the corresponding portion of the video into an AVI file. 6-3. Transferring Still Images or Video from the ARCHIVE list The stored data onto hard drive will be found in the ARCHIVE list in SEARCH window. User can back up still images or video into the storage device from the ARCHIVE list.

  • Page 56: Playback Of Backup Video

    Figure 6.3.1. Archive Search Screen 6-4. Playback of Backup Video  H.264 format: H.264 format video can be played back by the player (the HD player) that the DVR copies on USB thumb drive with video. Three files are copied on USB thumb drive - H.264 file: H.264 format video file.

  • Page 57: Network Access Using The Single Site Network Viewer

    7. Network Access Using the Single Site Network Viewer The DVR provides a live remote monitoring feature. Remote monitoring requires installation of the network viewer on your PC. NOTICE In a high bandwidth network, a maximum of four users can access one DVR simultaneously. In a low bandwidth network it is recommended that only one user access the DVR at a time.

  • Page 58: Installing The Network Viewer

    7-2. Installing the Network Viewer 1. Insert the provided CD in the CD drive and double-click “Single Client(XXXX).exe” 2. Select a destination folder and click “Next” 3. Select the Program Folder and click “Next” 4. The installation process will begin. After the installation is completed, “Single Client”...

  • Page 59: Live Monitoring Mode And Functions

    7-3. Live Monitoring Mode and Functions. Button Function Description DATE & TIME Displays the current date and time. CONNECT/DISCONNECT Connect/disconnect network connection. SEARCH Switches the live mode to search mode. DISPLAY MODE Select a channel and screen display mode. PAN/TILT/ZOOM/ FOCUS Control the PAN/TILT/ZOOM/FOCUS features on the remote camera.
  • Page 60 HDD USAGE DVR HDD storage Indicator. NETWORK BANDWIDTH Shows the transferred frames and network bandwidth. AUDIO Adjust the volume. The audio can be turned on or off by clicking the audio icon. LOG WINDOW Shows the even log, date, and time. DIGITAL ZOOM Digital Zoom Window in Live and Playback.

  • Page 61: Bi-Directional Audio

     QUAD/-screen display - Click the QUAD button to switch to quad-screen display  Full screen display - Click the maximize button to display only screen and hidden the operation panel. Image capture of live screen Still-image of live screen can be captured and saved as a BMP or JPEG file. 1.

  • Page 62: Remote Search Mode And Functions

    7-5. Remote Search Mode and Functions Button Function Description DATE & TIME Displays the recording time of the data selected on the time bar at the bottom of the main user interface. DISCONNECT Disconnect network connection. LIVE Switches the search mode to live mode. CAPTURE Capture a still image from live screen.
  • Page 63 PLAYBACK BUTTON The playback buttons. DISPLAY MODE Select a channel and screen display mode. DIGITAL ZOOM Digital Zoom Window in Live and Playback. (Only available in Single Channel Viewing) Searching and playing video in the remote DVR Video recorded in the remote DVR or Video recorded on the PC can be searched and played back. 1.

  • Page 64: Pc System Configuration

    1. Connect to the remote DVR and play the video recorded in the remote DVR. 2. Drag the marker on the timeline scale and press the MARK IN button to mark the video backup starting point. 3. Drag the marker on the timeline scale and press the MARK OUT button to mark the video backup ending point.
  • Page 65 Setting General Set the Security Option, Save Path, and Miscellaneous.  Security Option: Set a password for security options. When you access any of the selected functions, you will need to enter the password.  Save Path: Specify the location to record for backup and still image capture. ...
  • Page 66 Setting Event Set the record path and the size of local disk space for the log files.  LOG – Select to save event log into ‘log file’.  ICON – Select to display the event on live video.  EVENT LIST – Select to show the event in the ‘Event List” window of live mode. Search and check the recorded log data.
  • Page 67 Setting Record Set the recording conditions and select channels to record. Select the local disk to use and the amount of disk space you want to allow the program to use for recording.

  • Page 69: Network Access Using The Multi-Sites Network Viewer

    8. Network Access Using the Multi-Sites Network Viewer 8-1. Overview The Multi-Client is a multiple site monitoring client software with; video, audio, and alarm signals from the DVRs over networks. The Multi-Client does not limit the number of DVR units to register. The program displays to up 256 live videos on one display and even playback videos window on the same or another display monitor.

  • Page 70: Installation Of The Program

    8-3. Installation of the Program 1. Insert the provided CD in the CD drive and double-click “MultiClient (XXXX).exe” 2. Select a destination folder and click “Next”. 3. Select the program folder and click “Next”. 4. The installation status screen is displayed. 5.

  • Page 71: Live Window

    8-4. Live Window When installation is completed, double click the “Multi Client” icon on your desktop to start the program. 8-4-1. Main User Interface 8-4-2. Control Buttons Button Description Click this icon to run a playback window to search and play videos that are recorded in the local PC.
  • Page 72 Click this icon to connect the selected site/sites. CONNECT Click this icon to disconnect the selected site/sites. DISCONNECT Click this icon to setup configuration of the MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE Opens list of events logged by the Multi Client. EVENT LIST Click this icon to play/pause live video.

  • Page 73: Search And Playback Window

    8-5. Search and Playback Window 8-5-1. Main User Interface You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper left of the Live Window. 8-5-2. Main Control Panel Button Description Click this icon to run a playback window to search and play videos that are LOCAL PLAYBACK recorded in the local PC.
  • Page 74 Click this icon to setup configuration of the MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE Opens list of events logged by the Multi Client. EVENT LIST Click this icon to set the beginning time for backup of the recorded video in MARK IN AVI format.

  • Page 75: Setup Of Multi Client

    8-6. Setup of the Multi Client Click the setup icon to setup the configuration of Multi Client software. The SETUP window is displayed as below. 8-6-1. General 8-6-1-1. Security Option: Set a password for security options. Select security options and set a password. Then when you access any of selected functions, you need to enter the password.

  • Page 76: Event

    8-6-2. Event Event log can be archived and searched. 8-6-2-1. Archiving Event Log: Specify the location to save event logs and select event to archive.

  • Page 77: Record

    8-6-2-2. Archiving Event Log: Event log can be searched from selected time. 8-6-3. Record 8-6-3-1. Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

  • Page 78: Osd

    8-6-3-2. Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

  • Page 79: Language

    8-6-5. Language You can select a language to be display. 8-6-6. About “About” provides network client version information.

  • Page 80: Remote Setup

    8-7. Remote Setup The menu settings for the DVR unit can be set from a PC, via network. Put the cursor of the mouse on the channel which is connected to the site and right click on the mouse to open the submenu.

  • Page 81: Setting The Display

    8-7-1. Setting the Display Select the DISPLAY tab to set the DISPLAY conditions. These settings apply to all channels. OSD: Sets whether to display or not date and time as well as channel number on the screen. OSD Contrast: Adjust the character contrast on the screen. Sequence: Setting for automatically switching the displayed video.

  • Page 82: Record

    8-7-2. Record Select RECORD tab to set the recording conditions. These settings apply to the specified channel only. Channel Designation Resolution: Sets the resolution for the recordings. The set value applies to an individual channel. Frame Rate: Sets the recording rate. Quality: Sets the image quality in 5 levels.

  • Page 83: Device

    8-7-3. Device Select Device to set the motion zone, sensor input/alarm output conditions, PTZ control and spot setting conditions. 8-7-3-1. Device Setting the Motion Zone/Sensitivity: Select the zone where the motion sensor is active. It is necessary to set a detection frame when PARTIAL ZONE is selected.

  • Page 84: Storage

    8-7-3-3. PTZ Setting the PTZ Control: Sets the communication environment for remotely operating PTZ dome cameras connected to RS485 terminals. Camera channel designation Name: Sets the protocol type for the specified channel. When connecting multiple cameras, set the same protocol for all.

  • Page 85: System

    8-7-5. System Select System to set system and time settings. 8-7-5-1. System Setting the System DVR ID: Sets individual designation to DVRs. Date Format: Select the date display format (YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD, MM-DD- YYYY, DD-MM-YYYY) NTP: Sets whether to synchronize the time using NTP server or not. Primary SNTP Server: Input the NTP primary server address.
  • Page 86 Mail Address: Input the destination address. Mail Server Name: Input the SMTP server name as well as the user ID and password. Return Mail Address: Set the source e-mail address to be notified to the destination. Apply: Click APPLY to save the changes of the value. 8-7-7-1.

  • Page 87: Remote Upgrade

    8-7-6. Remote Upgrade Browse: Select BROWSE to locate the firmware file. Upgrade: Select UPGRADE to upgrade the firmware of the DVR.

  • Page 88: Operation

    8-8. Operation 8-8-1. Addition, Delete, and Modify of DVR Sites 8-8-1-1. Addition of Sites 1. Click SITE ADDITION button. And then the following window will be displayed as below. o Model: User has to select the proper DVR model. SDVR series, H series DVR ...
  • Page 89 8-8-1-3. Modification of Sites 1. Select the site/sites to modify from the directory window. 2. Click NET FINDER button. And then the following window will be displayed as below. 3. Click MODIFY button. And then the modified information is applied.

  • Page 90: Connect And Disconnect

    8-8-2. Connect and Disconnect 8-8-2-1. Connect 1. Select site/sites to connect from the directory window. 2. Click CONNECT button, and then site/sites displays/display as connected. 8-8-2-2. Disconnect 1. Select site/sites to disconnect from the directory window. 2. Click DISCONNECT button, and then selected site/sites disconnected.
  • Page 91 8-8-3. Still-image Capture During Live 1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.). 2. Click CAPTURE button. And then a Capture window will be displayed as below. 3. Set Save path, File Name, and File Format. And then click OK button. 4.

  • Page 92: Recording Video On Local Pc During Live

    8-8-4. Recording Video on Local PC during Live 1. Click SETUP button. And then a setup window will be displayed as below. 2. Select Record and set the values. 3. Select Disk and set the values. 4. Click RECORD ON button. And the color of button is changed. 5.

  • Page 93: Local Playback And Remote Playback

    8-8-5. Local Playback and Remote Playback 8-8-5-1. Playback of recorded video on local PC 1. Click LOCAL PLAYBACK button. And then Playback Window will be displayed over the Live Window. 2. Select site/sites to connect from the directory window. 3. Click CONNECT button.

  • Page 94: Playback Of Recorded Video On Remote Dvr

    8-8-5-2. Playback of Recorded Video on Remote DVR 1. Click REMOTE PLAYBACK button. And then Playback Window will be displayed over the Live Window. 2. Select the site to connect from the directory window. 3. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale window. 4.

  • Page 95: Avi Backup During Playback

    9-8-6. AVI Backup During Playback You can back up the recorded videos in AVI format during playback. 1. Double-click the target channel to backup. 2. Select the beginning time by using the search calendar and timeline scale bar. 3. Click MARK IN button on the timeline scale to select the beginning point of the backup.
  • Page 96 7. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by Window Media Player™ or other media player that is compatible with AVI format video. Notice When backing up as a NSF format, the user can playback using the HD Player, which is downloaded into the USB flash drive or DVD-R with the backup data.

  • Page 97: Network Access Using The Web-Browser Viewer

    9. Network access using the Web-browser Viewer The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Brower is only available for Internet Explorer) 1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS. 2. Input the IP address or Domain name address that you pre-registered on www.ddnscenter.com . 3.
  • Page 98 5. The Web Browser Viewer will be displayed as below after the ActiveX installation 6. Click the CONNECT button on the Left upper corner of web-viewer. Then “Connect” dialog is displayed. Enter IP address (or Domain name address that you pre-registered on www.ddnscenter.com, Port number and Password and click “Connect”...
  • Page 99 • Port No.: Input port number of DVR. Default Port Number is “5445”. • ID: Input ID of DVR. Default ID is “admin”. • Password: Input network password of DVR. Default Password is “1111”. 7. Then the cameras connected to the DVR are displayed on the screen. 8.

  • Page 100: Network Access Using The Smart Phone Viewer

    Android 1. Enter the Apple App Store 1. Enter the Android Market 2. Search “Vitek HD” in the App Store 2. Search “Vitek HD” in the Android Market 3. Install the “HD Connect” app. The Vitek Install the “HD Connect” App HD icon will then be displayed on the phone.
  • Page 101 iPhone Android 2. Select the “+” in the upper right hand 2. Select Live Preview, then select OK to add corner to add a DVR to the Device List 3. Input the Site Information, then select 3. Input Site Information, then select ADD Save...

  • Page 102: Connecting To Dvr

    Connecting to DVR iPhone Android 4. Select the saved site from My Devices 4. Select the saved site from the Devices list 5. Select the channels to view. (Max. 4 5. Select the channels to view Channels) After selecting the channel (Max.

  • Page 103: Live View

    Live View iPhone Android 6. Double tap a single channel to switch to 6. Double tap a single channel to switch to channel display. single channel display. single...

  • Page 104: Appendix: How To Connect The Network

    Pinch and Zoom 7. Use the pinch-zoom to digitally zoom. (Only available in single channel display) Notice 3G Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier. APPENDIX: How to Connect the Network How to set the IP address of the DVR and open TCP port of the router? The port forwarding steps will vary depending on the brand and model of the router.
  • Page 105 1. Default network setting on DVR are Port: 5445 WEB Port : 80 Network : DHCP 2. From a PC connected to the same Router as the DVR, select start>run>cmd to open the command prompt. In the command prompt, type “ipconfig” to find the following information; IP Address, Subnet Mask, and Default Gateway.
  • Page 106 Open your web browser. Enter the router IP address in the address bar and press enter. (NOTE: The routers gateway will vary depending on the brand and model of the router, please refer to your routers user’s manual) 4. Enter the user name and password and press the OK button. (NOTE: The username and password will vary depending on the brand and model of the router, please refer to your routers user’s manual) 5.
  • Page 107 6. Enter the each field. Application: Enter a description of the DVR (Example: store1) Start: Enter the first number of the port you need to port forward (Example: 5445) iii. End: Enter the last number of the port you need to port forward (Example: 5445) Protocol: Select Both.

  • Page 108: How To Access Dvr From A Remote Pc

    How to access DVR from a Remote PC? LAN Connection – Using a Switching Hub Connect an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN Cable) from the system to a router (hub) 1. Run the pre-install the network client software on the supplied CD. 2.
  • Page 109 Input Site Name, Site Address (IP address), Port No., and Password on the connect window. • Model: User has to select the proper DVR model. o SDVR series, H series DVR o N series DVR, HD DVR: Select this Model. If you select other Model, Network protocol does not match and network cannot be connected.
  • Page 110 Internet (ADSL) Connection Using DDNS Connect an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN Cable) from the system to a router (hub) 1. Go to SETUP>NETWORK. Set NETWORK TYPE as DHCP or LAN and set the DDNS SERVER to ON. And select ddnscenter.com on DDNS1.
  • Page 111  MAC Address: Input the Mac address of the unit (EX. 0002690XXXXX) without any spaces.  Serial Number: Input the Serial Number of the unit (EX. N1640Mxxxxxxxxx) without any spaces.  Domain Name: Input Domain Name for your DVR system (NOTE: Letters A-Z, numbers 0-9 are only applicable.
  • Page 112 • Model: User has to select the proper DVR model. o SDVR series, H series DVR o N series DVR, HD DVR: Select this Model. If you select other Model, Network protocol does not match and network cannot be connected. o IP Camera •...
  • Page 113 Specification 2 Channel HDcctv + 8 Channel Full D1 ITEM Video Compression H.264 (Main Profile) 2 HD-SDI (1080p25/30, 1080i50/60, 720p25/30/50/60 Auto Detection) Video Input 8 Composite (NTSC/PAL Auto Detection) 1 HDMI (Max. 1920x1080p60 and Various Resolution) Video Output 1 VGA (Max. 1920x1080p60 and Various Resolution) 1 CVBS , 4 SPOT OUT Audio Compression G.711...
  • Page 114 External Storage 1 e-SATA (up to 16TB) SMART HDD Error Check and Reporting using by Alarm and e-Mail File system Self-developed, Reliable and Stable File system User Interface Graphic User Interface, Mouse, IR Remote Controller and Keypad Dual Streaming Resolution, Frame Rate and Quality Control per Channel PC Client Live, Search/Playback, Backup and PTZF Web Client...
  • Page 115 VITEK warrants to the pur- chaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
  • Page 116 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
