Vitek VT-H40 Datasheet

VT-H40 / VT-H41

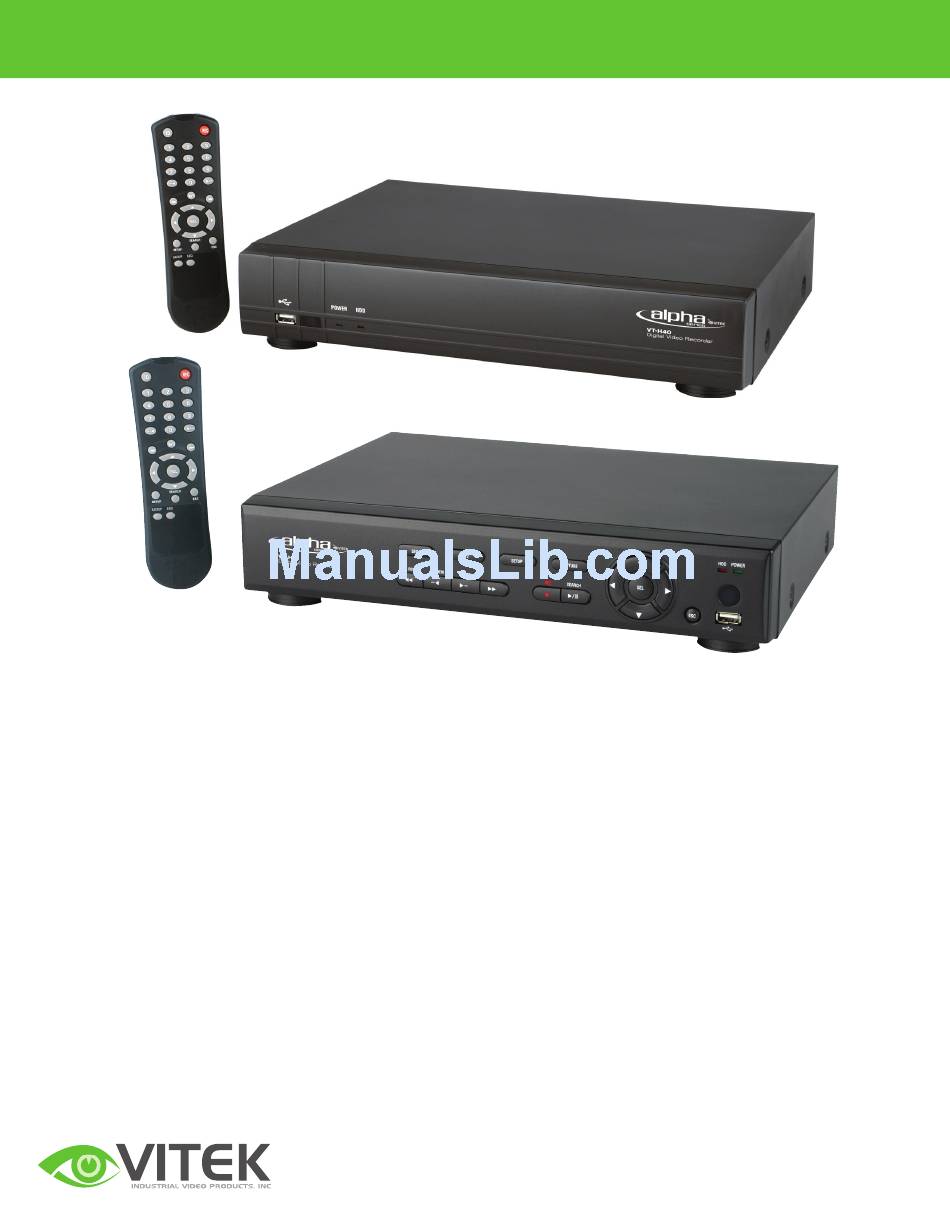

The Alpha series VT-H40 and VT-H41 Digital Recorders
combine the latest H.264 Compression technology with
stability and simple operation. H.264 Compression is the
next generation of MPEG4 allowing up to 50% smaller
file sizes for increased storage capability and/or resolution
as well as a more fluid internet transmission speed. Either
unit can be controlled via supplied IR Remote control
or remote client. Convenient front panel controls are
included on the VT-H41. Other features of the VT-H41
include RS485 PTZ control and Audio In (4ch)/Out (1ch).
VT-H40
VT-H41
4 Channel Digital Video Recorders with
FEATURES
•
4 Video Inputs with 1 BNC & 1 VGA Outputs
•
H.264 Compression
•
Supports both Dynamic and Static IP Addresses
•
Up to 120 IPS Recording / Live Display
•
Remote Viewing over the Internet or LAN
•
Supports one internal SATA Hard Drive
•
250GB to 1TB Internal Storage Options
•
Quadplex operation enabling simultaneous recording,
playback, networking, and backup
•
4 Alarm Inputs / 1 Relay Out
•
4 Audio Inputs & 1 Output (VT-H41 Only)
•
PTZ Control over RS-485(VT-H41 Only)
•
Control locally via Included IR Remote control, USB
Mouse, or Front Panel Controls (VT-H41 Only)
•
Backup via Ethernet or USB
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
H.264 Compression
