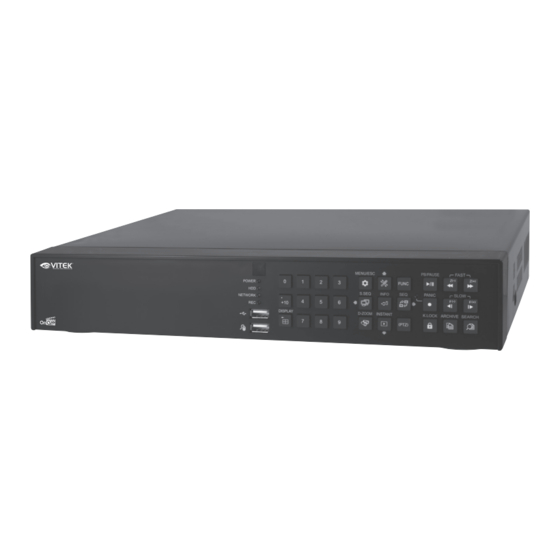

Vitek VT-HDOC4 User Manual

4 & 8 channel real-time hd-sdi digital video recorders
Hide thumbs Also See for VT-HDOC4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
• 4 or 8 HD-SDI Inputs with Full 1080p Camera Support
• Simple plug and play, point-to-point connection from camera to DVR
• VT-HDOC8: 240fps Live Display Speed at 720p/1080p & 240fps Recording &
Playback at 720p / 120fps at 1080p
• VT-HDOC4: 120fps Live Display Speed at 720p/1080p & 120fps Recording &
Playback at 720p / 60fps at 1080p
• HDMI, VGA, and BNC Outputs
• 2 Internal SATA2/SATA3 HDD Slots supporting up to 8TB (2 x 4TB HDD) using
Advanced HDD Format
• Optional External SATA Port (eSATA)
• Dual Recording Mode (Individually Selectable per Camera)
• Add 4 Analog SD Cameras (per HD input) with optional external box (VT-QHD4)
• Remote Viewing via local Software, Web Browser, and Mobile Phones (iOS/Android)
• Pentaplex Operation (Live, Playback, Recording, Backup, Network)
• Alarm In/Out
• 4 Channel Audio In
• 16 x 12 Motion Detection Grid
• Thumbnail Search
• Linear digital zoom for live and playback
• Embedded Web Server for Remote Setup & Viewing
• Up to 8 Simultaneous Network/Remote Connections
• 64 Camera Remote Viewing
VT-HDOC Series
4 & 8 Channel Real-Time HD-SDI

Digital Video Recorders

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-HDOC4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VT-HDOC4

Summary of Contents for Vitek VT-HDOC4

  • Page 1: Digital Video Recorders

    • VT-HDOC8: 240fps Live Display Speed at 720p/1080p & 240fps Recording & Playback at 720p / 120fps at 1080p • VT-HDOC4: 120fps Live Display Speed at 720p/1080p & 120fps Recording & Playback at 720p / 60fps at 1080p • HDMI, VGA, and BNC Outputs •...

  • Page 2: Table Of Contents

    VT-HDOC Series TABLE OF CONTENTS BEFORE INSTALLING ..........................3 UPDATING SYSTEM F/W ......................3 1.1.1 WITH A USB THUMB DRIVE ....................3 1.1.2 UPDATING FROM THE WEB MENU ................. 5 FRONT AND REAR ........................9 GETTING STARTED ..........................11 CONNECT AND SWITCH ON ...................... 11 TOOL BAR ..............................
  • Page 3 VT-HDOC Series 7.3.1 INSTALLATION ......................... 75 7.3.2 EXECUTION ........................76 7.3.3 LIVE VIDEO MONITORING ....................76 7.3.4 CONNECTION MANAGER ....................77 7.3.5 LIVE VIDEO WINDOW ..................... 79 7.3.6 PLAYER ..........................83...

  • Page 4: Before Installing

    VT-HDOC Series 1. BEFORE INSTALLING • Installation should be carried out only by qualified personnel and in accordance with electrical regulations in force. • The DVR must be placed on a stable surface or mounted in an approved cabinet. Adequate ventilation must be provided, taking particular care not to block any of the air vents on the DVR.
  • Page 5 VT-HDOC Series The ‘1.04D’ in the file name is the F/W version number. Please avoid updating if the version number of F/W file is lower than the current F/W version. 1.1.1.2 Preparing new F/W in the USB thumb drive All the required F/W files should be copied under the ‘dvr’ folder. Refer to the following steps: Plug the USB thumb drive into a PC.

  • Page 6: Updating From The Web Menu

    VT-HDOC Series Select “OK” and the following image will display The updating process can take from 1 to 10 minutes. Don’t remove the USB thumb drive during update. Don’t’ turn the DVR off during update. When the update is completed the DVR will reboot Remove the USB thumb drive from the DVR.
  • Page 7 VT-HDOC Series For more information on how to access the web GUI, refer to section 7.1, ‘WEB SERVER’ this user’s guide. Log in to the web GUI Go to ‘SYSTEM’ then ‘SYSTEM MANAGEMENT’. Refer to the below picture. Click the ‘F/W UPGRADE’ button In ‘F/W Update’...
  • Page 8 VT-HDOC Series When the 1 stage of updating has finished, [COMPLETE] will be displayed, and the system will reboot automatically. After the automatic reboot, the 2 stage of updating will start from the DVR (with the web connection closed). The 2 stage updating progress will be shown on the DVR (see following picture).
  • Page 9 VT-HDOC Series When the whole update is completed, the DVR will restart. Turning off the power during any stage of the F/W updating process will cause damage to the system.

  • Page 10: Front And Rear

    VT-HDOC Series 1.2 FRONT AND REAR [Front Type]   1. DVR Model 10. DIGITAL ZOOM  Enters digital zoom mode.   11. INFO 2. STATUS LED  Executes the selected function in the menu screen or Displays the information of the DVR (Stand –By), enters the selected submenu.
  • Page 11 VT-HDOC Series [VT-HDOC4 Rear Connections] [VT-HDOC8 Rear Connections]   1. Power Switch 7. DIGITAL VIDEO OUT Switch to turn the DVR ON & OFF. HDMI video output for the main monitor.  8. RJ-45 Ethernet Port  2. eSATA 10/100 Base –T, RJ-45 port for network...

  • Page 12: Getting Started

    VT-HDOC Series 2. GETTING STARTED 2.1 CONNECT AND SWITCH ON Connect HD cameras to camera inputs on the back of the DVR. Connect one or more monitors to the DVR using HDMI, VGA, CVBS. Connect power to the DVR. Press the power button on the back panel of the DVR to power on the DVR. [Logo Image] [Loading System] As the system boots up, you can view the loading process (see above).
  • Page 13 VT-HDOC Series [Log In] [Live video mode] The DVR begins normal operation and shows the default display of all 4 channels. The Tool bar at the bottom of the screen shows current time and date. Tool bar includes Log In-Out, Menu, Archive, Search, Display, PTZ &...

  • Page 14: Tool Bar

    VT-HDOC Series 3. TOOL BAR You can view the following Tool Bar when you move the mouse to the bottom of screen or press the “Tool bar button” on the front panel. 3.1 STATUS DISPLAY You can check the Current time / Network connection/ USB storage connection/ Auto sequence/ HDD location currently recorded.

  • Page 15: Log Off

    VT-HDOC Series 3.2 LOG OFF There are two ways to log off. One is a manual log off, and the other is an automatic log off after the configured time has passed (between 1 and 99 minutes). [Log-Off by using TOOL BAR] Press the LOG OFF button to log out the current user.

  • Page 16: Search Menu Pop-Up

    VT-HDOC Series 3.5 SEARCH MENU POP-UP To search for a particular section of recorded footage, press the SEARCH button. To protect unauthorized viewing of footage, only authorized users can playback footage.

  • Page 17: Display Pop-Up

    VT-HDOC Series 3.6 DISPLAY POP-UP To configure the display mode, press the display button. You can select Quad / Single/ Auto sequence by selecting the item in pop-up menu. : Single Screen Mode. : Quad Screen mode. : Auto Sequence 3.7 PTZ MODE When in quad display mode, the PTZ control panel will be opened for the selected camera (camera that is highlighted).

  • Page 18: Digital Zoom

    VT-HDOC Series 1 : Select channel for PTZ control . ‘DETAIL’ of PTZ menu settings 2 : Display PTZ control parameters which are set under the 3 : Number to configure Preset . 4 : Select current screen as Preset. 5 : Move to configured Preset Number.

  • Page 19: Log List

    VT-HDOC Series 1 : You can move Zoom Box : If you press this button, you can control zoom box by 5 levels. 2 : Currently Zooming screen. [Zoom by using the Mouse] At full screen mode, you can select the area to zoom in/out by clicking/holding the left mouse button and dragging.
  • Page 20 VT-HDOC Series 1 : Log item number (ordered by date from the most recent. ( Max 10,000 can be recorded) 2 : Date / Time 3 : Log list Items listed in log list.  Menu Changed  Power ON/OFF ...

  • Page 21: Panic Record

    VT-HDOC Series  Watch dog  Menu Initialize  HDD Initialize  Media Backup I/O Error  Media Backup I/O Fail 3.10 PANIC RECORD You can turn on “Panic Record” by selecting the Panic Record button on the Tool bar menu. PANIC REC START: Starts the panic record mode.

  • Page 22: Search & Playback

    VT-HDOC Series 4. SEARCH & PLAYBACK 4.1 TIME / CALENDAR SEARCH The DVR uses a calendar and timeline search method for quick access to recorded footage. 1 : SEARCH HDD : You can select the HDD to search  RECORD : You can search HDD selected as Record. ...
  • Page 23 VT-HDOC Series  : Fast Play 6 : QUAD / SINGLE : Change the playback screen  QUAD : Quad screen playback mode  SINGLE : Single screen playback mode TIME / EVENT : You can select “time line screen” or “event list screen”. ...

  • Page 24: Panorama Search (Thumbnail Search)

    VT-HDOC Series 10 : HOUR SELECT LINE: Displays time in Time line mode. If the selected calendar day has recorded data, the hour’s with data will be shaded Press the “Front enter key” or use the left mouse button to click on the desired hour; the selected time will be displayed by minute.
  • Page 25 VT-HDOC Series : Changes between Hours, Minutes, and Seconds : : Changes between Hours, Minutes, and Seconds...

  • Page 26: Event Search

    VT-HDOC Series 4.3 EVENT SEARCH 1 : You can configure which Event Type will be displayed in Event list .  ALL EVENT : Display all events.  SENSOR : Display Sensor Event.  VIDEO LOSS : Display Video loss Event. ...

  • Page 27: Copy

    VT-HDOC Series 4.4 COPY There are two ways to input the copy time. One is that you can manually enter the desired ‘From’ and ‘To’ times in the ‘COPY’ panel. The other is taking the ‘Start time’ and ‘End time’ by right-clicking on the required time in the ’...
  • Page 28 VT-HDOC Series PTZ: Selecting PTZ will bring up the PTZ control screen. PTZ can only be controlled by an authorized user. ZOOM : This executes the digital zoom control screen.
  • Page 29 VT-HDOC Series INSTANT PLAYBACK: Selecting PLAYBACK will allow the user to view instant playback of the selected camera from 10, 20, 30 seconds or 1 minute ago. If GO TO is selected the user can select the time they wish to view.
  • Page 30 VT-HDOC Series Once the instant playback time has been selected, the instant playback window will pop-up (see below picture).

  • Page 31: How To Configure

    VT-HDOC Series 6. HOW TO CONFIGURE To view the setup menu, press menu button on the Tool Bar. The following screen will be displayed: 6.1 CONFIGURING CAMERA To set-up the various camera options, highlight CAMERA and press ENTER. 6.1.1 SETUP TITLE: For each camera, a title of up to 8 characters can be set using the virtual keyboard.

  • Page 32: Ptz

    VT-HDOC Series 6.1.2 PTZ ADDRESS: The unique ID of the PTZ device. PROTOCOL: The protocol of the PTZ device. BAUD RATE: The baud rate of the PTZ device. PTZ properties can also be adjusted for each channel by selecting DETAIL and pressing ENTER. Auto Focus, Auto IRIS, P/T speed, zoom speed, focus speed, IRIS speed Note that some settings, such as AUTO FOCUS, may not be compatible with particular PTZ equipment.

  • Page 33: Motion

    VT-HDOC Series 6.1.3 MOTION SENSITIVITY: Between 1 (Lowest) and 10 (Highest) determines the degree of sensitivity of motion dectection. AREA SETUP: Choosing this option allows the operator to define which areas of the image are monitored for motion detection. Green grid squares represent detection areas, blank areas are ignored.
  • Page 34 VT-HDOC Series To select or deselect specific areas, use the left mouse click. Clicking on each cell toggles the setting to be enabled or disabled. By dragging with the left mouse button down, the rectangle area can be selected. Selecting ‘AREA ENABLE’ or ‘AREA DISABLE’...
  • Page 35 VT-HDOC Series...

  • Page 36: Configuring Display

    VT-HDOC Series 6.2 CONFIGURING DISPLAY To set-up the various display options, highlight DISPLAY and press ENTER. 6.2.1 OSD STATUS BAR TIMEOUT: Turns the Tool bar at the bottom of the live display to ALWAYS ON or sets the auto-off delay time. CAMERA TITLE: Determines whether the camera title is displayed.

  • Page 37: Monitor

    VT-HDOC Series 6.2.2 MONITOR ALARM POP-UP MODE: When set to ON, an alarm input will cause the associated channel to display full screen. ALARM POP-UP DWELL: Determines how long the full screen popup is displayed after an alarm input. If the alarm condition continues, the popup screen is displayed constantly. MOTION POP-UP MODE: When set to ON, motion detection will cause the associated channel to display full screen.

  • Page 38: Sequence

    VT-HDOC Series 6.2.3 SEQUENCE SEQUENCE DWELL: The time that each screen is displayed in a sequence operation.

  • Page 39: Configuring System

    VT-HDOC Series 6.3 CONFIGURING SYSTEM To set-up the various system options, highlight SYSTEM and press ENTER. 6.3.1 DATE/ TIME DATE&TIME: Allows the operator to set or modify the current date & time. DATE FORMAT: Determines how the date is displayed. TIME FORMAT: Determines how the time is displayed.
  • Page 40 VT-HDOC Series SYSTEM INFORMATION: Select INFO to display F/W VERSION: Shows the firmware version of the DVR H/W VERSION: Shows the hardware version of the DVR. UI VERSION : Shows the UI version of the DVR VIDEO SIGNAL TYPE: The DVR can be selected between PAL and NTSC via a selector HDD1: Shows the hard drive 1 capacity installed.

  • Page 41: Sound

    VT-HDOC Series performance and add extra features. The operator can upgrade the firmware using a USB memory stick. Note: To upgrade firmware, you have to use the top USB port. FACTORY DEFAULT: Factory default settings can be loaded. SYSTEM DATA: System settings can be saved to a USB memory stick. The settings can be reloaded in case of accidental factory reset or can be transferred to another DVR if multiple units need to be installed with the same settings.

  • Page 42: Configuring User

    VT-HDOC Series 6.4 CONFIGURING USER To set-up the User Authority options, highlight USER and press ENTER 6.4.1 USER REGISTER...

  • Page 43: User Authority

    VT-HDOC Series By default the DVR is configured with a USER ID of ADMIN belonging to the ADMIN group and with a password of 1234. As well as the ability to add new users, existing user’s defaults can be modified. The maximum number of users that can be created is 10.

  • Page 44: Log Out

    VT-HDOC Series 6.4.3 LOG OUT AUTO LOGOUT: Selects if auto log-out is ON or OFF. DURATION: If auto logout is set to ON this determines the time. (in 1 - 10 Min) Press APPLY to save settings...

  • Page 45: Configuring Network

    VT-HDOC Series 6.5 CONFIGURING NETWORK To set-up the Network options, highlight LINK and press ENTER. 6.5.1 IP SETUP DHCP: When selected, the DVR will obtain an IP address automatically if connected to a DHCP server or router. IP ADDRESS: If DHCP is not being used the IP address can be manually set. GATEWAY: If DHCP is not being used the Gateway can be manually set.

  • Page 46: Ddns

    VT-HDOC Series 6.5.2 DDNS DDNS: When enabled, the DVR can be accessed through a dynamic DNS server. Commonly used if a broadband connection does not have a static IP address. Press to save settings. 6.5.3 EMAIL USE DEFAULT SERVER: Selects On or OFF. If you turn Default sever as ON, mail will be sent by the default mail server .
  • Page 47 VT-HDOC Series PASSWORD: If SECURITY is set to ON, enter the password here. FROM: Input an email address or text. TEST: Send a test e-mail with the specified server information to verify the delivery.

  • Page 48: Configuring Record

    VT-HDOC Series 6.6 CONFIGURING RECORD To set-up the various recording options, highlight RECORD and press ENTER. 6.6.1 CONTINUOUS You configure Continuous Record mode. SIZE : You can select what resolution of video will be recorded as follows;  1080p Camera Input : 1920x1080 / 960x540 /480x270 ...

  • Page 49: Event

    VT-HDOC Series 6.6.2 EVENT For triggered events, you can configure the recording conditions: MOTION EVENT : You can configure the recording condition when motion is triggered. ETC EVENT : You can configure the recording condition for Alarm / V-Loss.  FPS : NTSC : You can configure frame rate as 0 / 1 / 2 / 4 / 5 / 8 / 15 /30 at NTSC Mode or 0 / 1 / 2 / 4 / 5 / 7 / 13 / 25 at PAL mode.
  • Page 50 VT-HDOC Series Day or Week mode is set under the ‘MISC’ menu under RECORD setup page. DAY : You can configure the recording type by hour and by channel. This mode is for the demand that all days have the same recording schedule regardless of the day of the week . WEEK : In this mode, you can configure the recording type by hour, by channel and by the day of the week.

  • Page 51: Panic Setup

    VT-HDOC Series 6.6.4 PANIC SETUP During panic recording mode, the DVR will override all other recording settings and record continuously on all channels at the settings configured here. SIZE : You can select what resolution of video will be recorded as follows; ...

  • Page 52: Misc

    VT-HDOC Series 6.6.5 MISC. SCHEDULE MODE: Either DAILY (one schedule will apply to every day of the week) or WEEKLY (each day of the week has its own schedule). PRE EVENT RECORDING TIME: When the DVR is not in continuous recording mode, this setting determines the amount of footage that is always recorded before an event occurs (motion detection, alarm input etc.) POST EVENT RECORDING TIME: You can configure how long the system keeps event recording...

  • Page 53: Configuring Event/Sensor

    VT-HDOC Series 6.7 CONFIGURING EVENT/SENSOR You can configure the Event/Sensor activations such as Alarm Input / Alarm Output / Buzzer Out / E-Mail / PTZ Preset. 6.7.1 ALARM INPUT SETUP You can configure Alarm input . OPERATION : You can configure activation when Sensor is triggered. ...

  • Page 54: Alarm Output Setup

    VT-HDOC Series 6.7.2 ALARM OUTPUT SETUP You can cofniture the activation Relay output . ALARM OUT : Select Relay 1 for configuration OPERATION : You can configture the output status of Relay 1.  DISABLE : Relay is disabled  ENABLE : Relay is enabled once an event is triggered.

  • Page 55: Buzzer Output Setup

    VT-HDOC Series 6.7.3 BUZZER OUTPUT SETUP You can configure the Buzzer output when an event is triggered. OPERATION : You can configure the output status of the Buzzer.  DISABLE : Buzzer is disabled when an event is triggered.  ENABLE : Buzzer is enabled when an event is triggered.

  • Page 56: E-Mail Setup

    VT-HDOC Series 6.7.4 E-MAIL SETUP You can configure the DVR to send E-mail notifications when an event is triggered. NOTIFICATION : If you select “ON”, an E-mail will be sent when an event is triggered. SETUP CHANGE : If you select “ON”, an E-mail will be sent when the menu configuration is changed.

  • Page 57: Configuring Disk

    VT-HDOC Series PTZ CAMERA: Select the PTZ camera for the following configuration to be applied. OPERATION : Can be set to Enable/Disable  DISABLE : Disables this feature  ENABLE : Enables this feature. ALARM PRESET : When an alarm Sensor is triggered, you can configure what preset the PTZ will go to by seletcing the preset number in the dropdown box.
  • Page 58 VT-HDOC Series  RECORD : You can select HDD as record HDD.  MIRRORING : You can select HDD as mirroring HDD. S.M.A.R.T : You can view S.M.A.R.T information of HDD.  GOOD : It shows current HDD condition is good. ...

  • Page 59: Remote

    VT-HDOC Series 7. REMOTE 7.1 WEB SERVER The DVR prepares the web server internally. This server consists of two services. One is for the remote configuration of the DVR setup and the other is for the client viewer (based on Active-X). Using the remote configuration, you can configure all of the features of the DVR.

  • Page 60: Connect To Web Server

    VT-HDOC Series 7.1.1 CONNECT TO WEB SERVER Enter the IP address of DVR into the ULR bar (see picture below) LOCAL NETWORK ACCESS: To find the IP address of the DVR, go to the ‘INFO’ section under the SYSTEM/MANAGEMENT of the DVR’s menu. If you are on the same network as the DVR, you can use the DVR’s IP address to access it.

  • Page 61: Web Configuration Page

    VT-HDOC Series 7.1.2 WEB CONFIGURATION PAGE In the web configuration page, you can set the DVR operations remotely. Tested Web Browser List  Microsoft Internet Explorer○  Mozilla Firefox○  Google Chrome Browser○  Opera Browser○  Apple Safari○ Features Configuring the DVR setup remotely After entering the ADMIN password and clicking ‘LOGIN’, you can navigate to the page where you can configure the setup menu of DVR.

  • Page 62: Web Viewer (Active-X)

    VT-HDOC Series 6: Cancling or applying the modification CANCEL : Ignore any modification and the settings are restored to the previous setting SAVE: the modified settings are applied to DVR and saved In order to apply or save, you should click the ‘SAVE’ button. Otherwise all the changes will be lost.
  • Page 63 VT-HDOC Series NOTE: To install properly, connect your PC to the internet. NOTE: ‘Web Viewer’ is certificated with the name ‘NEOXENTEC SYSTEMS CO.LTD’, who designs the application. NOTE: The first execution of ‘Web Viewer’ will install the application first. NOTE: If a new updated version of ‘Web Viewer’ is found, updating starts automatically before execution.
  • Page 64 VT-HDOC Series will show the way to install the ‘IE TAB’. Click the ‘Add to Firefox’ will enable supporting Active-X plugin. How to execute the ‘Web Viewer’ from the Firefox Enter the IP of DVR into the URL bar of Firefox. Right-click the link ‘AcitveX WEB Viewer’...
  • Page 65 VT-HDOC Series 7.1.3.3 Log In : Enter the USER name registered in the DVR : Enter the Password for the selected user. The user authority functions (live view, search & playback, PTZ control, etc.), are controlled by the USER AUTHORITY settings in the DVR menu.
  • Page 66 VT-HDOC Series 7.1.3.4 Live Preview After logging in, the live preview screen will be shown (see below). Features User log-in/out feature (RECONNECT) Monitoring live view Snapshot and save as JPEG Control the resolution and quality of video stream The colored rectangle around video shows the currently selected camera 1: IP of DVR connected remotely 2: display split mode selection ...
  • Page 67 VT-HDOC Series : Switching between the live and search & playback : Full screen video view. Press ‘ESC’ to return to the window : Set the default save location for JPEG/AVI 5: Date & Time of Camera transferred from the DVR 6 : Channel Title and the resolution of the transferred video ...
  • Page 68 VT-HDOC Series 1: Camera Channel number which is currently selected. PRESET OPERATION OF PTZ ZOOM/FOCUS/IRIS CONTROL DIRECTION CONTROL (PAN & TILT) Network Stream Config : Open the ‘Network Stream Config’ panel where you can choose the resolution and the quality for the transferred video. The changes will affect all channels. ...
  • Page 69 VT-HDOC Series  Level 5: 720p : 1280x720 / 1080p : 1920x1080 Default Value: 640x360 for 720p, 960x540 for 1080p 2: Modify the quality of video (5 steps): LOW,NORAL,HIGH,BEST,SUPER Default Quality: ‘HIGH’ 3: Apply the modification (SET) and close the panel 7.1.3.6 Search &...
  • Page 70 VT-HDOC Series  : Reverse Fast  : Reverse Slow  : Reverse Normal Speed  : Pause  : Forward Normal Speed  : Forward Slow  : Forward Fast Steps for fast playback : x2, x4, x8, x16,x30, x60, x120 Steps for slow playback : 1/2, 1/4, 1/8, 1/16, 1/30, 1/60, 1/120 4: Fast Playback Speed &...
  • Page 71 VT-HDOC Series  Begin: The start time of the recording  End: The end time of the recording  Copy Start: executing the copy operation 9 : Choose search type between ‘TIME’ and ‘EVENT’. The time selection table ‘10’ in the above picutre is used for one of the two search type’s ...
  • Page 72 VT-HDOC Series  : Right-click the minute bar to show the pop-up menu  : Takes the ‘COPY START TIME’ from the selected time cell and puts it into the ‘Begin’ of the COPY control panel.  : Takes the ‘COPY END TIME’ from the selected time cell and puts it into the ‘End’...

  • Page 73: Ddns Server

    VT-HDOC Series 7.2 DDNS SERVER You can get Domain Name Service through the DDNS server. 7.2.1 HOW TO REGISTER http://ddns.vitekcctv.com Input the following URL into your browser: ANDROID VIEWER: You can download Android Viewer ( iPocketViewer) DDNS SERVER: Press the DDNS Server link to go to the DDNS server page. LOGIN ID : Input USER ID.
  • Page 74 VT-HDOC Series LOGIN ID : Create an ID. PASSWORD : Create a Password.. CONFIRM PASSWORD: Input the password again to confirm the password.

  • Page 75: Input Dvr Information

    VT-HDOC Series 7.2.3 Input DVR information. You need to register domain name to get the service and input MAC address into DDNS server. 1 : List number of registered DVR 2 : Mac address of registered DVR (under system info in DVR) 3 : Domain name of registered DVR.

  • Page 76: Dvr Manager

    VT-HDOC Series 7.3 DVR MANAGER The DVR MANAGER is a ‘Remote Client DVR Viewer’ The program allows the user to monitor live video, Search & Playback, and Download Recorded Video from the DVR (Remote COPY). [Minimum & Recommended Specification of PC] Minimum Recommended Operating System...

  • Page 77: Execution

    VT-HDOC Series : Complete Message Window 7.3.2 EXECUTION After installing the program successfully, a shortcut named ‘OnCue Viewer’ will be created. Clicking this icon executes the OnCue Viewer. : Shortcut and icon of DVR Manager 7.3.3 LIVE VIDEO MONITORING The initial window of OnCue Viewer is composed of the picture below. 1 : CONNECTION MANAGER: for registering or deleting the DVR to/from the DVR List.

  • Page 78: Connection Manager

    VT-HDOC Series  FOLDER SELECT: Choose or make the folder for the data to be copied to.  SAVE: Apply and save the current modification.  CLOSE: exit the ‘Config’ pop-up. 4 : SPLIT MODE SELECTION: choose the number of cameras which will be shown in the live preview window.
  • Page 79 VT-HDOC Series DVR Name : The name which you give to the DVR DVR Address : specify the IP address of the DVR DVR Port : Input the DVR Port of the DVR. The value should be the same as the one specifed in the DVR’s menu.

  • Page 80: Live Video Window

    VT-HDOC Series Remove : remove the selected DVR from the DVR list. Close : close the CONNECTION MANANGER 7.3.5 LIVE VIDEO WINDOW Live camera video are monitored in this window. Features of the LIVE VIDEO WINDOW Montioring live camera video Swap the position of two cameras Snapshot and save it into the PC as a JPEG file.
  • Page 81 VT-HDOC Series The swapped camera positions will go back to the original locations in the event the DVR manager is restarted or the connection is re-established. 7.3.5.3 Digital Zoom in Live View Area selection by right click of mouse dragging on the desired channel will activate the digital zoom for the specified area.
  • Page 82 VT-HDOC Series : Save the current image (the selected channel with the colored border) to the PC as a JPEG file. : Open the PTZ control panel, which controls the PTZ camera of the selected channel. 1: Camera Channel number which is currently selected. PRESET OPERATION OF PTZ ZOOM/FOCUS/IRIS CONTROL DIRECTION CONTROL (PAN &...
  • Page 83 VT-HDOC Series 1: Resolution selection (5 levels)  HD SDI DVR  Level 1: 720p : 320x180 / 1080p : 480x270  Level 2: 720p : 640x180 / 1080p : 960x270  Level 3: 720p : 640x360 / 1080p : 960x540 ...

  • Page 84: Player

    VT-HDOC Series execute the Player for search & playback.  CONNECT: Connect to the selected DVR  DISCONNECT: Disconnect the selected DVR  RUN PLAYER : Execute the Player for the remote search & playback. 7.3.5.6 DVR Information This panel shows information of the DVR which is currently highlighted in the DVR List. 7.3.6 PLAYER The Player supports the following features: Live video monitoring for the connected DVR...
  • Page 85 VT-HDOC Series 7.3.6.2 Log In : Enter the USER name of DVR registered in the DVR : Enter the password for the selected user. The user authority and allowed functions, live preview, search & playback, PTZ control and etc., are controlled by the USER AUTHORITY setting in the DVR setup USER ID and password is case-sensitive.
  • Page 86 VT-HDOC Series The colored rectangle around video shows the currently selected camera 1: Application Title 2: Display split mode selection  : Single camera view  : Quad split view 3: WEB Viewer Minimize/Maximize/Close  : Minimize the window  : Maximize the window ...
  • Page 87 VT-HDOC Series For details about the JPEG Snapshot/PTZ Control/Video Configuration, refer to the same feature of Web Viewer. 7.3.6.4 Search & Playback Toggles between the search & playback window Features User log-in/out feature (RECONNECT) Swiching between the live preview and the search & playback Search &...
  • Page 88 VT-HDOC Series  : Forward Normal Speed  : Forward Slow  : Forward Fast Steps for fast playback : x2, x4, x8, x16,x30, x60, x120 Steps for slow playback : 1/2, 1/4, 1/8, 1/16, 1/30, 1/60, 1/120 4: Fast Playback Speed & Direction Control Bar ...
  • Page 89 VT-HDOC Series  To: The end time of the recorded data to be copied  Copy Start: Begins the copy operation TAG name and Channel have to be defined before user can copy. 9 : Choose search type: ‘EVENT’ or ‘TIME’. The time selection table tagged ‘10’ in the above picutre is used for one of this two search type ...
  • Page 90 VT-HDOC Series  : Select the search mode to ‘EVENT Search’.  Event Type(Search Condition)  All: For all kinds of recording events  Sensor: sensor input event  Video Loss: lost video event  Motion Detection: all motion events ...
  • Page 91 Detailed Specifications VT-HDOC4 VT-HDOC8 Video Input / Resolution 4 CH HD-SDI Inputs 8 CH HD-SDI Inputs Main Monitor Output 1 HDMI Sub Monitor Output 1 VGA (up to 1920x1080) Spot Output 1 BNC Audio In/Out 4 line in (RCA) / 1 line out (RCA) & HDMI Audio Output...
  • Page 92 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
  • Page 93 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
