Vitek VT-HDOC Series Manual

Vt-hdoc series 4, 8, & 16 channel hd-sdi digital video recorders

Hide thumbs Also See for VT-HDOC Series:

User manual (93 pages)

Table Of Contents

Table of Contents

Quick Links

Digital Video Recorders

Table of Contents

Need help?

Do you have a question about the VT-HDOC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VT-HDOC Series

Page 1: Digital Video Recorders

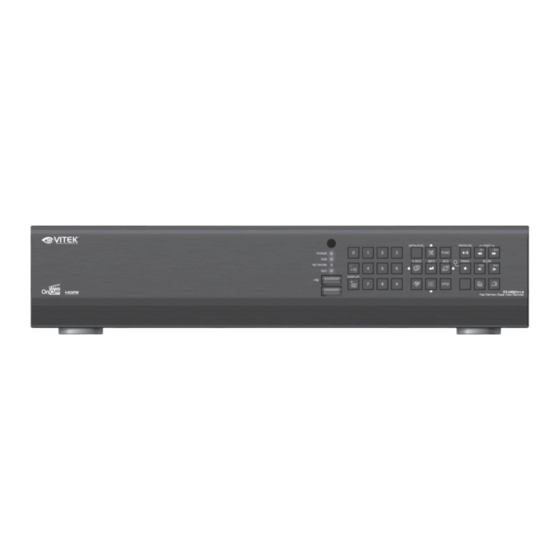

VT-HDOC Series 4, 8, & 16 Channel HD-SDI Digital Video Recorders • 4, 8, or 16 Channel HD-SDI Inputs with Full 1080p Camera Support • Hybrid Operation: Supports HD-SDI, D1, & 960H Analog cameras (8 & 16 Channel Models) • Simple plug and play, point-to-point connection from camera to DVR •...
Page 2: Table Of Contents
VT-HDOC Series TABLE OF CONTENTS BEFORE INSTALLING ........................3 UPDATING SYSTEM F/W ....................3 1.1.1 WITH A USB THUMB DRIVE..................3 1.1.2 UPDATING FROM THE WEB MENU ............... 5 DESCRIPTION OF FRONT PANEL .................. 7 DESCRIPTION OF REAR PANEL ..................8 GETTING STARTED ........................
Page 3 VT-HDOC Series 6.7.4 PANIC ........................52 6.7.5 MISC ........................53 CONFIGURING NETWORK .................... 54 6.8.1 IPSETUP ......................... 54 6.8.2 DDNS ........................55 6.8.3 E-MAIL ........................55 REMOTE ............................56 WEB SERVER ......................... 56 7.1.1 CONNECT TO WEB SERVER ................57 7.1.2...
Page 4: Before Installing
VT-HDOC Series 1. BEFORE INSTALLING • Installation should be carried out only by qualified personnel and in accordance with electrical regulations in force. • The DVR must be placed on a stable surface or mounted in an approved cabinet. Adequate ventilation must be provided, taking particular care not to block any of the air vents on the DVR.
Page 5 VT-HDOC Series  Please avoid updating if the version number of F/W file is lower than the current F/W version.  The ‘v1.04D in the file name means the F/W version. 1.1.1.2 Preparing new F/W in the USB thumb driver All the required F/W files should be copied under the ‘dvr’...
Page 6: Updating From The Web Menu
VT-HDOC Series Prepair USB dirve (format in fat32) and create folder with the name “dvr” download updated firmware from http://vitekcctv.com/Downloads.asp into “dvr” folder Cycle the DVR’s power (turn DVR Off then On and boot up) Plug the prepared USB thumb drive in the USB port of DVR. Only the upper USB port in the Front panel of DVR is allowed to update the F/W.
Page 7 VT-HDOC Series Click the ‘F/W UPGRADE’ button In ‘F/W Update’ pop-up, click the ‘BROWSE’ button locate and select the firmware. Choose the provided F/W files which has the file extension ‘tar.gz or tgz’. Click the ‘UPLOAD’ button to upload the F/W to the system.
Page 8: Description Of Front Panel
VT-HDOC Series System shows the [COMPLETE] when it finish of updating step and reboot automatically. When the whole update is completed, the DVR will restart and be ready to work. Turning off the power in any process of f/w updating cause the damage of the system.
Page 9: Description Of Rear Panel
VT-HDOC Series • Enters PTZ control mode. 15. PLAY / PAUSE • In playback mode, Pause / Play key will toggle. • [ ] Back Space, deletes and moves character to the left. Toggles between various 16. REVERSE FAST multiple displays. 4 channel-splits screen display.
Page 10: Getting Started
VT-HDOC Series [Rear panel of 8ch Hybrid-DVR] [Rear panel of 16ch Hybrid-DVR] 1.Power Switch(Only the 4CH HYBRID-DVR) 7.RJ-45 Network Port( 1G Base-T) Switch to turn the DVR ON & OFF. Network port is used to 1G base-T, PC applicatio n software or Mobile application.
Page 11 VT-HDOC Series Connect power to the DVR. Press the power button on the back panel of the DVR to power on the DVR. [Logo Image] Initial set resolution is 1024 x 768, so you should use monitor higher than 1024x768 [Loading….]...
Page 12 VT-HDOC Series button [Log-In] [live mode of 4 channels] [live mode of 8 channels]...
Page 13: Tool Bar
VT-HDOC Series [live mode of 16 channels] 3. TOOL BAR You can view the Tool Bar when you move the mouse to the bottom of screen. The Tool bar display will disappear after pre-defined amount of time or exit with exit button ( ).
Page 14: Log Off
VT-HDOC Series : Shows the selected default audio channel. LOG OFF There are two way’s to log off. One is manual log off and the other one is automatic log off after configured time passed. User manually log off or in the menu you can set automatic log off after certain amount of time.
Page 15: Quick Copy Menu Pop-Up
VT-HDOC Series QUICK COPY MENU POP-UP If you click following icon, instant Backup menu will be pop up. You can save the data 10 minutes from the current time. SEARCH MENU POP-UP To search a particular section of recorded footage, click the SEARCH button.
Page 16: Digital Zoom
VT-HDOC Series [PTZ Controller Screen] 1: Select channel for PTZ control. 2: Display PTZ control parameters which are set under the ‘DETAIL’ of PTZ menu settings 3: Number to configure Preset. 4: Save current screen as Preset. 5: Move to configured Preset Number.
Page 17 VT-HDOC Series : You can move Zoom Box : If you press this button, you can control zoom box by 5 levels. Currently Zooming screen. [Zoom by using Mouse]...
Page 18: Log List
VT-HDOC Series In full screen mode, you can select the area to zoom in/out by holding down left Mouse button. (Drag), Clicking on the zoomed screen, the display returns to the original screen. Digital Zoom supported in Live / Play mode Digital Zoom supported only in Full screen mode.
Page 19 VT-HDOC Series 3 : Log list Items listed in log list.  Power ON/OFF  Backup Start  Disk Format  Factory Default  Camera Menu Change  PTZ Menu Change  OSD Menu Change  Monitor Menu Change ...
Page 20 VT-HDOC Series  HDD 1(1 ~ 5) Error For Read  HDD 1(1 ~ 5) Fail For Read  Network Connected  Time Adjust  Network Disconnected  DVR Watchdog Reset  Menu Data Backup Succeeded  Menu Data Load Succeeded ...
Page 21: Panic Record
VT-HDOC Series  Copy Fail  Backup Start  Backup Stop  Power OFF 3.10 PANIC RECORD You can turn on “Panic Record” by selecting the Panic Record button on the Tool bar menu PANIC REC START: Starts the panic record mode. Use the Left mouse click to select.
Page 22 VT-HDOC Series  EVENT: The recorded data can be searched using the event list. 2 : SEARCH HDD : You can select the HDD to search  RECORD: You can search HDD which is selected as Record.  MIRRORING: You can search HDD which is selected as Mirroring.
Page 23: Panorama Search
VT-HDOC Series  : Reverse Fast Play  : Reverse Slow Play  : Reverse Play  : Pause  : Play (x1)  : Slow Play  : Fast Play 6:COPY: You can copy the data to external USB storage.
Page 24: Basic Operation
VT-HDOC Series 4.2.1 BASIC OPERATION If you select the panorama channel, search mode will be changed to PANORAMA Mode. Using front channel key or mouse double click, select channel among 16ch multi-channel. Front key 1 can be chosen for first-left channel among 16ch If you select the date of Calendar, panorama playing back will be started from first recorded data in selected date.
Page 25: Event Search
VT-HDOC Series  : Shows previous panorama. (ex: if currently playback 17~33 sec, then move to playback by 1~16sec)  : Shows next panorama. (ex: if currently playback by 1~15sec, then move to playback by 17~33sec)  : Select channel to be played back by panorama.
Page 26: Copy
VT-HDOC Series 2: Preview: Events selected in the list displays a preview of the record. 3. Search result: event list displayed.  No: Number of event display, recent event display with No.1  DATE/TIME: Display Event triggered time.  CHANNEL: Display Event channel ...
Page 27: Quick Menu
VT-HDOC Series TAG NAME: Name file folder of backup. DEVICE: You can select which port of USB to copy to. CHANNEL: You can select which channel to copy. Quick FROM/TO set up: Right click on time bar on time to start the copy from and select START TIME then Right click on time to end copy and select END TIME Copy start: start copy with selected time and condition.
Page 28 VT-HDOC Series FREEZE ON (pause) : If you press Freeze button, all screen will be stopped. FREEZE OFF : You can release Freeze mode by pressing Freeze Off. PTZ: Selecting PTZ will bring up PTZ control screen. PTZ can only be controlled by an...
Page 29 VT-HDOC Series ZOOM : This opens digital zoom control screen. Zoom mode will be activated in the channel you selected by mouse. Live Audio: Select the live audio channel. PlayBack: Select 10,20,30, 1 minute of recording or you can select...
Page 30: How To Configure
VT-HDOC Series 6. HOW TO CONFIGURE To view the setup menu, press menu button in toolbar. Following screen will be displayed. CONFIGURING CAMERA To set-up the various camera options, left click on CAMERA icon...
Page 31: Title
VT-HDOC Series 6.1.1 TITLE TITLE: Up to 10 characters can be set by using the virtual keyboard. Double click under TITLE which camera (CH1~CH16) you would like to add a Title for 6.1.2 ADJUST Choose the ‘ADJUST’ menu for setting of video features of camera. You can adjust the video features such as ‘BRIGHTNESS’, ‘CONTRAST’, ‘SHARPNESS’...
Page 32: Ptz
VT-HDOC Series 6.1.3 PTZ ADDRESS: The unique ID of the PTZ device. PROTOCOL: The protocol of the PTZ device. BAUD RATE: The baud rate of the PTZ device. PTZ properties can also be adjusted for each channel by selecting the DETAIL .Auto Focus, Auto IRIS, P/T speed, zoom speed, focus speed, IRIS speed can all be adjusted Note that some settings, such as AUTO FOCUS, may not be compatible with particular PTZ equipment.
Page 33: Motion
VT-HDOC Series 6.1.4 MOTION SENSITIVITY: Between 1 (Lowest) and 10 (Highest) determines the degree of sensitivity of motion detection required. AREA SETUP: Choosing this option allows the operator to define which areas of the image are monitored for motion detection. Green grid squares represent detection areas, blank...
Page 34: Privacy
VT-HDOC Series To quickly select or deselect the entire grid, use Right mouse click to bring up the motion menu. To select or deselect specific areas, use the left mouse click. Clicking on each cell toggles the cell to be enabled or disabled.
Page 35: Configuring Display
VT-HDOC Series are monitored for privacy. Gray grid squares represent privacy areas, blank areas are ignored. The default is that privacy area will be detected across the entire image CONFIGURING DISPLAY To set-up the various display options, Left click on Display icon.
Page 36: Monitor
VT-HDOC Series or auto off after display time. CAMERA TITLE: Determines whether the camera title is displayed. RECORDING MODE ICON: Determines whether the recording status is shown at the top right of each channel display window. BORDER: Determines whether there is a border around each channel in multi screen display mode.
Page 37: Sequence
VT-HDOC Series  OK: press OK button to confirm configured video output. If monitor doesn’t support HD resolution, then configure VGA resolution on HYBRID-DVR. In case HD resolution like 720p/1080p connecting with VGA cable, first connect VGA cable and power on for HYBRID-DVR.
Page 38: Configuring Disk
VT-HDOC Series CONFIGURING DISK HDD related configuration and operation can be configured here 6.3.1 SETUP You can configure DISK operation like Recording Time Limit / Overwrite / HDD Configuration. OVERWRITE: IF you select “ON”, overwrite mode will be activated. RECORDING TIME LIMIT: You can configure the data from current time to configured time (12hr –...
Page 39: Format
VT-HDOC Series  RECORD: You can select HDD as record HDD.  MIRRORING: You can select HDD as mirroring HDD.  S.M.A.R.T: You can view HDD’s current condition  GOOD: It shows current HDD condition is good.  BAD: It shows current HDD condition is bad.
Page 40: Configuring System
VT-HDOC Series  MIRRORING: format all HDD’s selected as MIRRORING. FORMAT: Format the selected HDD type. Device: In HYBRID-DVR, select USB connecting location to format. Device: Select USB processing some USB memory stick and external hard drive cannot be used in HYBRID-DVR, HYBRID-DVR support format function of USB memory stick and external hard drive FORMAT: You can format the USB Device..
Page 41: Management
VT-HDOC Series TIME FORMAT: Determines how the time is displayed. 24 Hour(Default), AM/PM NETWORK TIME SERVER SETUP: If the HYBRID-DVR is connected to the Internet, you can synchronize the time and date with sever. Default Server: pool.ntp.org ADJUST PERIOD (INTERVAL): Configuration synchronize interval with Network Time server.
Page 42 VT-HDOC Series  F/W VERSION: Shows the firmware version of the HYBRID-DVR.  H/W VERSION: Shows the hardware version of the HYBRID-DVR.  UI VERSION : Shows the UI version of the HYBRID-DVR  VIDEO SIGNAL TYPE: The HYBRID-DVR can be selected between PAL and NTSC via a selector ...
Page 43: Audio
VT-HDOC Series DVR. VIDEO STANDARD: You can select Video Signal and selected video signal will be adapted as main value automatically. If you change the video signal, reboot HYBRID-DVR . AUTO LOGIN (PASSWORD): Selects if a password is required ‘ON / OFF’.
Page 44: Alarm Input
VT-HDOC Series 6.5.1 ALARM INPUT Configure Alarm input . OPERATION: You can configure activation when Sensor is triggered.  DISABLE: When Sensor input is triggered, Event is not working.  ENABLE: When Sensor input is triggered, Event is working. TYPE: If the operation is enabled.
Page 45: Buzzer Output Setup
VT-HDOC Series ALARM OUT : You can select Relay to be configure OPERATION: You can configure output status of Relay.  DISABLE: Relay is not working  ENABLE: Relay is working once event is triggered. MODE: You can configure activation of Relay output.
Page 46: E-Mail Setup
VT-HDOC Series MODE: You can configure operation mode of Buzzer output.  TRANSPARENT: Keep buzzer output until event operation has stopped.  LATCHED: Keep buzzer output for the duration time of event. DURATION: You can configure duration time for buzzer output in latched mode.
Page 47: Ptz Preset
VT-HDOC Series 6.5.5 PTZ PRESET PTZ CAMERA: Select the PTZ camera for the following configuration to be applied. OPERATION: You can configure the operation of PTZ Preset, when event is triggered. DISABLE: PTZ preset is not working ENABLE: PTZ preset is working.
Page 48: User Authority
VT-HDOC Series To modify user details, highlight the user with the blue cursor The EDIT screen appears. USER ID: Edit the user ID using the virtual keyboard. (Max 10 characters). PASSWORD: Change the password using the virtual keyboard. (Max 8 characters) Note: To delete the existing password, use the on the virtual keyboard.
Page 49: Log-Out
VT-HDOC Series User authority (except ADMIN) can be selected. Search & Play : Right to enter Search Menu/ Instant Play Copy : Right to enter backup menu PTZ Control: Right to control PTZ’s Power OFF : Right to Power Off unit Camera: Right to see camera screen.
Page 50 VT-HDOC Series...
Page 51: Configuring Record
VT-HDOC Series CONFIGURING RECORD Configure various recording options 6.7.1 SETUP  SIZE: You can select what resolution of video will be recorded as follows.  Resolution: FULL HD(1080p) : 100% : 1920x1080 / 50% : 1920x544 / 25% : 960x544 ...
Page 52: Event
VT-HDOC Series 6.7.2 EVENT MOTION EVENT: You can configure recording condition when motion is triggered. ETC EVENT: You can configure recording condition for Alarm / V-Loss.  FPS: NTSC: You can configure frame rate as 0 / 1 / 2 / 4 / 5 / 8 / 15 /30 in NTSC Mode or 0 / 1 / 2 / 4 / 5 / 7 / 13 / 25 in PAL mode.
Page 53: Panic
VT-HDOC Series DAYLY: You can configure the recording type by an hour and by channel. This mode is for the demand that all days have the same recording schedule regardless of the day of the week. WEEKLY: In this mode, you can configure the recording type by an hour, and by channel and by the day of the week.
Page 54: Misc
VT-HDOC Series SIZE: You can select what resolution of video will be recorded as follows; Resolution: FULL HD(1080p) : 100% : 1920x1080 / 50% : 1920x544 / 25% : 960x544 HD(720p) : 100% : 1280x720 / 50% : 1280x360 / 25% : 640x360 Analog(SDI) : 100% : 944x480 / 50% : 944x240 / 25% : 472x240 ...
Page 55: Configuring Network
VT-HDOC Series SELECT CHANNEL FOR MIRRORING: You can check which channel will be recorded to mirroring HDD.  All: all channel with mirroring record.  Channel 1~16: selected channel to record with mirroring. CONFIGURING NETWORK 6.8.1 IPSETUP DHCP: When selected the HYBRID-DVR will obtain an Ethernet IP address automatically if connected to a DHCP server or router.
Page 56: Ddns
VT-HDOC Series HYBRID-DVR PORT: The port number that the HYBRID-DVR uses to support to the remote software. WEB SERVER PORT: The port number that the HYBRID-DVR uses to support remote connection from Internet Explorer or other web browsers. Using Internet router, If connecting more than one HYBRID-DVR, you should configure service port and web service port differently.
Page 57: Remote
VT-HDOC Series USE DEFAULT SERVER: Selects On or OFF. If you turn Default sever ON, mail will be sent by our own mail server (mail sever). SERVER: The SMTP outbound email server that should be used to send email notifications.
Page 58: Connect To Web Server
VT-HDOC Series Minimum Recommended Operating System Windows XP Windows 7 Core2Duo @2.53GHz or Equivalent Core i5 @3.3GHz or Higher Memory 1 GB 2 GB Video Card Memory 512MB 512MB HDD Capacity 50MB VGA Resolution 1280x1024x16 1920x1080x32 Direct-X DirectX 7.0 DirectX 9.0c...
Page 59: Web Configuration Page
VT-HDOC Series 1: Enter the IP address of your On Cue HYBRID-DVR. If you don’t use the default port number of HTTP, 80, you may add the port number following the IP address. Ex. http://192.168.123.63:80 2: Input the administrator’s password beside of the ‘ADMIN PASSWORD’. Only administrator can log in for the On Cue HYBRID-DVR configuration.
Page 60 VT-HDOC Series 7.1.2.1 Initial Page of Web Configuration 1: Log out from the configuration page 2: version number of this web configuration 3: Top menu of On Cue HYBRID-DVR 4: Sub menu of On Cue HYBRID-DVR 5: Setting or Information section...
Page 61: Web Viewer (Active-X)
VT-HDOC Series Live View, Search, Playback & Copy functions are not supported from the web server. To user these, please use the ‘Web Viewer’ instead. 7.1.3 WEB VIEWER (Active-X) Through the ‘Web Viewer’, you can see the live, search and playback of recordings in the DVR and copy the recordings from the On Cue HYBRID-DVR.
Page 62 VT-HDOC Series ‘Searching’ shows the results such as below. Click the ‘ADD TO CHROME’ and then you can see the IE symbol on the right side of URL Bar There are two ways to execute the ‘Web Viewer’ from the Chrome.
Page 63 VT-HDOC Series Select the ‘Open Link in IE TAB’. ActiveX First execution will install the ActiveX plug-in. And the application will be executed if installed already. 7.1.3.2 Initial Screen of Web Viewer Executing the ‘Web Viewer’ opens the application in a separated window from the web browser and display the login window (see image below) 7.1.3.3 Log In...
Page 64 VT-HDOC Series : Enter the password for the selected user. The user authority functions (live view, search & playback, PTZ control, etc.), are controlled by the USER AUTHORITY settings in the DVR menu. USER ID and Password are case-sensitive. 7.1.3.4 Live Preview After login, the live preview screen will be shown such (see below).
Page 65 VT-HDOC Series : Maximize the window  : Exit the ‘Web Viewer’  4: Reconnect/Live & Search / Full Screen : Log out and Reconnect : Switching between the live and search & playback : Full screen video view. Press ‘ESC’ to return to the window : Set the default save location for JPEG/AVI 5: Date &...
Page 66 VT-HDOC Series Save to JPEG File: Save the current view of the selected channel with the colored border to the PC as a JPEG file. PTZ Control : Open the PTZ control panel, which controls the PTZ camera of the selected channel.
Page 67 VT-HDOC Series HD SDI DVR   Level 1: 720p : 320x180 / 1080p : 480x270  Level 2: 720p : 640x180 / 1080p : 960x270  Level 3: 720p : 640x360 / 1080p : 960x540  Level 4: 720p : 1280x360 / 1080p : 1920x540...
Page 68 VT-HDOC Series : Quad split view  3: Playback speed control : Reverse Fast  : Reverse Slow  : Reverse Normal Speed  : Pause  : Forward Normal Speed  : Forward Slow  : Forward Fast ...
Page 69 VT-HDOC Series 7: Calendar Panel: Select between RECORD (main HDD) and MIRROR (if setup) Year and Month. The green color indicates that recorded data exists. Clicking the date will trigger the search of the selected day. The search results are displayed on the time selection table (10).
Page 70 VT-HDOC Series Right click on the minute bar will show the pop-up  menu : Taking the ‘COPY START TIME’ from the selected time cell and input it  into the ‘From’ of COPY control panel. : Taking the ‘COPY END TIME’ from the selected time cell and input it ...
Page 71: On Cue Viewer Android / Ios
VT-HDOC Series Research: execute the event search again  10: Time selection & recording indication table / Event search result window 11: display the playback video as a result of searching. 12: show the current playback mode, speed and direction.
Page 72 VT-HDOC Series Followed by the main screen 7.2.1.1 New Connection Click on New tab...
Page 73 VT-HDOC Series Input you On Cue HYBRID-DVR information and click Save On Cue HYBRID-DVR Address : You need to input IP Address Port Number : You need to input On Cue HYBRID-DVR port number that you configured at Network menu at ON Cue HYBRID-DVR.
Page 74: How To Connect
VT-HDOC Series Delete : You can delete list currently stored. Connect : You can connect one of List already stored. DVR Admin : You can connect to Web menu of On Cue HYBRID-DVR ( it will be supported in next firmware) after selection one of On Cue HYBRID-DVR in the List.
Page 75 VT-HDOC Series 7.2.1.5 PTZ Control / Capture Image PTZ camera can be control using by using the control as shown below: Select the GOTO Allows the camera to move to the selected preset CAPTURE - Will capture an image and save under your photos Exit 7.2.1.6 Net Configuration Adjustments...
Page 76 VT-HDOC Series 7.2.1.7 How to Search/Play Video Search/Play tab, you will be able to select the day of interest After selecting the day you will be able to select the hour (00~24)
Page 77 VT-HDOC Series Now you will be able to select the minutes (00~59) You will be able to see playback (one channel)
Page 78: Ddns Server
VT-HDOC Series Return to the previous page Reverse Play – Speed can be selected 2, 4, 8, 16, 32, 64. Reverse Slow playback Pause Fast Forward Slow Play Fast Forward – Speed can be selected 2, 4, 8, 16, 32, 64 7.2.1.8 Disconnect...
Page 79: Register
VT-HDOC Series ANDROID VIEWER: You can download Android Viewer ( iPocketViewer ). DDNS SERVER: Press the DDNS Server link to go to the DDNS server page. LOGIN ID: Input USER ID. PASSWORD: Input Password. Logon: Press Log-in button to log-in Register: You can create user account.
Page 80: Input On Cue Hybrid-Dvr Information
VT-HDOC Series 7.3.3 Input On Cue HYBRID-DVR information. You need to register domain name to get the service and input MAC address into DDNS server. 1 : List number of registered On Cue HYBRID-DVR 2 : Mac address of registered On Cue HYBRID-DVR 3 : Domain name of registered On Cue HYBRID-DVR.
Page 81: Installation
VT-HDOC Series Memory 1 GB 2 GB Video Card Memory 512MB 512MB HDD Capacity 50MB VGA Resolution 1280x1024x16 1920x1080x32 Direct-X DirectX 7.0 DirectX 9.0c Network Ethernet 10/100B-TX 7.4.1 INSTALLATION You can install the ‘DVR Manager’ using the ‘setup’ program which is provided on the CD.
Page 82: Execution
VT-HDOC Series 7.4.2 EXECUTION After installing the program successfully, a shortcut named ‘OnCue Viewer’ will be created. Clicking this icon executes the OnCue Viewer. : Shortcut and icon of On Cue Viewer 7.4.3 LIVE VIDEO MONITORING The initial window of On Cue viewer is composed of the picture below.
Page 83: Connection Manager
VT-HDOC Series  FOLDER SELECT: Choose or make the folder for the data to be copied to.  SAVE: Apply and save the current modification.  CLOSE: exit the ‘Config’ pop-up. 4 : SPLIT MODE SELECTION: choose the number of cameras which will be shown in the live preview window.
Page 84: Live Video Window
VT-HDOC Series  MAC Address :show the MAC address of detected DVRs  IP Address: shows the IP addresses of detected DVRs  PORT : shows the DVR PORT numbers of the detected DVRs  DVR Name: show the DVR name. This is the same as the ‘SYSTEM NAME’ under the ‘MANAGEMENT’...
Page 85 VT-HDOC Series 7.4.5.2 Swap Camera Position You can swap the display location of selected cameras by dragging and dropping. The swapped camera position will go back to the original location in case that the On Cue HYBRID-DVR manager restarts or the connection is re-established.
Page 86 VT-HDOC Series 7.4.5.4 JPEG Snapshot/ PTZ control / Video Configuration /Live Audio You can save live video as JPEG file, control the PTZ of camera, hear the audio from the DVR, and you can configure the live video directly from the viewer.
Page 87: Dvr List
VT-HDOC Series 1: Camera Channel number which is currently selected. PRESET OPERATION OF PTZ ZOOM/FOCUS/IRIS CONTROL DIRECTION CONTROL (PAN & TILT) : You can hear the audio from the selected camera. 7.4.5.5 DVR List The ‘DVR List’ shows the DVRs registered using the ‘CONNECTION MANAGER’. On the DVR List panel, you can connect/disconnect the DVR, execute the Player for the remote searching and playback, and see the status information of DVR.
Page 88: Player
VT-HDOC Series  CONNECT: Connect to the selected DVR  DISCONNECT: Disconnect the selected DVR  RUN PLAYER : Execute the Player for the remote search & playback 7.4.5.6 On Cue HYBRID-DVR Information This panel shows some information of On Cue HYBRID-DVR which is currently highlighted from the DVR List.
Page 89: Live Preview
VT-HDOC Series 7.4.6.2 Log In : Enter the USER name of On Cue HYBRID-DVR registered in the On Cue HYBRID-DVR : Enter the password for the selected user. The user authority and allowed functions, live preview, search & playback, PTZ control and etc., are controlled...
Page 90 VT-HDOC Series The colored rectangle around video shows the currently selected camera 1: Application Title 2: Display split mode selection  : Single camera view  : Quad split view  : 8 Way View  : 16 Way View 3: WEB Viewer Minimize/Maximize/Close ...
Page 91 VT-HDOC Series 7.4.6.4 Search & Playback Toggles between the search & playback window Features User log-in/out feature (RECONNECT) Swiching between the live preview and the search & playback Search & Playback Copy the recordings from the DVR to the PC remotely 1: Application title 2: Split mode selection.
Page 92 VT-HDOC Series  : Forward Normal Speed  : Forward Slow  : Forward Fast Steps for fast playback : x2, x4, x8, x16,x30, x60, x120 Steps for slow playback : 1/2, 1/4, 1/8, 1/16, 1/30, 1/60, 1/120 4: Fast Playback Speed & Direction Control Bar ...
Page 93 VT-HDOC Series  Copy Start: Begins the copy operation TAG name and Channel have to be defined before user can copy. 9 : Choose search type between ‘EVENT’ and ‘TIME’. The time selection table tagged ‘10’ in the above picture is used for one of this two search type ...
Page 94 VT-HDOC Series  Event Type(Search Condition) All: For all kinds of recording event  Sensor: sensor input event   Video Loss: lost video event  Motion Detection : motion detection event  CH ALL: Searching for all channels ...
Page 95 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
Page 96 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...

This manual is also suitable for:

Vt-hdoce series Vt-hdoc4 Vt-hdoc8 Vt-hdoc16
