P/N 35010032-A
TM
ZR44 HI-MASS
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JEM ZR44 HI-MASS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin JEM ZR44 HI-MASS

Summary of Contents for Martin JEM ZR44 HI-MASS

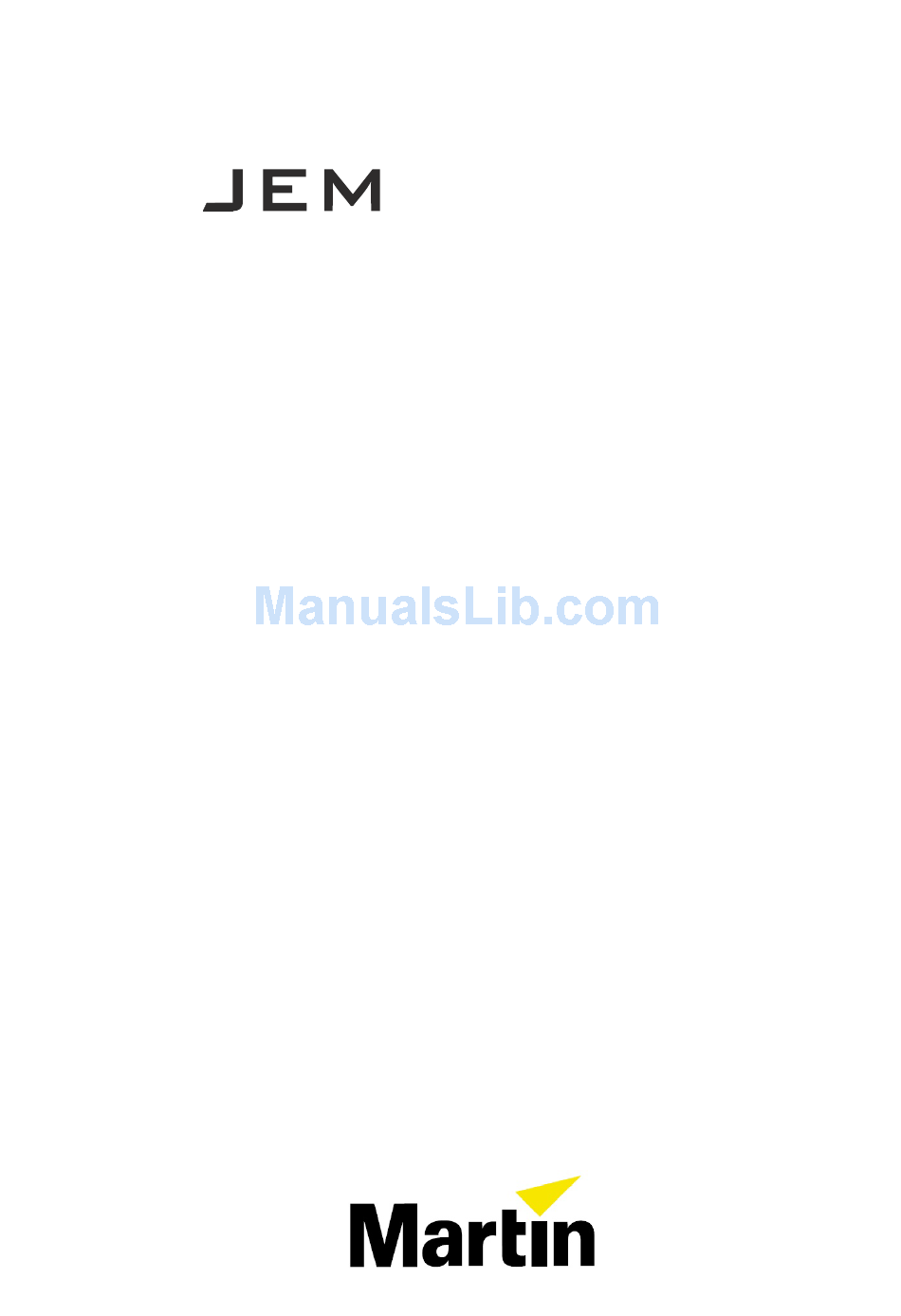

  • Page 1 P/N 35010032-A ZR44 HI-MASS user manual...

  • Page 2: Table Of Contents

    Safety information ........................3 Product overview ........................6 Product description ........................ 6 Features at a glance ......................6 Quick Start ..........................7 Setting up ..........................7 Making fog ..........................7 Installation and setting up ......................8 Location ..........................8 AC power ..........................8 Setting up ..........................

  • Page 3: Safety Information

    If the machine or any cables connected to it are in any way damaged, defective, wet, or show signs of overheating, stop using the machine and contact Martin Service for assistance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or it’s service agent.
  • Page 4 • Do not remove the covers or attempt to repair a faulty machine. Refer any service not described in this manual to Martin. • Do not operate the machine if any parts are damaged, defective or missing. • Moisture and electricity do not mix. Do not aim smoke output at electrical connections or devices.
  • Page 5 P r e v e n t i n g b r e a t h i n g p r o b l e m s • A smoke machine can operate safely only with the smoke fluid it is designed for.

  • Page 6: Product Overview

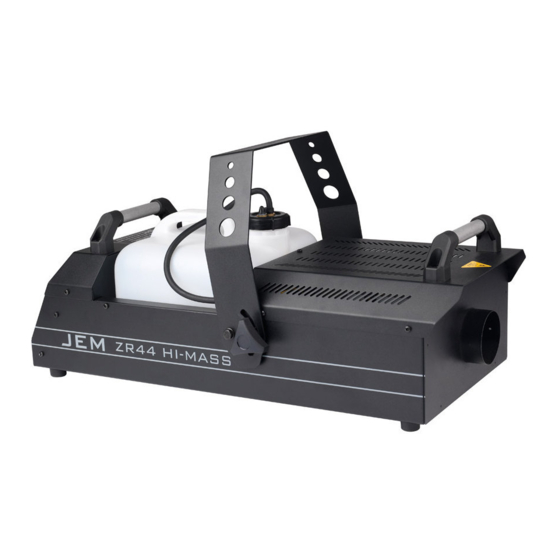

    P r o d u c t d e s c r i p t i o n The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from...

  • Page 7: Quick Start

    S e t t i n g u p Locate the machine in a suitably large area with nothing in front of the smoke output. Fill the fluid tank with MARTIN-approved fluid (see page 13). Connect a suitably rated power supply to the machine. The power requirements are: 8.21A at 230V (EU)

  • Page 8: Installation And Setting Up

    14.58A at 120V (US) Check that the local AC voltage is appropriate, as indicated on the machine’s serial number label. If your AC voltage is outside the appropriate range, do not use the machine. Contact Martin Service for assistance. Installation and setting up...

  • Page 9: Setting Up

    3 • the smoke fluid is one of the genuine Martin fluids listed under “Smoke fluid options” on page 13 • the machine is electrically grounded (earthed) •...

  • Page 10: Control Settings

    Control settings O v e r v i e w The unit is controlled using the remote control. You can control it in these ways: • Manual firing by holding down the FOG button • Automatic fog bursts using a repeating timer M a n u a l f i r i n g Hold down the FOG button.

  • Page 11: Dmx Control

    Data + (“Hot”) For best results, use cable designed for high speed digital data transmission. Suitable DMX cable is available from your Martin dealer. D M X f u n c t i o n s The smoke machine operates from a single DMX channel which gives proportional control of fog density from 0-100%.

  • Page 12: Setting The Dmx Address

    S e t t i n g t h e D M X a d d r e s s Each unit on a DMX system must be allocated an address so that the DMX controller can send separate commands to the unit. On the smoke machine, the DMX address is set using the bank of switches (“dip switches”) on the back panel next to the DMX connectors.

  • Page 13: Fog Fluid Types

    Fog fluid types The following types of Martin/Jem fog fluid are suitable for use in this machine. Each produces a different effect as described below. Martin supplies high quality fog fluids that are based on ultra-pure deionized water. Use only the following genuine Martin/Jem fog fluids.

  • Page 14: Basic Service

    Remove the spent fuse and replace with one of exactly the same size and rating. The fuse type is indicated below. Contact Martin Service if the fuse blows repeatedly. 120V = 20AT...

  • Page 15: Troubleshooting

    Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait 10 to 15 minutes temperature Machine will not produce fog Ensure mains power switch Machine not powered up or when remote control Fog on, enable heaters by heaters disabled button pressed pressing FOG Output level control set to...

  • Page 16: Specifications

    Specifications Physical Length: 685 mm (27.0 in.) Width: 345 mm (13.6 in.) Height: 225 mm (8.9 in.) Dry weight: 19 kg (41.9 lbs.) Performance Max. fog output (approx.): 1200 m Max. operating time at full output (approx.) Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 7.5 minutes Control and Programming Control options: Onboard analogue remote control (Supplied), Multi-Function...
  • Page 17 Drip tray ..................... P/N 92620011 O r d e r i n g i n f o r m a t i o n Jem ZR44 Hi-Mass™ smoke machine 120V ........P/N 92215310 Jem ZR44 Hi-Mass™ smoke machine 230V ........P/N 92215300...
  • Page 18 Notes Notes...
  • Page 20 Martin Professional A/S,Olof Palmes Allé 18, DK-8200,Aarhus N Phone: +45 87 40 00 00 Internet: www.martin.com...
