Summary of Contents for Martin JEM Compact Hazer Pro

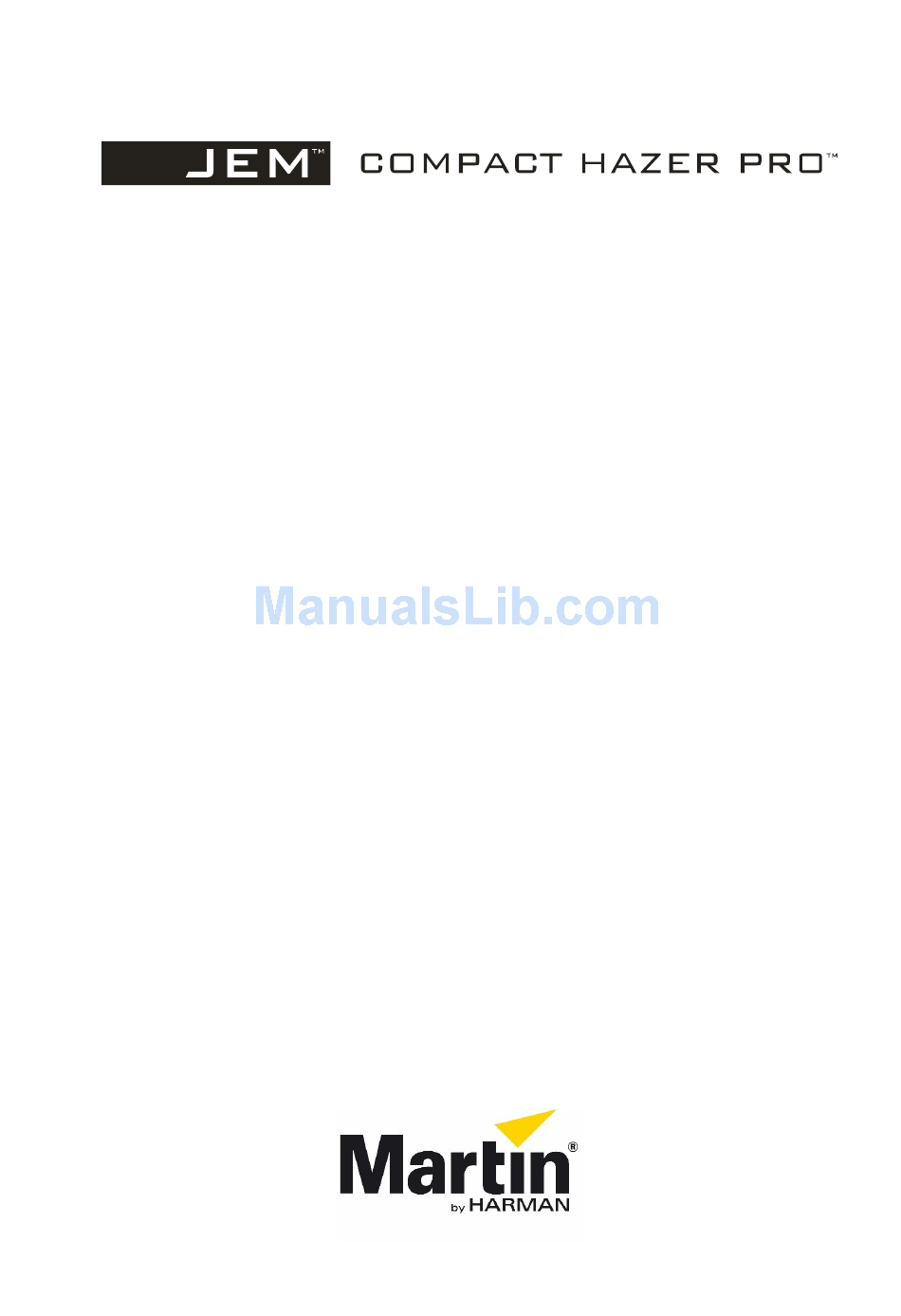

- Page 1 READ AND SAVE THESE INSTRUCTIONS P/N 35010033-B user manual...
-
Page 2: Dimensions/Legal
JEM™ are registered trademarks of ® ©2016 HARMAN Professional Denmark ApS. All rights reserved. Martin HARMAN Professional Denmark ApS registered in the United States and/or other countries. Features, specifications, and appearance are subject to change without notice. -
Page 3: Table Of Contents
DMX functions ........................17 Approved Haze fluids....................... 19 Basic service ..........................20 Cleaning ..........................20 Martin Pro-Clean and Storage Fluid ..................20 Fuse replacement ........................ 21 Troubleshooting ........................22 Status messages ........................23 Resetting the machine after fluid out ................... 23 Technical Specifications ...................... -
Page 4: Safety Information
If the machine or any cables connected to it are in any way damaged, defective, wet, or show signs of overheating, stop using the machine and contact Martin Service and Support for assistance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. - Page 5 Do not remove the covers or attempt to repair a faulty machine. Refer any service not described in this manual to Martin Service and Support. Do not operate the machine if any parts are damaged, defective or missing.
- Page 6 Do not point haze output directly at a person’s face or at face height. For the latest user documentation and other information for this and all Martin products, please visit the Martin website at http://www.martin.com If you have any questions about how to install, operate or service the fixture safely, please contact your Martin distributor, dealer or contact Martin Service and Support.
-
Page 7: Product Overview
TV studios, clubs, bars, cruise ships, theme parks and more. Robust yet small and lightweight, the JEM Compact Hazer Pro is capable of dispersing an even, continuous haze with superior optical clarity and reflectivity, the perfect small-particle haze for highlighting today’s highly defined light beams. -
Page 8: Product Details
P r o d u c t d e t a i l s Shutdown switch AVR socket Digital remote Control socket Mains power switch Power inlet connector 5-pin DMX in/out Digital Control Panel Fluid Reservoir Haze output port Warning, high temperature vapour and surfaces! Product overview... -
Page 9: Quick Start
Quick Start You are no doubt eager to switch on the machine and try it out by making a lot of haze. This section tells you how to do that. However, please also make the time to read the safety and servicing instructions in the remainder of this manual. S e t t i n g u p Locate the machine in a suitably large area with nothing in front of the haze output. -
Page 10: Installation And Setting Up
“Safety information” on page 4. L o c a t i o n The JEM Compact Hazer Pro is designed to be located on the floor or may be suspended using the optional flying bracket. If suspending the machine, a hanging bracket (optionally available from Martin) should be attached to the machine’s flying bracket with an M12 bolt and nyloc nut. -
Page 11: Setting Up
4. the haze fluid is one of the genuine Martin fluids listed under “Approved Haze fluid” on page 19. the machine is electrically grounded (earthed) ... -
Page 12: Control Settings
Control settings O v e r v i e w The digital control panel in the center of the top panel allows you to configure the machine using option menus. Digital display Menu previous/next Value down/up buttons buttons Enter/store button The machine is factory set so the lower of the ‘Value down/up’... -
Page 13: Setting The Timer
Use the Up/Down buttons to select the fan speed from – . Press the Enter button to store the fan setting. The fan will run continuously if set above 0% and the RUN menu is set to FAN, TIME or CONT. If haze is being produced and the fan is off or set to a low speed, the fan speed will be automatically increased to prevent build-up of haze at the machine output. -
Page 14: Alt Option
Use the Previous / Next buttons to select the option. Use the Up/Down buttons to select (slave unit) or (master unit). Press the Enter button to store the link setting. The machine should be set to only if it is running as a master. If running as a slave, stand-alone or DMX controlled it should be set to . - Page 15 Control settings...
-
Page 16: Optional Digital Remote Control
3-pin XLR socket on the rear panel of the JEM Compact Hazer Pro. The remote control is powered through its cable by the JEM Compact Hazer Pro; no batteries are required. -
Page 17: Dmx Control
13. The JEM Compact Hazer Pro requires 3 DMX channels. For example if the JEM Compact Hazer Pro is set to DMX address 100, channel 1 will be controlled by address 100, channel 2 will be controlled by address 101 and channel 3 by address 102. - Page 18 Channel 1 DMX value Function Macro description Default range value Haze 0-19 Idle range None output 20-29 Haze 5% Level 30-39 Haze 10% …….. ……. 210 -255 Haze 100% Channel 2 DMX value Function Macro description Default range value Fan output 0-19 Idle range None...
-
Page 19: Approved Haze Fluids
JEM C-Plus Haze Fluid is a water-based haze fluid formula that is specifically designed for use in the JEM Hazer Pro and JEM Compact Hazer Pro. JEM C- Plus Haze Fluid is a dense molecular formula that produces very fine haze particles, specially designed to emphasize beam and mid-air light effects, projections and lasers. -
Page 20: Basic Service
C l e a n i n g a n d P r e v e n t a t i v e M a i n t e n a n c e P r o c e d u r e : Use Martin Pro Clean and Storage Fluid after every 200 hours of operation or monthly depending on usage and duty cycle. -
Page 21: Fuse Replacement
Remove the spent fuse and replace with one of exactly the same size and rating. The fuse type is indicated below. Contact Martin Service and Support if the fuse blows repeatedly. -
Page 22: Troubleshooting
Troubleshooting Problem Probable cause(s) Suggested remedy Wait until message Machine not at operating temperature no longer shown Machine will not produce set to 0 Increase setting haze when control panel set to RUN or remote control set to 0 Increase setting Haze switch turned on... -
Page 23: Status Messages
The heater is in run mode and is producing haze. The machine has detected an error with its calibration settings and will not operate. Call Martin Service and Support. The machine has detected an error in the temperature ... -
Page 24: Technical Specifications
Technical Specifications P h ys i c a l Length .................... 532 mm (21 in.) Width ..................... 224 mm (8.9 in.) Height ..................... 278 mm (11 in.) Height with hanging kit ..............296 mm (11.7 in.) Weight, dry ..................8.5 kg (18.8 lb.) Weight, filled .................. - Page 25 Canada Safety ..............CSA C22.2 No 104-01 “Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical Haze with the JEM Compact Hazer Pro and JEM C-Plus Haze Fluid.”...
- Page 26 Specifications subject to change without notice. For the latest product specifications, see www.martin.com Technical Specifications...
- Page 27 Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products. Technical Specifications...
-
Page 28: Notes
Notes Notes... - Page 29 Notes...
- Page 30 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax: +45 8740 0010...
