Summary of Contents for Martin Magnum 850

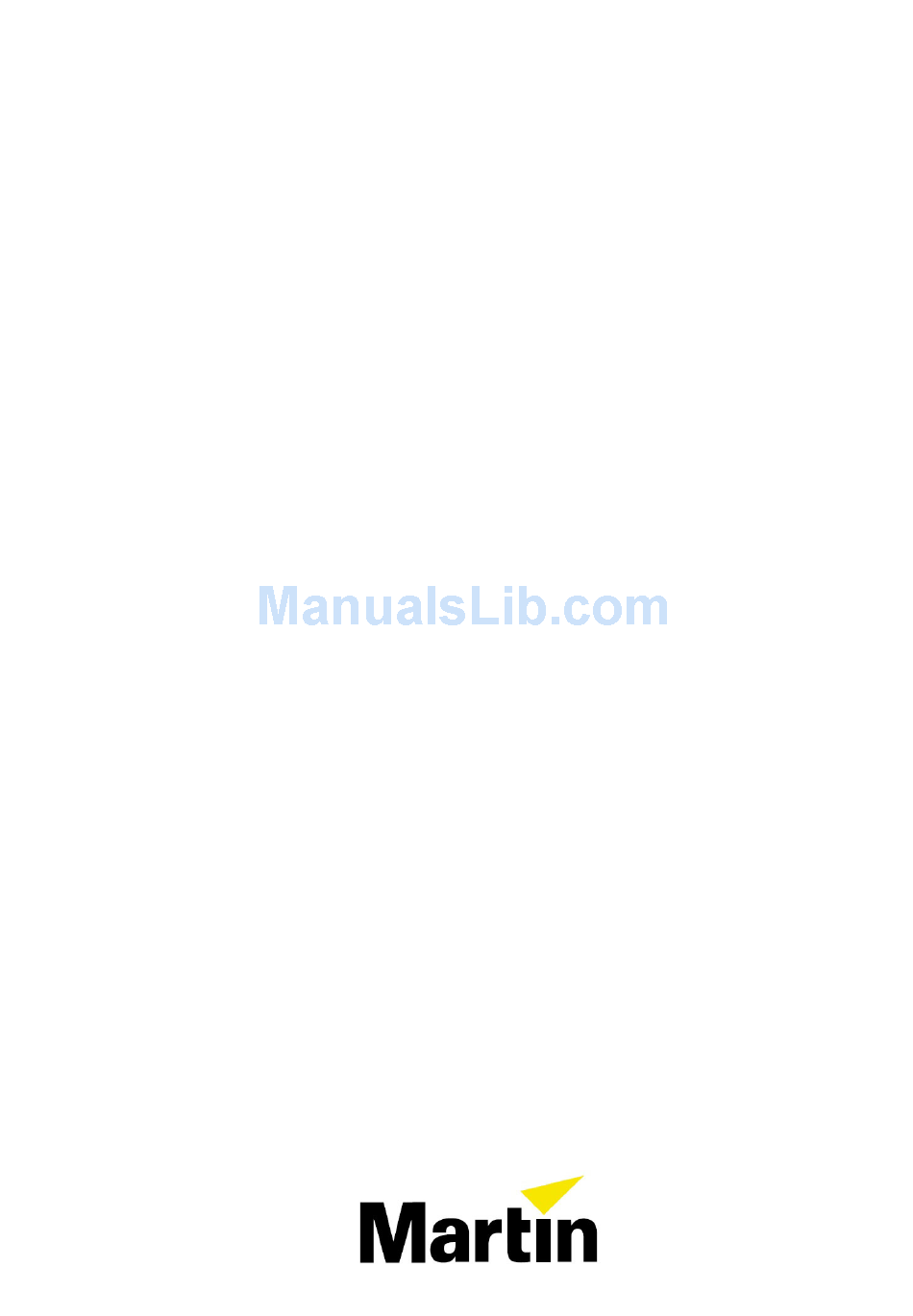

- Page 1 P/N 35010029-D Magnum 650 Magnum 850 user manual...
-
Page 2: Table Of Contents
Priming the machine after fluid out ..................13 What the status lights mean....................13 Optional accessories ....................... 14 Timer remote (Magnum 850 only) ..................14 Manual firing ........................14 Setting fog output level ......................15 Setting the Automatic Timer ....................15 Setting the “one-shot”... -
Page 3: Safety Information
Do not spill fluid over or inside the machine. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, take the system out of service and contact Martin for advice. •... - Page 4 • Do not operate the machine if any parts are damaged, defective or missing. • Moisture and electricity do not mix. Do not aim smoke output at electrical connections or devices. • If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
- Page 5 • Smoke fluid contains food-grade glycols in solution but may present health risks if swallowed. Do not drink it. Store it securely. If eye contact occurs, rinse with water. If fluid is swallowed, give water and obtain medical advice. P r e v e n t i n g b r e a t h i n g p r o b l e m s •...
-
Page 6: Product Overview
The Magnum 650 delivers a heavy punch of fog. It’s tough and rugged enough to meet the demand of mobile discos and parties. The Magnum 850 is a higher power fogger suitable for larger venues or night clubs. This manual contains instructions for both the Magnum 650 and Magnum 850 machines. -
Page 7: Product Details - Magnum 650
P r o d u c t d e t a i l s – M a g n u m 6 5 0 Carry handle Power switch Fluid container Remote cable Fluid level viewer Power inlet plug and mains fuse Smoke output nozzle WARNING HIGH... -
Page 8: Product Details - Magnum 850Quick Start
P r o d u c t d e t a i l s – M a g n u m 8 5 0 Heat (Red) / Ready (Green) indicators Remote / machine link sockets (Magnum 850 only) Main power switch Fluid container Power inlet... -
Page 9: Quick Start
If using the Magnum 850 connect the remote control to the REMOTE IN connector on the rear panel. The remote control is permanently connected to the Magnum 650. Turn on the power switch. The red Heat indicator on the remote and the top of the unit will light. -
Page 10: Installation And Setting Up
Magnum 650: 2.66A at 230V (EU) or 6.1A at 120V (US) Magnum 850: 3.4A at 230V (EU) or 6.6A at 120V (US) Check that the local AC voltage is appropriate, as indicated on the machine’s serial number label. If your AC voltage is outside the appropriate range, do not use the machine. -
Page 11: Setting Up
S e t t i n g u p Fill the fluid container with MARTIN-approved fluid (see page 17). If using the Magnum 850 connect the remote control to the REMOTE IN connector on the rear panel. The remote control is permanently connected to the Magnum 650. -
Page 12: Final Checks
3 • the smoke fluid is one of the genuine Martin fluids listed under “Smoke fluid options” on page 14 • the machine is electrically grounded (earthed) •... -
Page 13: Priming The Machine After Fluid Out
P r i m i n g t h e m a c h i n e a f t e r f l u i d o u t If the machine runs out of fluid it may not pump properly after refilling the fluid due to airlocks in the fluid pipework. -
Page 14: Optional Accessories
Optional accessories (Magnum 850 only) T i m e r r e m o t e The timer remote is an optional accessory for the Magnum 850. Output level / timer programming knob Machine ready to fog Machine heating light... -
Page 15: Setting Fog Output Level
3. Press the TIMER SET button once. The ON light will come on and the OFF light will flash. 4. Turn the knob fully right to where “OS” (“One Shot”) is marked. 5. Press the TIMER SET button once more. Optional accessories (Magnum 850 only) -
Page 16: Disabling Timer Mode
Timer is running, currently in Off/Wait period “ON” lit Timer is running, currently in On/Run period “ON” flashing The timer “ON” time is currently being programmed “ON” lit, “OFF” The timer “OFF” time is currently being programmed flashing Optional accessories (Magnum 850 only) -
Page 17: Fog Fluid Types
Fog fluid types The following types of Martin/Jem fog fluid are suitable for use in this machine. Each produces a different effect as described below. Martin supplies high quality fog fluids that are based on ultra-pure deionized water. Use only the following genuine Martin/Jem fog fluids. -
Page 18: Basic Service
F u s e r e p l a c e m e n t The main fuse for the Magnum 850 smoke machine is located on the electronics board inside the unit. The fuse for the Magnum 650 is located in a tray on the mains connector. -
Page 19: Troubleshooting
Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait 10 to 15 minutes Machine will not produce fog temperature when remote control Fog Ensure mains power switch button pressed Machine not powered up on and AC power is OK Smoke output is weak Machine requires priming Prime machine (page 13) -
Page 20: Specifications
Specifications M a g n u m 6 5 0 M a g n u m 8 5 0 P h ys i c a l Length ..............293mm......450mm Width ..............216mm......205mm Height..............170mm......244mm Dry weight .............. 8.2Kg....... 9.9Kg P e r f o r m a n c e Effect coverage .......... - Page 21 O r d e r i n g i n f o r m a t i o n Martin Magnum 650 smoke machine 120V ........P/N 92228810 Martin Magnum 650 smoke machine 230V ........P/N 92228811 Martin Magnum 850 smoke machine 120V ........P/N 92229110 Martin Magnum 850 smoke machine 230V ........P/N 92229111 Martin Magnum 850 remote control ..........P/N 92765030...
